Geberit Duofix Universal Urinal Frame for Spray Head 500mm W x 1120 - 1300mm H - Blue Geberit Duofix Universal Urinal Frame for Spray Head 500mm W x 1120 - 1300mm H - Blue
Geberit Duofix Universal Urinal Frame for Spray Head 500mm W x 1120 - 1300mm H - Blue Geberit Duofix Universal Urinal Frame for Spray Head 500mm W x 1120 - 1300mm H - Blue

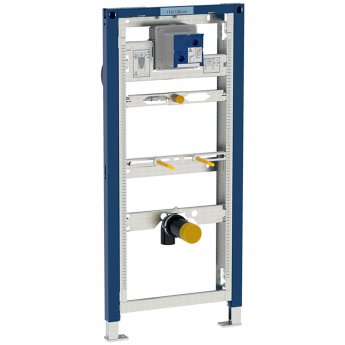

Geberit Duofix Universal Urinal Frame for Spray Head 500mm W x 1120 - 1300mm H - Blue

Quick Code: 2835867
Ref: GB111676001
Geberit
£369.95 Inc. VAT

Special offer - available at a new lower price for a limited time

Was: £

PayPal Credit
Spread the cost with 12 monthly payments of £30.83 at 0% APR using PayPal.

Out of Stock

We don't know when this product will be available again. Please contact our sales team to discuss alternative products.

Free Delivery Available

Delivery postcode restrictions apply

Check

Product Features

  • Suitable to be used with urinals and built-in flushing valves
  • Galvanized feet
  • Rotatable foot plates, Non-slip leg supports
  • Flush hose can be bent,Feet adjustable 0-20 cm
  • Self-supporting frame, powder-coated,Premounted stop valve with throttle
  • Urinal fasteners M8 width- and height-adjustable
  • Flush hose with guide to prevent standing water
  • With built-in conduit pipe to rinse the pipeline
  • Elbow connector can be mounted without tools
  • Connection positions for Preda urinal prepared
  • Element height adjustable to urinal, 112-130 cm
  • Terminal for electrical connection in concealed housing
  • Crossbars with centring marks, adjustable without tools
  • Fastening for inlet Rp 1/2", adjustable in height and sideways
  • Markings for connection positions of Preda and Selva urinals
  • Universal concealed housing for Geberit urinal flush controls
  • Water supply connection on the right, on the concealed housing
  • Water supply connection compatible with MasterFix and MeplaFix
  • Fastening for connection bend, height-adjustable and soundabsorbing
  • Frame with 9mm drilling holes for fastening in wood frame construction
  • Protection box for service opening 10.5 x 10.5 cm can be cut to length without tools
  • Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
  • Supplied with a 1 year guarantee from the manufacturer
Show More

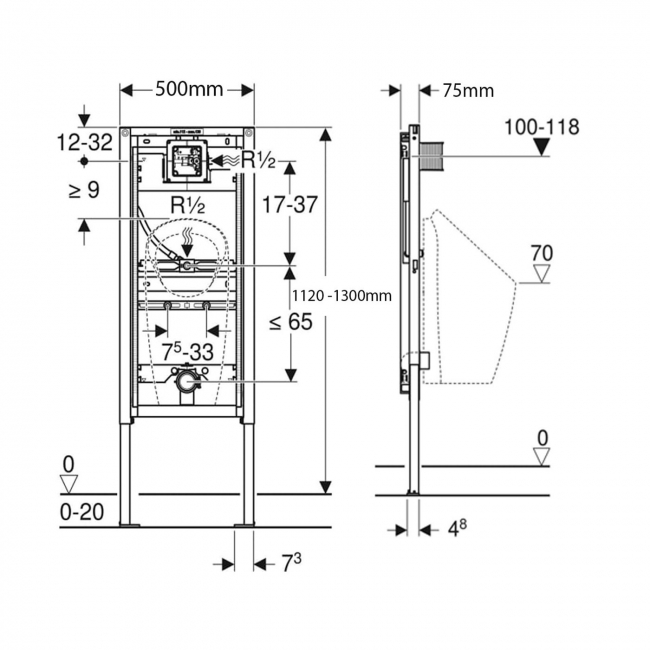

Wall Hung Frame TypeUrinal
Frame Height1120-1300mm
Frame Width500mm
Frame Depth75mm
MountingWall
MaterialSteel
ColourBlue
BrandGeberit
CollectionDuofix
StyleModern
MarketDomestic
EAN Barcode4025416537403
Manufacturer Part Number(s)111.676.00.1
Show More

Duofix Brochure
Type : PDF Size : 1.15 MB
Product Datasheet
Type : PDF Size : 118.51 KB
Fitting Instructions
Type : PDF Size : 2.28 MB
