Geberit Duofix 820mm Wall Hung WC Toilet Frame With 120mm Omega Cistern Blue

Quick Code: 2788191
Ref: GB111004003
Geberit
£355.95 Inc. VAT

Special offer - available at a new lower price for a limited time

Was: £

PayPal Credit
Spread the cost with 12 monthly payments of £29.66 at 0% APR using PayPal.

In Stock

Usually delivered within 3 working days

Free Delivery Available

Delivery postcode restrictions apply

Check

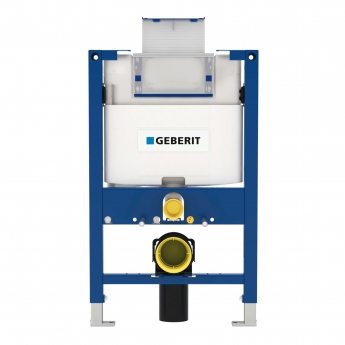

The Geberit Duofix Omega H82 is a pre-plumbed WC frame that provides the flexibility to install the WC in small or awkwardly shaped bathrooms, with a low installation height of 82cm. Depending on the construction situation, the flush plate can be attached to the top or front of the cistern, with no special tools required to install the cistern or the flush plate. This ensures that fitting time and disruption are kept to an absolute minimum on all projects.

Product Features

  • Flush plate sold separately, (See the You May Need)
  • For installation in part or full height room installations
  • Galvanized feet
  • Non-slip leg supports
  • Rotatable foot plates
  • Feet adjustable 0-20 cm
  • Power & Connect Box mountable
  • Self-supporting frame, powder-coated
  • Fastening option for electrical connection

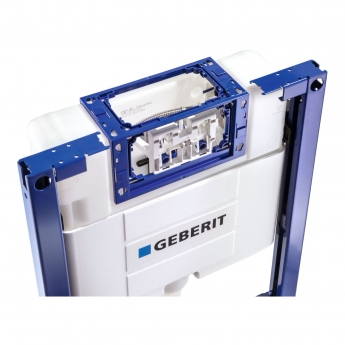

  • Concealed cistern with top or front actuation
  • Water supply connection on the left or rear left
  • Fastening for connection bend, sound-absorbing
  • Immediate post flush possible with factory setting
  • Concealed cistern, fully insulated against condensation
  • Protection box for service opening can be cut to length
  • Tool-free installation and maintenance work on concealed cistern
  • Frame with 9mm drilling holes for fastening in wood frame construction
  • Cistern fulfils standard requirements in accordance with EN 14055, Class II
  • Protection cover box for service opening protects against moisture and dirt
  • With conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
  • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
  • Connection bend can be mounted without tools at different depths, adjustable range 45 mm
  • Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
  • Supplied with a 1 year guarantee from the manufacturer
Show More

Flush TypeDual Flush
Flow Pressure0.1-10 Bar
Width500mm
Height820mm
Cistern IncludedYes
MaterialSteel
FinishBlue
CollectionDuofix
StyleContemporary
EAN Barcode4025410076373
Manufacturer Part Number111.004.00.3
Show More

Duofix Brochure
Type : PDF Size : 1.15 MB
Fitting Instructions
Type : PDF Size : 4.44 MB
Product Datasheet
Type : PDF Size : 141.04 KB

Required Flush Pipe

Geberit Connection Set 300mm For Wall Hung Hung WC
Geberit Connection Set 300mm For Wall Hung Hung WC
(GB152441461)
£57.95
In Stock

Suitable Flush Plate Omega20

Geberit Omega20 Dual Flush Plate Black/Gloss Chrome
(GB115085KM1)
£109.95
In Stock
Geberit Omega20 Dual Flush Plate Polished Chrome
(GB115085KH1)
£121.95
In Stock
Geberit Omega20 Dual Flush Plate White/Gloss Chrome
(GB115085KJ1)
£100.95
In Stock

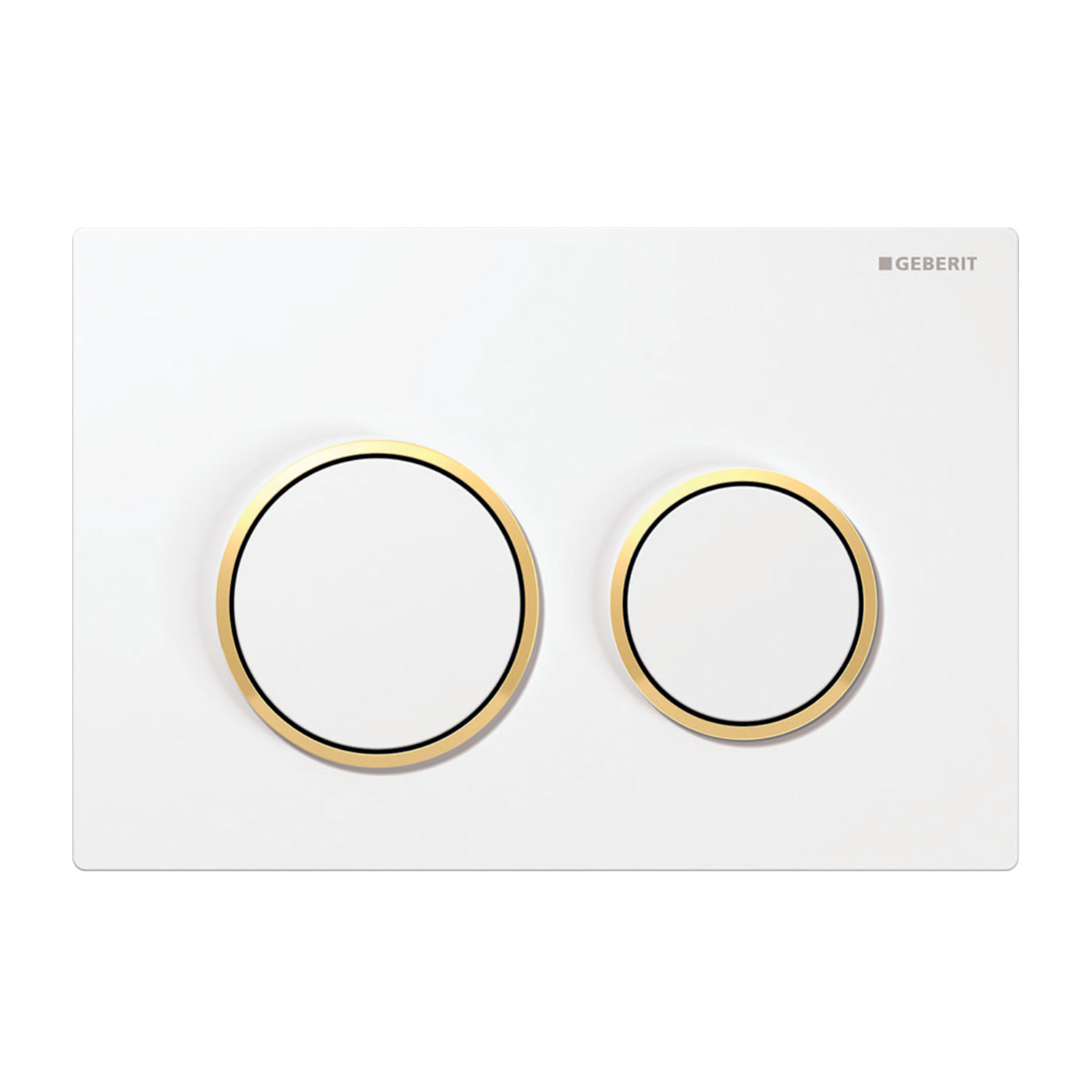

Geberit Omega20 Dual Flush Plate White/Gold Plated
(GB115085KK1)
£109.95
In Stock

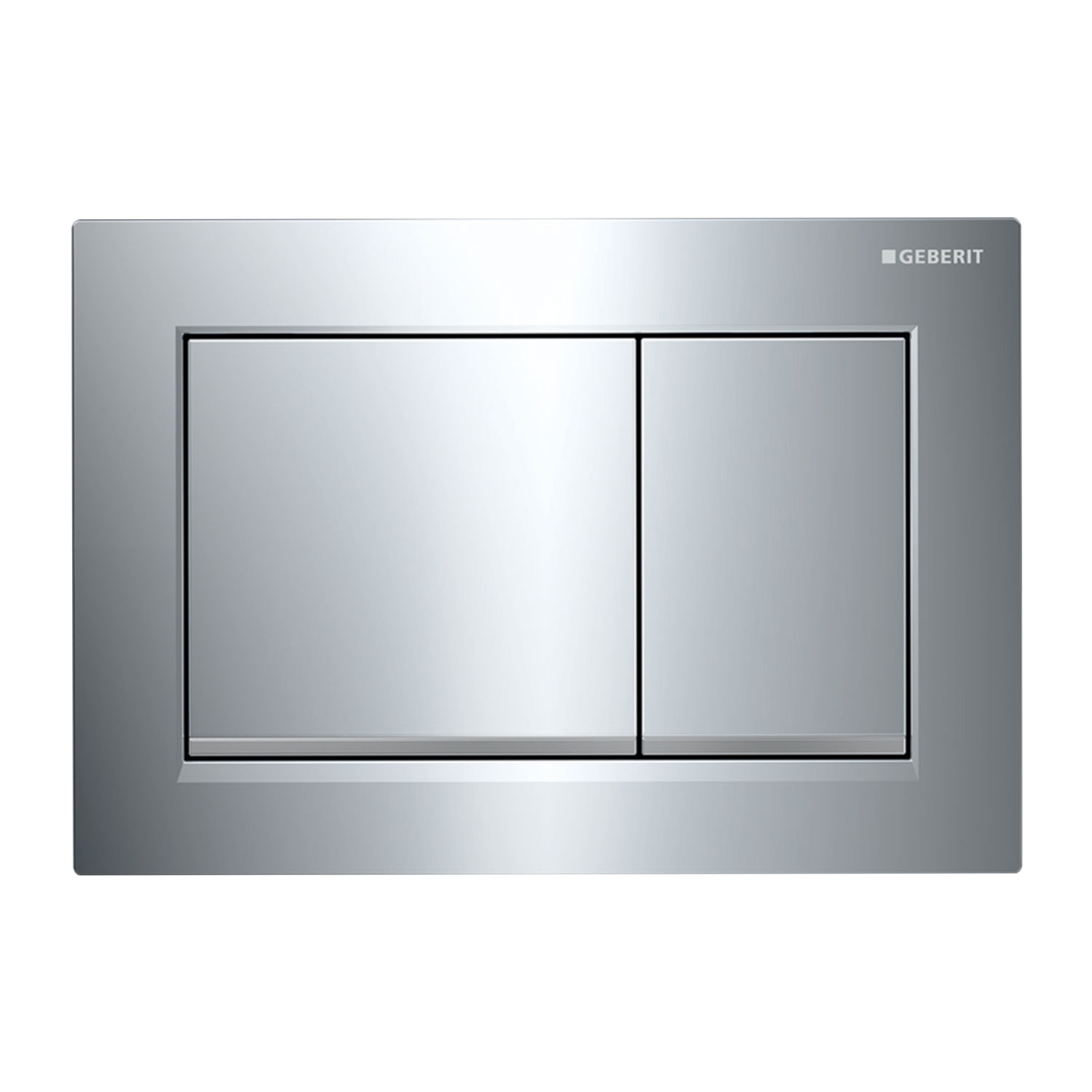

Suitable Flush Plate Omega30

Geberit Omega30 Dual Flush Plate - Black/Gloss Chrome
Geberit Omega30 Dual Flush Plate - Gloss/Matt Chrome
Geberit Omega30 Dual Flush Plate - White/Gloss Chrome
Geberit Omega30 Dual Flush Plate - White/Gold Plated

Suitable Flush Plate Omega60

Geberit Omega60 Dual Flush Plate Black Glass
(GB115081SJ1)
£424.95
In Stock
Geberit Omega60 Dual Flush Plate - Brushed Chrome
(GB115081GH1)
£424.95
In Stock
Geberit Omega60 Dual Flush Plate White Glass
(GB115081SI1)
£424.95
In Stock

Suitable Insulation Set

Geberit Acoustic Insulation Set For Wall Hung WC And Wall Hung Bidet
Geberit Acoustic Insulation Set For Wall Hung WC And Wall Hung Bidet
(GB156050001)
£17.95
In Stock

Suitable Bracket

Geberit Duofix System Rail and Fixings Includes 2 Rails
Geberit Duofix System Rail and Fixings Includes 2 Rails
(GB111878001)
£101.95
In Stock
Geberit Prewall Brackets - Universal
Geberit Prewall Brackets - Universal
(GB111844001)
£41.95
In Stock
Geberit Duofix Kappa Prewall Brackets for Duofix System - 150mm
Geberit Duofix Kappa Prewall Brackets for Duofix System - 150mm
(GB111767001)
£12.95
Out of Stock

Suitable Studs

Geberit Duofix Full Height Stud 3400mm-4000mm
Geberit Duofix Full Height Stud 3400mm-4000mm
(GB111874001)
£70.95
In Stock
Geberit Duofix Full Height Stud 3000mm-3600mm
Geberit Duofix Full Height Stud 3000mm-3600mm
(GB111873001)
£137.95
Out of Stock
Geberit Duofix Full Height Stud 2600mm-3200mm
Geberit Duofix Full Height Stud 2600mm-3200mm
(GB111872001)
£134.95
Out of Stock
Geberit Duofix Full Height Stud 2200mm-2800mm
Geberit Duofix Full Height Stud 2200mm-2800mm
(GB111871001)
£119.95
Out of Stock
