Delphi Atom Chrome Triple Concealed Shower Set with Fixed Head and Slide Rail Kit

Quick Code: 2857924
Ref: DEAC32FSCP
Delphi | Brand Logo
£329.95 Inc. VAT

Special offer - available at a new lower price for a limited time

Was: £

PayPal Credit
Spread the cost with 12 monthly payments of £27.50 at 0% APR using PayPal.
Find out more

Configuration:

Triple Valve | Fixed Head + Slide Rail Kit
▾
Dual Valve | Fixed Head
Dual Valve | Slide Rail Kit
Dual Valve | Fixed Head + Slide Rail Kit
Triple Valve | Fixed Head + Slide Rail Kit

In Stock

Usually delivered within 3 working days

Free Delivery Available

Delivery postcode restrictions apply

Check

Delphi Atom Chrome Triple Concealed Shower Set with Fixed Head and Slide Rail Kit

This Atom bundle is a two-outlet triple concealed shower in chrome, combining a three-handle thermostatic valve with a 200mm round fixed head, a 328mm premium arm and a 680mm curved slide rail kit. The centre handle sets the temperature and the outer two each open one outlet, so the overhead and the handset can run alone or both at once. The plate stretches to 280mm to take the extra handle, keeping the same softly rounded corners and slim pin levers.

Independent control is worth having wherever the enclosure is big enough to use both sprays at the same time. Every piece arrives together in matching chrome for one price.

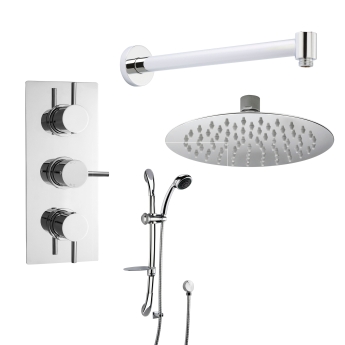

Bundle Contents

  • 1 x Delphi Atom Chrome 2-Outlet Triple Concealed Shower Valve
  • 1 x Delphi Round Chrome Fixed Shower Head 200mm x 200mm
  • 1 x Delphi Premium Chrome Shower Arm 328mm
  • 1 x Delphi Luxury Curved Multi-Function Slider Rail Shower Kit (inc Wall Outlet Elbow)

Shower Valve Features

  • Three-handle shower valve, including the concealing plate and valve body in one package
  • Two outlets, each with its own control, run on their own or both together

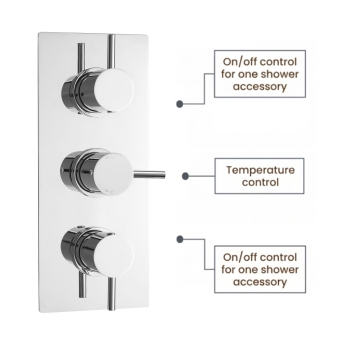

  • Three controls: the centre one sets the temperature, the outer two each open one outlet
  • Thermostatic cartridge holds your set temperature to within 2 degrees C
  • TMV2 approved, so the flow shuts off if the cold supply fails
  • WRAS approved for connection to the mains water supply
  • Quarter turn ceramic disc cartridge, highly resistant to limescale

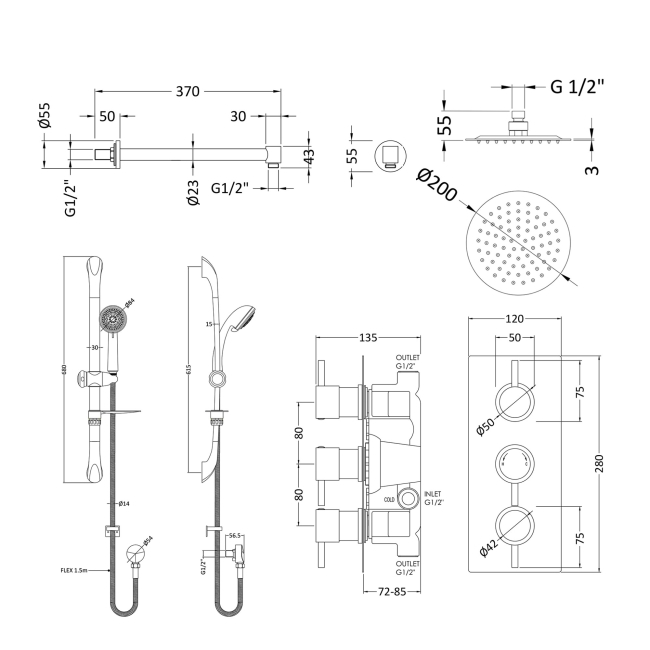

  • 280mm x 120mm plate, fitted portrait or landscape, needing a recess 72mm to 85mm deep
  • 15mm inlets, working from a minimum of 0.5 bar
  • Chrome finish, matched across every piece in the bundle

Fixed Shower Head and Arm Features

  • 200mm diameter round spray face, flat and slim at just 55mm deep
  • Stainless steel, which will not rust or tarnish in a shower enclosure
  • Flexible silicone nozzles in concentric rows, rubbed clean of limescale by hand
  • Single function rainfall spray on a 1/2 inch BSP swivel connector
  • Matching round arm projecting 328mm from the finished wall on a 55mm circular flange
  • Solid brass arm with a stepped cylindrical boss carrying the head

Slide Rail Kit Features

  • 680mm gently curved rail, projecting 315mm from the wall
  • Handset slides and locks at any height along the bar
  • Multi-function round handset with a segmented face for changing the spray pattern
  • 1500mm chrome plated brass shower hose
  • Wall outlet elbow included, connecting the kit straight to the concealed valve
  • Brass and ABS rail with an integrated soap dish, and all wall fixings supplied
  • 5 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts

Important Information

  • This is a two-outlet shower valve designed for two accessories only (both are included).

Shower TypeMixer
Temperature ControlThermostatic
Valve PositionConcealed
Valve Controls3
Valve Outlets2
Backplate ShapeRectangular
Control TypeLever
Fixed Head ShapeRound
Fixed Head Size200mm Diameter
Fixed Head MountingWall Arm
Wall Arm Length320mm from the wall
Shower Kit TypeAdjustable Slide Rail
Shower Kit Height680mm
Handset ShapeRound
Handset MountingShower Kit Parking Bracket
Handset ModesMulti-Function
Shower Hose Length1500mm
Minimum Pressure0.5 Bar
Minimum Pressure by PartValve (0.1 Bar), Fixed Head (0.5 Bar), Shower Kit (0.5 Bar)
Manufacturer Part NumberAC-32-FS-CP
MaterialBrass, ABS, Stainless Steel
Colour/FinishChrome
BrandDelphi
CollectionAtom
StyleModern
Weight6.21 kg
Flow Rate @ 0.1 Bar5.50 Litres/Min
Flow Rate @ 0.5 Bar14.00 Litres/Min
Flow Rate @ 1.0 Bar20.00 Litres/Min
Flow Rate @ 2.0 Bar29.00 Litres/Min
Flow Rate @ 3.0 Bar44.00 Litres/Min

Shower Kit Fitting Instructions
Type : PDF Size : 191.99 KB
Shower Arm Fitting Instructions
Type : PDF Size : 191.42 KB
Shower Head Fitting Instructions
Type : PDF Size : 191.69 KB
Shower Valve Fitting Instructions
Type : PDF Size : 6.71 MB
