Delphi Axiom Crosshead Brushed Brass Dual Concealed Shower Set with Fixed Head and Handset

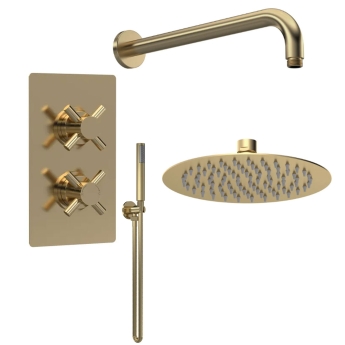

This brushed brass Axiom Crosshead set supplies every visible piece of a two-outlet shower at once: the concealed valve, a 200mm round head on a 335mm arm, and a slim pencil handset in a matching round bracket. Four spoke crosshead handles sit on a rounded corner rectangular plate.
The thermostatic valve uses two controls, one to set the temperature and one to turn the shower on and divert between overhead and handset. Warm metal against pale tiling is an easy scheme to get right, and valve, head, arm, handset, hose and elbow all come together for one price.
Bundle Contents
- 1 x Delphi Axiom Crosshead Brushed Brass 2-Outlet Dual Concealed Shower Valve
- 1 x Delphi Round Brushed Brass Fixed Shower Head 200mm x 200mm
- 1 x Delphi Round Brushed Brass Shower Arm 335mm
- 1 x Delphi Round Pencil Brushed Brass Shower Handset (inc Bracket, Hose and Wall Outlet Elbow)
Shower Valve Features
- Two-handle shower valve, including the concealing plate and valve body in one package
- Two outlets with an integrated diverter, feeding the fixed head or the handset

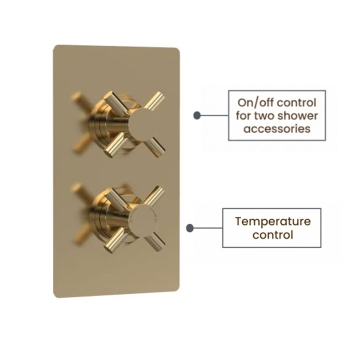

- Two controls: one sets the temperature, the other turns the shower on and switches between outlets
- Thermostatic cartridge holds your set temperature to within 2 to 3 degrees C
- TMV2 approved, so the flow shuts off if the cold supply fails
- WRAS approved for connection to the mains water supply
- Quarter turn ceramic disc cartridge, highly resistant to limescale

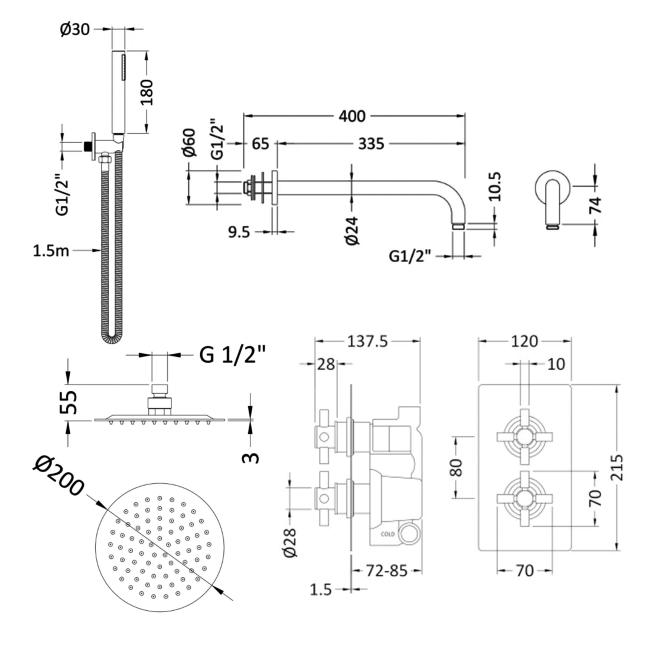

- 215mm x 120mm plate, fitted portrait or landscape, needing a recess 72mm to 85mm deep
- 15mm inlets, working from a minimum of 0.5 bar
- Brushed Brass finish, matched across every piece in the bundle
Fixed Shower Head and Arm Features
- 200mm diameter round spray face, flat and thin edged for a pared back look overhead
- Stainless steel, which will not rust or tarnish in a shower enclosure
- Rub clean silicone nozzles laid out in concentric rows
- Single function rainfall spray, just 55mm deep from face to connector
- Matching round arm projecting 335mm from the finished wall on a 60mm round flange
- 1/2 inch BSP swivel connector, so the spray angle can be adjusted
Handset and Bracket Features
- Single function round pencil handset with a slim cylindrical body
- Round wall bracket fixed at one height, with the water outlet built into it
- Handset lifts out for rinsing and parks back in place, with no height adjustment
- 1500mm flexible shower hose with 1/2 inch BSP connections
- Wall outlet elbow included, connecting the handset straight to the concealed valve
- 3 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts
Important Information
- This is a two-outlet shower valve designed for two accessories only (both are included).
