Delphi Axiom Lever Chrome Dual Concealed Shower Set with Large Drencher Head and Handset

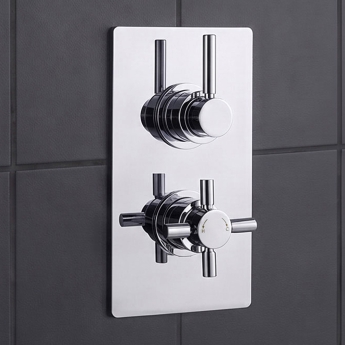

This chrome Axiom Lever set is specified for a full walk in: a 300mm drencher overhead for showering and a pencil handset for rinsing down afterwards. The valve pairs a slim pin lever with a four spoke crosshead on a rounded corner rectangular plate, and the same chrome runs through head, arm and handset.
Two controls run both outlets, one setting the temperature and the other opening the flow and diverting between overhead and handset. Valve, 300mm head, 335mm arm and handset set are supplied together for one price.

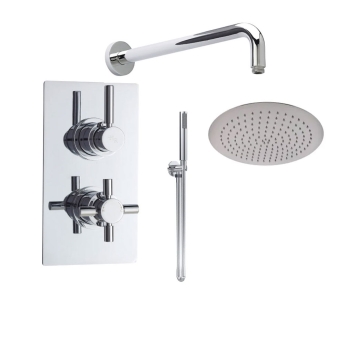

Bundle Contents
- 1 x Delphi Axiom Lever Chrome 2-Outlet Dual Concealed Shower Valve
- 1 x Delphi Round Chrome Fixed Shower Head 300mm x 300mm
- 1 x Delphi Round Chrome Shower Arm 335mm
- 1 x Delphi Round Pencil Chrome Shower Handset (inc Bracket, Hose and Wall Outlet Elbow)
Shower Valve Features
- Two-handle shower valve, including the concealing plate and valve body in one package
- Two outlets with an integrated diverter, feeding the fixed head or the handset
- Two controls: one sets the temperature, the other turns the shower on and switches between outlets
- Thermostatic cartridge holds your set temperature to within 2 to 3 degrees C
- TMV2 approved, so the flow shuts off if the cold supply fails
- WRAS approved for connection to the mains water supply
- Quarter turn ceramic disc cartridge, highly resistant to limescale

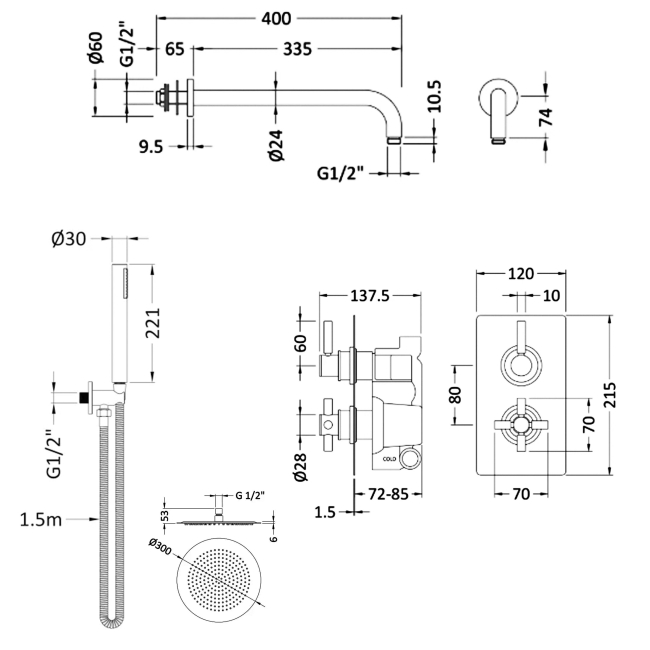

- 215mm x 120mm plate, fitted portrait or landscape, needing a recess 72mm to 85mm deep
- 15mm inlets, working from a minimum of 0.5 bar
- Chrome finish, matched across every piece in the bundle
Fixed Shower Head and Arm Features
- Large 300mm diameter round spray face for full body rainfall coverage
- Flat, thin edged disc just 56mm deep, so the extra width never looks bulky
- Stainless steel, which will not rust or tarnish in a shower enclosure
- Single function rainfall spray from a wide nozzle field on a smooth, easy wipe plate
- Matching round arm projecting 335mm from the finished wall on a 60mm round flange
- 1/2 inch BSP swivel connector, so the spray angle can be adjusted
Handset and Bracket Features

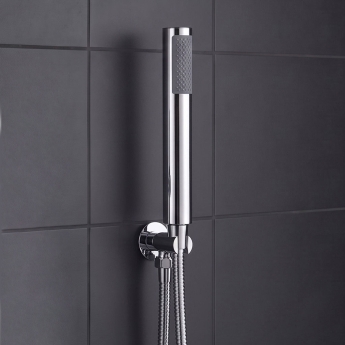

- Single function round pencil handset with a slim cylindrical body
- Round wall bracket fixed at one height, with the water outlet built into it
- Handset lifts out for rinsing and parks back in place, with no height adjustment
- 1500mm flexible shower hose with 1/2 inch BSP connections
- Wall outlet elbow included, connecting the handset straight to the concealed valve
- 5 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts
Important Information
- This is a two-outlet shower valve designed for two accessories only (both are included).
