Delphi Belgravia Chrome Dual Concealed Shower Set with Rigid Riser Kit
This is the Belgravia set for a bathroom where the pipework is meant to be seen. A chrome rigid riser climbs the wall to a 300mm drencher on a swan neck arm, with a white ceramic handled telephone handset parked beneath it, and only the valve plate is buried in the tiling. It suits a roll top bath or a period enclosure where exposed brassware is part of the argument.
The concealed thermostatic valve uses two controls, one for temperature and one for on and off, feeding the riser kit through a single outlet, with the diverter that switches between the drencher head and the handset mounted on the riser itself. Valve and complete riser kit come together for one price, with the wall outlet elbow already included.
Bundle Contents
- 1 x Delphi Belgravia Chrome 1-Outlet Dual Concealed Shower Valve
- 1 x Delphi Traditional Chrome/White Rigid Riser Concealed Shower Kit (inc Wall Outlet Elbow)
Shower Valve Features
- Two-handle shower valve, including the concealing plate and valve body in one package
- One outlet, feeding the riser kit, which carries its own diverter
- Two controls: one sets the temperature, the other opens and closes the flow
- Thermostatic cartridge holds your set temperature to within 1 degree C
- TMV2 approved, so the flow shuts off if the cold supply fails
- WRAS approved for connection to the mains water supply
- Quarter turn ceramic disc cartridge, highly resistant to limescale

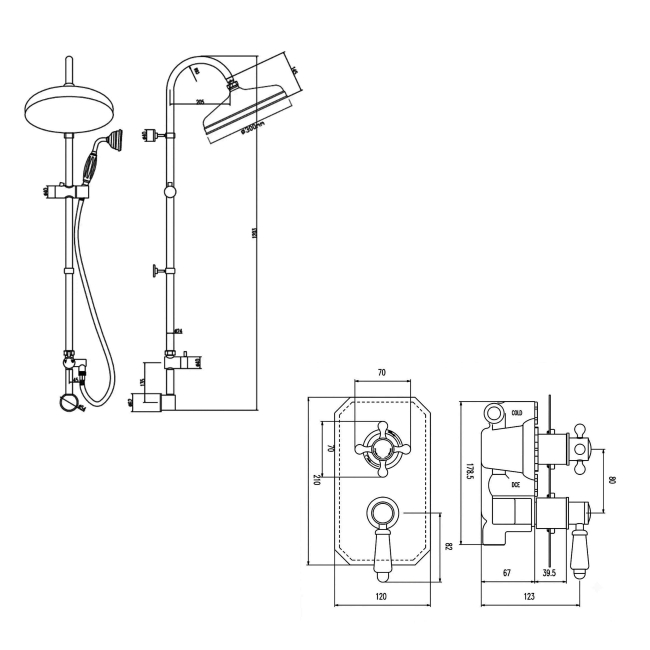

- 210mm x 120mm plate, cut away at the corners, fitted portrait or landscape
- Needs a recess 67mm deep, with 15mm inlets working from a minimum of 1.0 bar
- Chrome finish, matched across every piece in the bundle
Rigid Riser Kit Features
- Diverter mounted on the riser switches the flow between the overhead head and the handset
- 300mm diameter drencher head carried overhead on a curved traditional arm
- Riser stands 1203mm tall and projects 455mm from the wall
- Single function handset with a white ceramic handle for directed rinsing
- 1500mm flexible shower hose, with the cradle set at one fixed height
- Wall outlet elbow included, connecting the kit straight to the concealed valve
- Exposed brass and ABS pipework, which is the point of the design
- 5 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts
Important Information
- This is a one-outlet shower valve, with the diverter built into the riser kit, so it runs the overhead head and the handset supplied and no further accessories can be added.
