Delphi Belgravia Chrome Dual Concentric Concealed Shower Set with Slide Rail Kit

Quick Code: 2857992
Ref: DEBS21SCP
Delphi | Brand Logo
£318.95 Inc. VAT

Special offer - available at a new lower price for a limited time

Was: £

PayPal Credit
Spread the cost with 12 monthly payments of £26.58 at 0% APR using PayPal.
Find out more

Configuration:

Dual Concentric Valve | Slide Rail Kit
▾
Dual Valve | Fixed Head
Dual Valve | Large Drencher Head
Dual Valve | Rigid Riser Kit
Dual Valve | Slide Rail Kit
Dual Concentric Valve | Fixed Head
Dual Concentric Valve | Large Drencher Head
Dual Concentric Valve | Rigid Riser Kit
Dual Concentric Valve | Slide Rail Kit
Triple Valve | Fixed Head + Slide Rail Kit
Triple Valve | Large Drencher Head + Slide Rail Ki

In Stock

Usually delivered within 3 working days

Free Delivery Available

Delivery postcode restrictions apply

Check

Delphi Belgravia Chrome Dual Concentric Concealed Shower Set with Slide Rail Kit

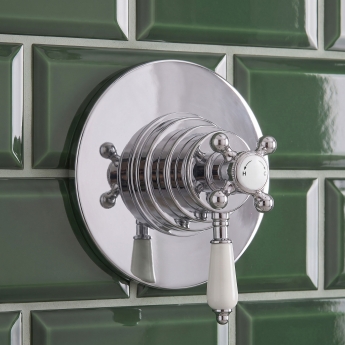

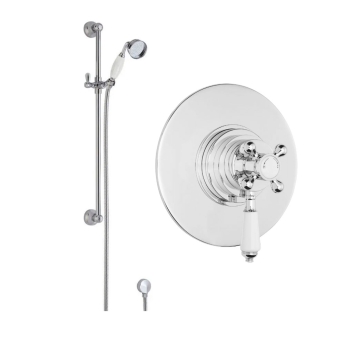

A Belgravia concentric concealed shower bundle in polished chrome, pairing a one-outlet thermostatic valve with a 750mm traditional slide rail kit. The round plate carries a crosshead over a white ceramic lever on one spindle, and the chrome bar takes a tapered rose handset that locks wherever it is set, which is what makes it work over a bath used by the whole household. The crosshead sets the temperature, the lever underneath turns the shower on and off, and the single outlet feeds the rail kit. Keeping the valve this compact and putting the flexibility in the rail suits a wall with little room to spare, and the outlet elbow is included.

Bundle Contents

  • 1 x Delphi Belgravia Chrome 1-Outlet Concentric Concealed Shower Valve
  • 1 x Delphi Traditional Chrome/White Slider Rail Shower Kit (inc Wall Outlet Elbow)

Shower Valve Features

  • Two-handle shower valve, including the concealing plate and the solid brass valve body in one package
  • One outlet, feeding the slide rail kit supplied here

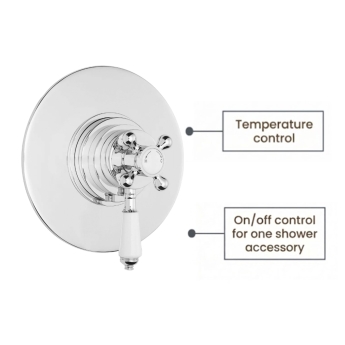

  • Two controls stacked on one spindle: crosshead for temperature, lever for flow
  • Thermostatic cartridge holds your set temperature to within 2 to 3 degrees C
  • Shuts the flow off if the hot or cold supply fails, so it cannot run scalding
  • Quarter turn ceramic disc cartridge, highly resistant to limescale

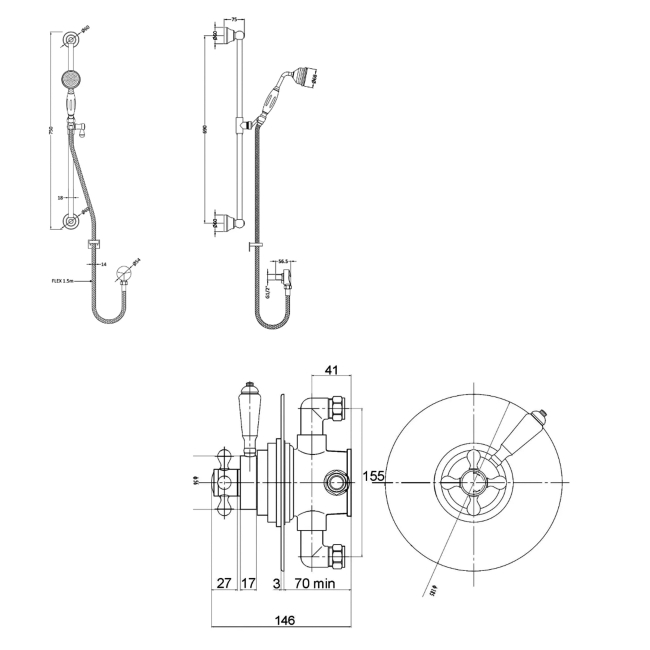

  • 196mm x 185mm round plate, needing a recess 70mm deep in the wall
  • 1/2 inch BSP inlets, working from a minimum of 0.1 bar
  • Chrome finish, matched across every piece in the bundle

Slide Rail Kit Features

  • 750mm rail, 70mm wide, projecting 150mm from the wall
  • Lever operated bracket, so the handset locks at any height along the bar
  • Single function tapered rose handset with classic white ceramic detailing
  • 1500mm flexible shower hose
  • Wall outlet elbow included, connecting the kit straight to the concealed valve
  • Brass and ABS construction
  • 5 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts

Important Information

  • This is a one-outlet shower valve designed for one accessory only (included).

Shower TypeMixer
Temperature ControlThermostatic
Valve PositionConcealed
Valve Controls2
Valve Outlets1
Backplate ShapeRound
Control TypeCrosshead and Lever
Shower Kit TypeAdjustable Slide Rail
Shower Kit ShapeTraditional
Shower Kit Height750mm
Handset ShapeTraditional
Handset MountingShower Kit Parking Bracket
Handset ModesSingle Function
Shower Hose Length1500mm
Minimum Pressure0.1 Bar
Manufacturer Part NumberBS-21-S-CP
MaterialBrass, ABS
Colour/FinishChrome
BrandDelphi
CollectionBelgravia
StyleTraditional
Weight4.75 kg
Flow Rate @ 0.1 Bar5.50 Litres/Min
Flow Rate @ 0.5 Bar14.50 Litres/Min
Flow Rate @ 1.0 Bar22.00 Litres/Min
Flow Rate @ 2.0 Bar30.00 Litres/Min
Flow Rate @ 3.0 Bar35.00 Litres/Min

Shower Valve Fitting Instruction
Type : PDF Size : 2.38 MB
Shower Valve Fitting Instructions
Type : PDF Size : 6.71 MB
Slider rail kits Fitting Instructions
Type : PDF Size : 191.99 KB
