Delphi Edge Brushed Pewter Triple Concealed Shower Set with Fixed Head and Slide Rail Kit

Delphi Edge Brushed Pewter Triple Concealed Shower Set with Fixed Head and Slide Rail Kit

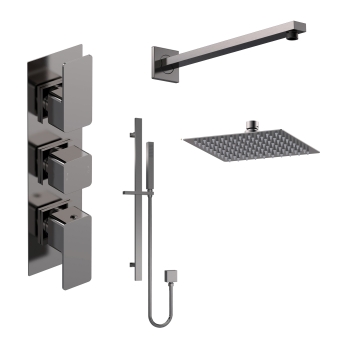

This Edge bundle is a three-handle, two-outlet concealed shower in brushed pewter, with a 200mm square overhead on a 360mm bar arm and a flat bladed rail carrying a square pencil handset. Temperature sits in the middle of the 280mm valve plate, with a dedicated on-off handle for the rain head and for the handset, usable alone or together.

The angular geometry is untouched by the finish; brushed pewter simply softens the tone, which makes it a good fit for a bathroom that leans grey rather than black. Everything in the set, wall outlet elbow included, arrives as one purchase.

Bundle Contents

• 1 x Delphi Edge Brushed Pewter 2-Outlet Triple Concealed Shower Valve
• 1 x Delphi Square Brushed Pewter Fixed Shower Head 200mm x 200mm
• 1 x Delphi Square Brushed Pewter Shower Arm 360mm
• 1 x Delphi Square Pencil Brushed Pewter Slider Rail Shower Kit (inc Wall Outlet Elbow)

Shower Valve Features

• Three-handle shower valve, including the concealing plate and valve body in one package
• Two outlets, each with its own control, running the fixed head and handset alone or together
• Three controls: the centre one sets the temperature, the outer two open one outlet each
• Thermostatic cartridge holds your set temperature to within 2 degrees C
• TMV2 approved, so the flow shuts off if the cold supply fails
• WRAS approved for connection to the mains water supply
• Quarter turn ceramic disc cartridge, highly resistant to limescale
• 280mm x 80mm plate, fitted portrait or landscape, needing a recess 72mm to 85mm deep
• 1/2 inch BSP inlets, working from a minimum of 0.5 bar
• Brushed pewter finish, matched across every piece in the bundle

Fixed Shower Head and Arm Features

• 200mm x 200mm square spray face with a chamfered, knife thin edge
• Stainless steel, which will not rust or tarnish in a shower enclosure
• Rub clean silicone nozzles set in a regular grid
• Single function rainfall spray
• Matching square arm projecting 360mm from the finished wall on a 62mm square flange
• 1/2 inch BSP swivel connector, so the spray angle can be adjusted

Slide Rail Kit Features

• 685mm rail, projecting just 65mm from the wall
• Handset slides and locks at any height along the bar
• Single function square pencil handset with a flat, easy clean face
• 1500mm flexible shower hose
• Wall outlet elbow included, connecting the kit straight to the concealed valve
• Brass and ABS construction
• 3 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts

Important Information

• This is a two-outlet shower valve designed for two accessories only (both are included).
