Delphi Loop Matt Black Dual Concealed Shower Set with Fixed Head and Slide Rail Kit
This Loop bundle is a two-outlet concealed shower in matt black: a dual thermostatic valve, a 200mm round fixed head, a 335mm arm and a 740mm round pencil slide rail kit. Two controls run those outlets through an integrated diverter, one setting the temperature and one turning the shower on and switching between rainfall and handset.
The valve hides behind an oval plate with a rounded paddle lever, the overhead is a flat disc just 55mm deep, and the arm is a plain round tube that sweeps through a quarter turn to drop the head into place. We put it together for a rounded, low contrast shower room where matt black is the only strong note in the scheme. Everything, wall outlet elbow included, is supplied at one price.

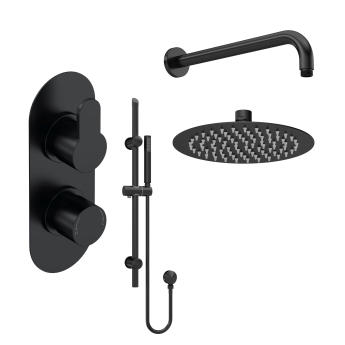

Bundle Contents
- 1 x Delphi Loop Matt Black 2-Outlet Dual Concealed Shower Valve
- 1 x Delphi Round Matt Black Fixed Shower Head 200mm x 200mm
- 1 x Delphi Round Matt Black Shower Arm 335mm
- 1 x Delphi Round Pencil Matt Black Slider Rail Shower Kit (inc Wall Outlet Elbow)
Shower Valve Features
- Two-handle shower valve, including the concealing plate and valve body in one package
- Two outlets with an integrated diverter, feeding the fixed head or the handset kit
- Two controls: one sets the temperature, the other turns the shower on and switches between outlets
- Thermostatic cartridge holds your set temperature to within 2 degrees C
- TMV2 approved, so the flow shuts off if the cold supply fails
- WRAS approved for connection to the mains water supply
- Quarter turn ceramic disc cartridge, highly resistant to limescale
- 215mm x 80mm plate, fitted portrait or landscape, needing a recess 72mm to 85mm deep
- 3/4 inch BSP inlets, working from a minimum of 0.5 bar
- Matt black finish, matched across every piece in the bundle
Fixed Shower Head and Arm Features
- 200mm round spray face, flat and slim at just 55mm deep to the connector
- Stainless steel, which will not rust or tarnish in a shower enclosure
- Rub clean silicone nozzles laid out in concentric rows
- Single function rainfall spray
- Matching round arm projecting 335mm from the finished wall on a 60mm circular flange
- 1/2 inch BSP swivel connector, so the spray angle can be adjusted
Slide Rail Kit Features
- 740mm rail, projecting 76mm from the wall
- Handset slides and locks at any height along the bar
- Single function round pencil handset with an easy clean spray face
- 1500mm flexible shower hose
- Wall outlet elbow included, connecting the kit straight to the concealed valve
- Brass and ABS construction
- 3 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts
Important Information
- This is a two-outlet shower valve designed for two accessories only (both are included).
