Delphi Loop Chrome Dual Concealed Shower Set with Fixed Head and Slide Rail Kit
Chrome, round and easy to live with, this Loop set is the default choice for a family bathroom being fitted with a concealed valve for the first time. The oval plate is only 80mm across, the overhead is a 200mm disc with a flat spray face, and the 335mm arm curves gently rather than turning a sharp corner.
One control holds the temperature and the other turns the water on and diverts it between the rain head and the handset on its 740mm rail. All four pieces, plus the hose and wall outlet elbow, are supplied as a single purchase.

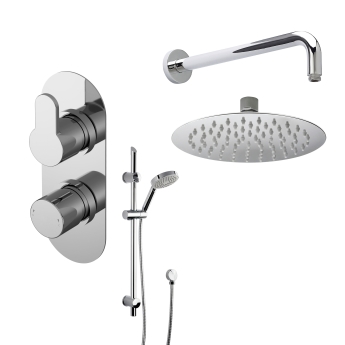

Bundle Contents
- 1 x Delphi Loop Chrome 2-Outlet Dual Concealed Shower Valve
- 1 x Delphi Round Chrome Fixed Shower Head 200mm x 200mm
- 1 x Delphi Round Chrome Shower Arm 335mm
- 1 x Delphi Round Pencil Chrome Slider Rail Shower Kit (inc Wall Outlet Elbow)
Shower Valve Features
- Two-handle shower valve, including the concealing plate and valve body in one package
- Two outlets with an integrated diverter, feeding the fixed head or the handset kit
- Two controls: one sets the temperature, the other turns the shower on and switches between outlets
- Thermostatic cartridge holds your set temperature to within 2 degrees C
- TMV2 approved, so the flow shuts off if the cold supply fails
- WRAS approved for connection to the mains water supply
- Quarter turn ceramic disc cartridge, highly resistant to limescale

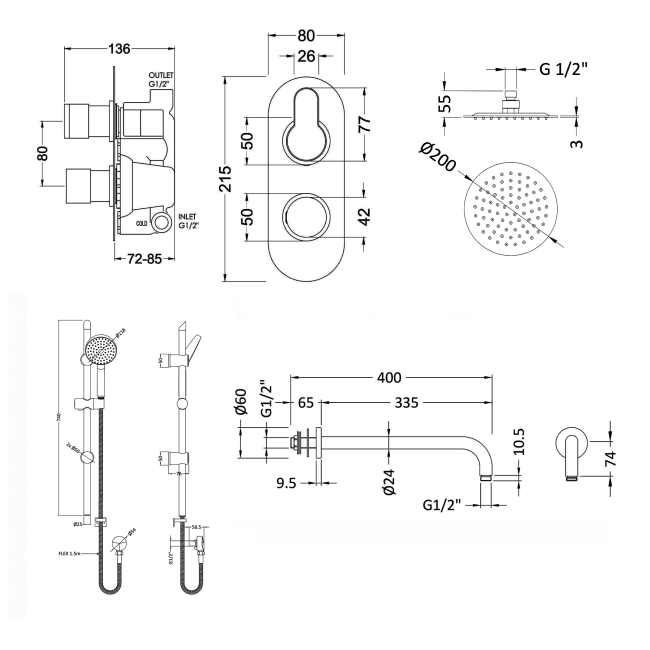

- 215mm x 80mm plate, fitted portrait or landscape, needing a recess 72mm to 85mm deep
- 3/4 inch BSP inlets, working from a minimum of 0.5 bar
- Chrome finish, matched across every piece in the bundle
Fixed Shower Head and Arm Features
- 200mm round spray face, flat and slim at just 55mm deep to the connector
- Stainless steel, which will not rust or tarnish in a shower enclosure
- Rub clean silicone nozzles laid out in concentric rows
- Single function rainfall spray
- Matching round arm projecting 335mm from the finished wall on a 60mm circular flange
- 1/2 inch BSP swivel connector, so the spray angle can be adjusted
Slide Rail Kit Features
- 740mm rail, projecting 76mm from the wall
- Handset slides and locks at any height along the bar
- Single function round pencil handset with an easy clean spray face
- 1500mm flexible shower hose
- Wall outlet elbow included, connecting the kit straight to the concealed valve
- Brass and ABS construction
- 5 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts
Important Information
- This is a two-outlet shower valve designed for two accessories only (both are included).
