Delphi Loop Brushed Brass Triple Concealed Shower Set with Fixed Head and Slide Rail Kit
This Loop bundle is a two-outlet triple concealed shower in brushed brass, with a three-handle thermostatic valve, a 200mm round rain head on a swept arm and a round bar rail with a pencil handset. The middle control holds the temperature and the outer pair open the overhead and the handset independently or together.
The valve plate runs 280mm along the wall, long enough that brushed brass becomes part of the design rather than a fixing, which is why we built it for a wide walk-in shower finished in warm tones. The complete set, including the 1500mm hose and the wall outlet elbow, is one purchase at one price.

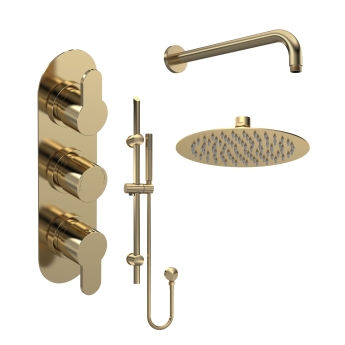

Bundle Contents
- 1 x Delphi Loop Brushed Brass 2-Outlet Triple Concealed Shower Valve
- 1 x Delphi Round Brushed Brass Fixed Shower Head 200mm x 200mm
- 1 x Delphi Round Brushed Brass Shower Arm 335mm
- 1 x Delphi Round Pencil Brushed Brass Slider Rail Shower Kit (inc Wall Outlet Elbow)
Shower Valve Features
- Three-handle shower valve, including the concealing plate and valve body in one package
- Two outlets, each with its own control, running the fixed head and handset alone or together
- Three controls: the centre one sets the temperature, the outer two open one outlet each
- Thermostatic cartridge holds your set temperature to within 2 degrees C
- TMV2 approved, so the flow shuts off if the cold supply fails
- WRAS approved for connection to the mains water supply
- Quarter turn ceramic disc cartridge, highly resistant to limescale
- 280mm x 80mm plate, fitted portrait or landscape, needing a recess 72mm to 85mm deep
- 1/2 inch BSP inlets, working from a minimum of 0.5 bar
- Brushed brass finish, matched across every piece in the bundle
Fixed Shower Head and Arm Features
- 200mm round spray face, flat and slim at just 55mm deep to the connector
- Stainless steel, which will not rust or tarnish in a shower enclosure
- Rub clean silicone nozzles laid out in concentric rows
- Single function rainfall spray
- Matching round arm projecting 335mm from the finished wall on a 60mm circular flange
- 1/2 inch BSP swivel connector, so the spray angle can be adjusted
Slide Rail Kit Features
- 740mm rail, projecting 76mm from the wall
- Handset slides and locks at any height along the bar
- Single function round pencil handset with an easy clean spray face
- 1500mm flexible shower hose
- Wall outlet elbow included, connecting the kit straight to the concealed valve
- Brass and ABS construction
- 3 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts
Important Information
- This is a two-outlet shower valve designed for two accessories only (both are included).
