Delphi Theory Chrome Dual Concealed Shower Set with Large Drencher Head

Delphi Theory Chrome Dual Concealed Shower Set with Large Drencher Head

The Theory plate is the narrowest we make at just 67mm across, which is what lets this set work in a tight enclosure where a wide plate would crowd the corner. Two flat topped round knobs sit on the slim oval, and above them a 300mm round disc covers the shoulders and back in one go.

The concealed thermostatic valve runs from two controls, one for temperature and one to open and close the flow, feeding the single overhead outlet. Valve, 300mm head and 335mm round arm are supplied together in chrome for one price.

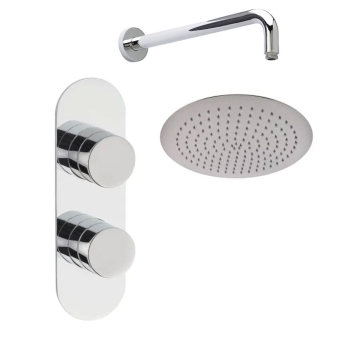

Bundle Contents

• 1 x Delphi Theory Chrome 1-Outlet Dual Concealed Shower Valve
• 1 x Delphi Round Chrome Fixed Shower Head 300mm x 300mm
• 1 x Delphi Round Chrome Shower Arm 335mm

Shower Valve Features

• Two-handle shower valve, including the concealing plate and valve body in one package
• One outlet, feeding the drencher head on its arm supplied in this bundle
• Two controls: one sets the temperature, the other opens and closes the flow
• Thermostatic cartridge holds your set temperature to within 2 degrees C
• TMV2 approved, so the flow shuts off if the cold supply fails
• WRAS approved for connection to the mains water supply
• Quarter turn ceramic disc cartridge, highly resistant to limescale

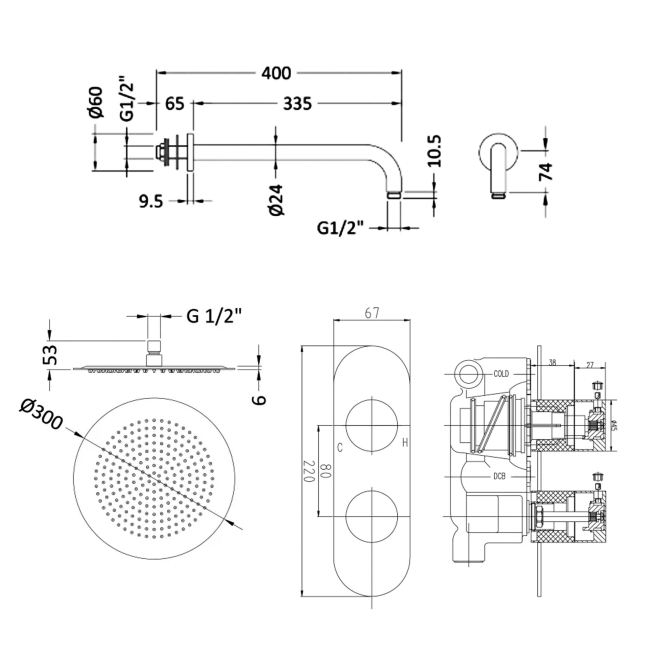

• Slim 220mm x 67mm oval plate, fitted portrait or landscape
• 1/2 inch BSP inlets, working from a minimum of 0.5 bar
• Chrome finish, matched across every piece in the bundle

Fixed Shower Head and Arm Features

• Large 300mm diameter round spray face for full body rainfall coverage
• Flat, thin edged disc standing just 56mm tall despite the wider face
• Stainless steel, which will not rust or tarnish in a shower enclosure
• Wide nozzle field across the whole face, quick to wipe clean of limescale
• Single function spray on a 1/2 inch BSP swivel connector
• Matching round arm projecting 335mm from the finished wall on a 60mm circular flange
• 5 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts

Important Information

• This is a one-outlet shower valve designed for one accessory only (included).
