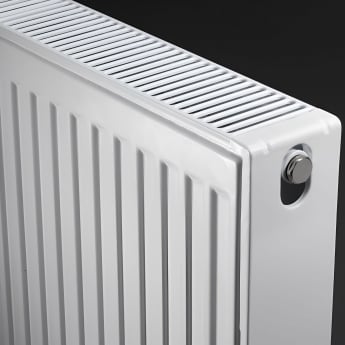

Part of a range that boasts state-of-the-art technology and excellent heating efficiency, the Kompact collection of panel radiators from MaxHeat offer a cost-effective solution to all central heating needs. Simplistically-styled, these radiators benefit from top grilles and side panels to help create that traditional "compact" feel. They are a great option to retrofit into an existing system, or used in new installations.

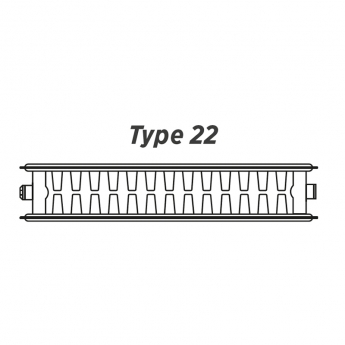

These radiator models are of a Type 22 configuration - also known as a Double Convecto or K2 - featuring a front and back panel, with a double set of convector fins.
The Kompact collection of radiators also feature K1 and P+ models for different heating requirements.
Product Features
- Compact panel radiator with classic corrugated front design
- Comprehensive range of sizes available spanning 6 different heights; widths up to 1800mm
- Complete with factory-fitted top grilles and side panels
- Type 22 models feature front and back panels, with a double set of convector fins
- Finished in high quality RAL 9016 Traffic White
- Suitable for operating pressures of up to 10 bar and a maximum operating temperature of 120C
- Manufactured under BS EN ISO 9001 quality system and outputs comply with EN442
- Robust and effective packaging to prevent damage in transit - plastic corners, bubble wrap and polythene protection

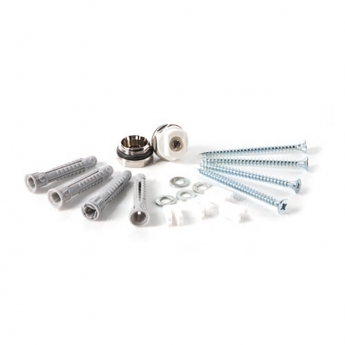

- Complete with installation package including brackets, bolts, vents and plugs
- L-shaped wall brackets allow for 2 different installation depths
- Includes "No Quibble Guarantee" of 10 years against faulty manufacture
Important Information
- Radiator valves not included - a selection of popular styles are available as additional options
- The manufacturer provides us with heat output data based on a Delta-T 60 degrees celsius correction factor. The UK standard is Delta-T 50 degrees celsius. We have adjusted the values to give a more accurate representation. Therefore, the heat outputs we show in our specification may differ from those shown in manufacturer brochures/documentation.
