MaxHeat Obla KS404F Flat Panel Radiator Features:
- Radiator Valves sold separately (See the You May Need)
- Simple flat-panel design that would suit any domestic or commercial environment such as an office
- Steel panel radiator finished in RAL9016 bright white
- Excellent efficiency and economical performance compared to similar styles
- Part of a comprehensive range of over 50 sizes
- Pressure tested up to 13 bar
- Manufactured under BS EN ISO 9001 quality system and outputs comply with EN442
- Complete with installation package including brackets, bolts, vents and plugs, 4 fixing points, 1/2 tappings
- Complete with a 10 years guarantee from MaxHeat for peace of mind
BTU Output Information Most heat output requirements are calculated at Delta-T 50degree C, whereas this product has been tested at Delta-T 60degree C. Therefore, the outputs listed are approximately 20% higher than when run on a system operating on Delta-T 50degree C.

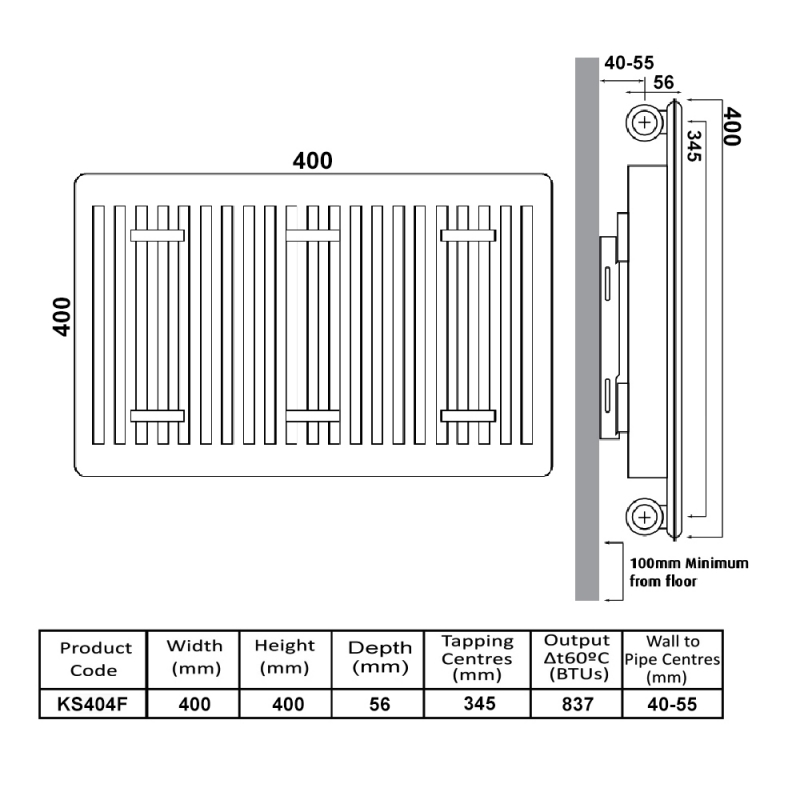

MaxHeat Obla KS404F Flat Panel Radiator Specifications:
Radiator Type |
Panel |
Radiator Configuration |
Single Convector [K1] |
Radiator Design |
Flat Panel |
Radiator Height |
400mm |
Radiator Width |
400mm |
Radiator Depth |
56mm |
Pipe Centres |
400mm + Valves |
Wall to Centres |
40 - 55mm |
Output (Watts) |
245 |
Output (BTU) |
837 |
Orientation |
Horizontal |
Fuel |
Central Heating |
Material |
Mild Steel |
Colour |
White |
Brand |
MaxHeat |
Collection |
Obla |
Style |
Modern |
Market |
Domestic |
Water Content |
2l/min |
EAN Barcode |
5054114658676 |
Manufacturer Part Number |
KS404F |
