  • AKW Braddan Square Shower Tray, 1000mm x 1000mm, Non-Handed
  • AKW Braddan Square Shower Tray, 1000mm x 1000mm, Non-Handed
  • AKW Braddan Square Shower Tray, 1000mm x 1000mm, Non-Handed
  • AKW Braddan Square Shower Tray, 1000mm x 1000mm, Non-Handed

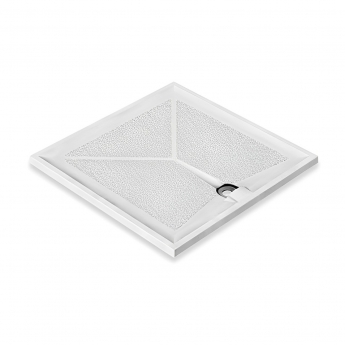

AKW Braddan Square Shower Tray, 1000mm x 1000mm, Non-Handed
Reference: AKW16071

  • Next Day Delivery Available on Tuesday

  • Order in the next 0 days | 12 hrs | 17 mins.

  • Free Delivery*Approx 2 Working Days

  • Product Guarantee Lifetime Years GuaranteeOn this product

  • Write Review

    Write a Review

Other Size Available:

The AKW Braddan Square Shower Tray 1000mm x 1000mm is a popular choice amongst specifiers and installers as it is suitable for all floor types. Furthermore, the choice of level access or surface mounted installations ensures flexibility when siting. Braddan shower trays have a 35mm fall to the waste to ensure the quick removal of water.

Braddan Shower Tray Summary:


  • Level access, surface mounted, or semi-recessed installation options
  • Central waste position ensures the tray can fit left or right
  • 35mm fall makes for excellent water handling
  • Superior strength makes it perfect for elderly or disabled users
  • Optional Gravity & pumped waste sold separately - (See the You May Need)
  • No under-tray foaming is required
  • Screens, curtains, rails and ramps available to complete your installation
  • All trays are supplied with a separate tiling upstand
  • Extensive range of sizes to fit most installations
  • Pipe duct kits available
  • Slip resistant surface
  • 40mm High

Braddan Shower Tray Specs:



Overall Dimensions (mm)1000 x 1000
Depth (mm)40
Gradient (mm)35
HandingReversible

Braddan Shower Tray Features:



YesWOODEN FLOORS
This shower tray is suitable for installation on wooden floors
YesCONCRETE FLOORS
This shower tray is suitable for installation on concrete floors
YesLEVEL ACCESS
This shower tray can be recessed into the floor for level access
YesSURFACE MOUNTED
This shower tray can be surface mounted for a traditional installation
YesSLIP RESISTANT
This shower tray is slip resistant - perfect for elderly or disabled users
YesCENTRAL WASTE
This shower tray has a central waste position - making it reversible
YesCORNER FITTING
This shower tray is suitable for installations in a corner
YesALCOVE FITTING
This shower tray is suitable for installations in an alcove
YesTRIM TO LENGTH
This shower tray can be trimmed to the desired length

Braddan Shower Tray Suitability:



YesSuitable for Wood Floor Installations?YesSuitable for Screed Floor Installations?
YesSuitable for Solid Floor Installations?YesSuitable for Standard Gravity Waste?
YesSuitable for Upward Pumped Waste?YesSuitable for Upward Discharge Waste?
YesSuitable for Corner Installations?YesSuitable for Alcove Installations?

Braddan Shower Tray Waste Options:



AKW Tray Waste OptionSTANDARD GRAVITY WASTE
Choose option with Gravity Waste in Product Options Tab
The standard gravity waste is available with either the popular 50mm water trap option, or a 19mm trap where depth is an issue.
  • Good seals and location
  • Built-in filter
  • 124mm (50mm trap) or 93mm (19mm trap) deep below mounting surface
  • 50mm or 19mm trap depth (water seal)
  • 50mm threaded waste fitting
AKW Tray Waste OptionFACTORY FITTED UPWARD DISCHARGE WASTE
Choose option with Pumped Waste in Product Options Tab
The upward discharge waste can be specified for the Braddan shower tray for unbreachable floors where a standard pump waste is not available.
  • Opens for easy cleaning and rodding
  • Nothing below tray level
  • 15mm John Guest Speedfit outlet

Braddan Shower Tray Installation Examples:






Braddan Shower Tray Optional Extras:

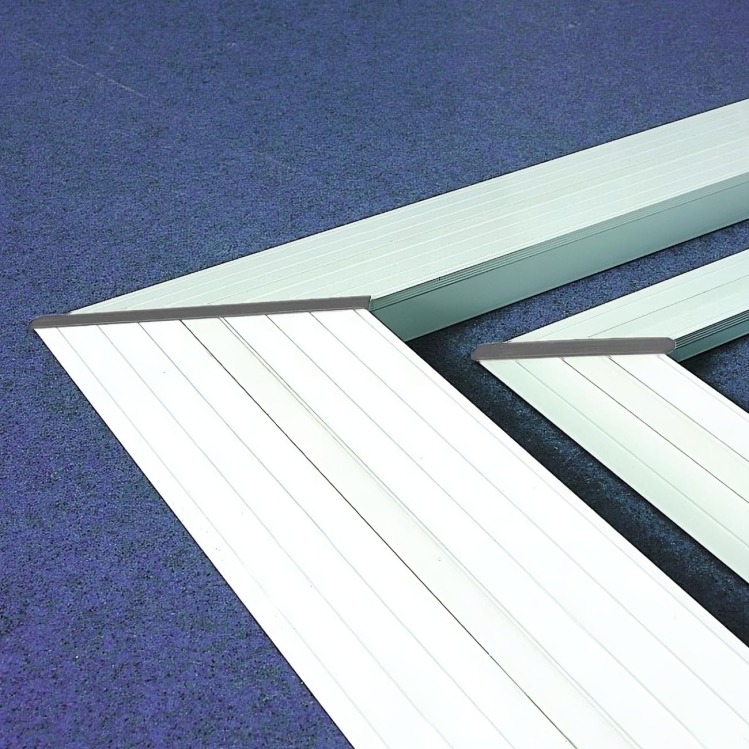

Available Ramp KitsRAMP KITS AVAILABLE
Braddan Aluminium Ramp Kits allow easy wheelchair access and are available for surface-mounted or semi-recessed shower trays in 20mm or 40mm heights. These ramp kits are available in straight or corner variations, and can be cut to length on site.

You can add ramp kits to your order under the Product Options tab.

Available Pipe Duct KitsPIPE DUCT KITS AVAILABLE
Braddan Pipe Duct Kits are available to fit on the edge of the tray to avoid re-routing any existing pipework. Featuring fully waterproof mouldings and quick and easy installation, they can help make substantial savings on time and labour costs. Please note - requires extra wide compensator.

You can add pipe duct kits to your order under the Product Options tab.

Available Extra Wide CompensatorsEXTRA WIDE COMPENSATORS AVAILABLE
Braddan Extra Wide Compensators have been designed to give approximately 50mm additional width to a standard shower screen enclosure area. They are also suitable for use with pipe duct kits where pipes have been boxed in.

You can add compensators to your order under the Product Options tab.
Suitable Shower Tray Waste
Suitable Shower Screen
Compatible Ramp Kit
  • AKW 20mm Straight Ramp for use with Braddan and Multi-Spec Trays

    AKW 20mm Straight Ramp for use with Braddan and Multi-Spec Trays(AKW25000)

    £32.46 (£27.05 exc. VAT)
  • AKW 20mm Corner Ramp for use with Braddan and Multi-Spec Trays

    AKW 20mm Corner Ramp for use with Braddan and Multi-Spec Trays(AKW25001)

    £32.46 (£27.05 exc. VAT)
  • AKW 40mm Corner Ramp for use with Braddan and Multi-Spec Trays

    AKW 40mm Corner Ramp for use with Braddan and Multi-Spec Trays(AKW25003)

    £51.20 (£42.67 exc. VAT)

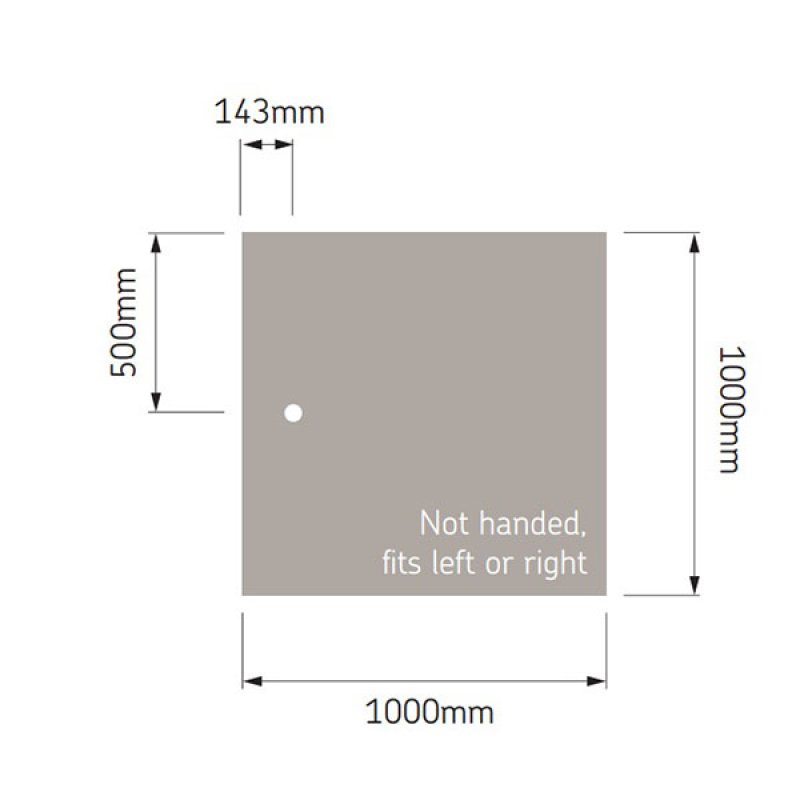

Dimensional Diagram - AKW Braddan Square Shower Tray, 1000mm x 1000mm, Non-Handed
