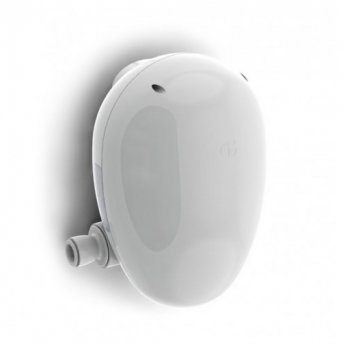

The AKW Digipump M11 with screedmaster waste designed and manufactured by AKW. The AKW M11 digital waste pump provides reliability, high performance in operation, is easy to install, quiet and is compatible with AKW's wide range of pumped wastes and trays. Pumps will quietly but powerfully pull the water to a higher point enabling drainage for even the most unusual shower design or tray.
Product Features
- Easily serviceable - reduces down-time and inconvenience to end users
- 1 x DigiPump Flow Sensor, 1 x M11 DigiPump - Component Part, 1 x Screedmaster 15mm JG Pumped Waste, 1 x Brass Body 15mm Compression Fitting Y Filter, 1 x John Guest in-line 15mm connector
- Delayed start up and run on settings - easy to set up and configure ensuring full drainage of shower tray
- Compact with the pump and controller enclosed in one unit - ideal for bathrooms with limited space
- Flow meter input - pump automatically adjusts to the variation of water supply
- Internal TGA fuse
- IP45 Rating - can be safely fitted within the showering area
- Max flow rate 11 litres/min - suitable for electric showers
- Suitable for use with wide range of electric and/or mixer showers including AKW, Mira, Triton and other brands
- Compatibility with electric and mixer showers enables greater flexibility based on the individual needs of the user
- 15mm inlet and 22mm outlet connectors - designed to work with Braddan upward waste discharge and AKW pumped waste options
- Reversible pump head features four valves with flap valve and bowl design
- Pump head design allows for better removal of debris and installation of inlet pipework from either left or right
- Pump head can be rotated - allows flow in either direction
- A hard-wired connection can be made to the flow sensor of an iTherm electric shower and many other brands
- Also offers a wireless connection to the flow sensor within AKW SmartCare Plus and Smart Care Lever electric showers
- Wired or wireless connections offer the installer flexibility when fitting
- Compatible with AKW wastes, trays and showers - designed for operation effortlessly with compatible AKW products for a complete showering solution
- Quick to install and simple to service - low maintenance solution that reduces inconvenience to users
- Adjusting the settings of the delay and run on times allows the pump to be calibrated to suit each installation ensuring quiet operation
- Reduces unnecessary excess noise for a relaxed showering experience
- Safe for use in Zones 1 & 2 with IP45 rating
- IP45 rating confirms approval for installation within the showering area (Zones 1 & 2)
- Superior pump performance with between 11-20lpm maximum capacity in a real life scenario
- Has been designed to be highly efficient and match the flow volumes of electric and mixer showers to ensure suitability for everyday use
- Automatically responds to the shower being operated through internal/external flow sensor
- Easy-to-use functionality that requires no additional effort by the user
- Supplied with a 5 year guarantee from the manufacturer
