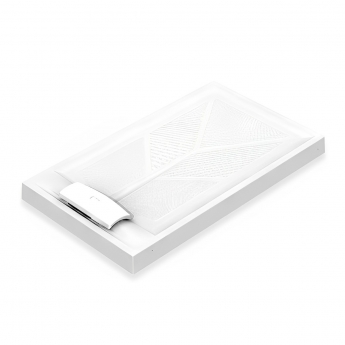

The AKW Sulby Rectangular Shower Tray 1200mm x 760mm was designed for easy installation into unbreachable floors, and has a built-in above-floor gravity waste.
The unique selectable weir on the AKW Sulby Rectangular Shower Tray 1200mm x 760mm provides a watertrap of 31mm or 38mm.
With many options including ramps and steps, AKW Sulby shower trays have 8 possible outlet points.
Sulby Shower Tray Summary:
- Optional corner, side and end ramps available
- Pipework can be hidden underneath tray
- Patented above floor gravity waste with 8 possible outlet points
- This shower tray supplied with Gravity waste
- Excellent water handling (35mm fall inside tray)
- Non handed - fits left or right
- Tiling flange supplied for alcove installations
- Optional Pipe Duct Kit available
- No under tray foaming required
- Trim-to-length kit supplied with 1800mm trays
- 1800mm trays can be trimmed down to 1500mm
|
Sulby Shower Tray Specs:

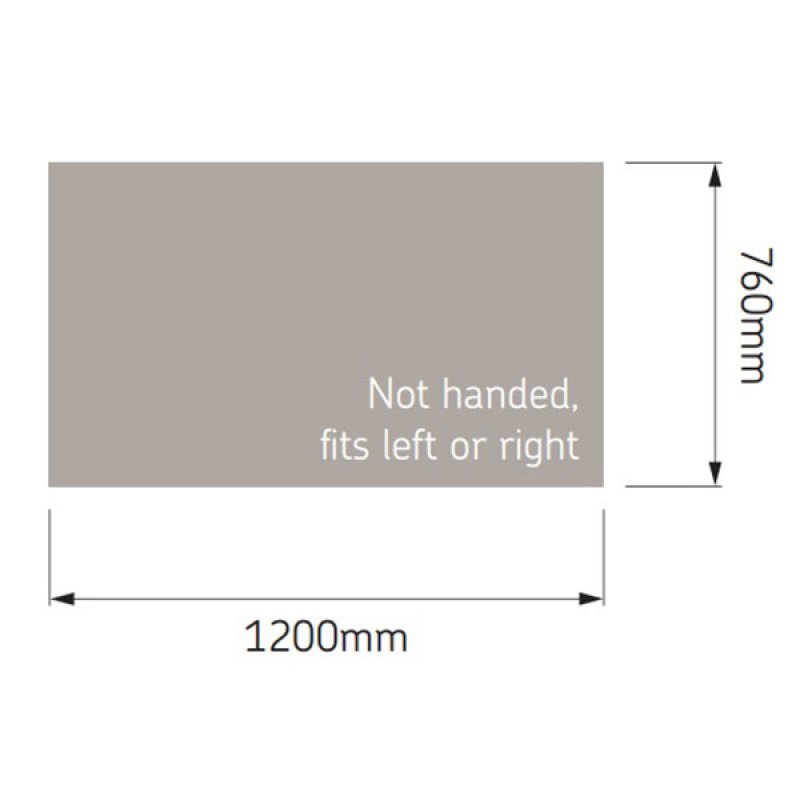

| Overall Dimensions (mm) | 1200 x 760 |
|---|
| Depth (mm) | 90 |
|---|
| Gradient (mm) | 35 |
|---|
| Handing | Reversible |
|---|
Sulby Shower Tray Features:
 | WOODEN FLOORS
This shower tray is suitable for installation on wooden floors |  | CONCRETE FLOORS
This shower tray is suitable for installation on concrete floors |
 | SCREEDED FLOOR
This shower tray is suitable for installation on screeded floors |  | SURFACE MOUNTED
This shower tray must be surface mounted |
 | SLIP RESISTANT
This shower tray is slip resistant - perfect for elderly or disabled users |  | CENTRAL WASTE
This shower tray has a central waste position - making it reversible |
 | CORNER FITTING
This shower tray is suitable for installations in a corner |  | ALCOVE FITTING
This shower tray is suitable for installations in an alcove |
Sulby Shower Tray Suitability:
 | Suitable for Wood Floor Installations? | | Suitable for Screed Floor Installations? |
| Suitable for Solid Floor Installations? | | Suitable for Standard Gravity Waste? |
 | Suitable for Upward Pumped Waste? | | Suitable for Upward Discharge Waste? |
| Suitable for Corner Installations? | | Suitable for Alcove Installations? |
Sulby Shower Tray Waste Options:
 | BUILT-IN GRAVITY WASTE WITH SELECTABLE WEIR
AKW Sulby Shower Trays come with a built-in gravity waste with selectable weir. This enables 8 different waste directions, making installation simple!
The exit height on Sulby trays is 60mm at the end of the waste on 90mm high shower trays. |
Sulby Shower Tray Installation Examples:
Sulby Shower Tray In Detail:
RAMP KITS AVAILABLEStraight and corner ramps are available for Sulby Shower Trays, as well as a 45mm step.
- Straight Ramp 90mm High x 770mm Wide x 480mm Deep available
- Corner Ramp 90mm High x 720mm Wide x 630mm Deep available
- Straight Step 45mm High x 700mm Wide x 480mm Deep available
You can add ramp kits to your order under the Product Options tab.
PIPE DUCT KITS AVAILABLEPipe Duct Kits are available to fit on the edge of the tray to avoid re-routing any existing pipework.
Please note - requires extra wide compensator.
- Fully waterproof mouldings
- Substantial savings on time and labour costs
- Extra wide compensator required
You can add pipe duct kits to your order under the Product Options tab.
EXTRA WIDE COMPENSATORS AVAILABLEExtra Wide Compensators have been designed to give approximately 50mm additional width to a standard shower screen enclosure area.
They are also suitable for use with pipe duct kits where pipes have been boxed in.
- Width: 141mm
- Height: 750, 900, or 1880mm
- Giving 50mm additional width
You can add compensators to your order under the Product Options tab.
