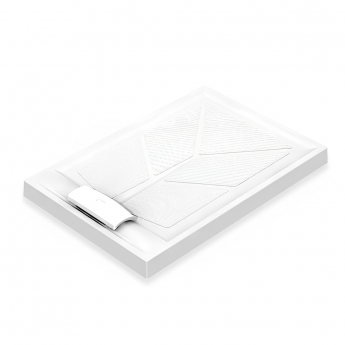

AKW Sulby Rectangular Shower Tray, 1200mm x 820mm, Non-Handed

Reference: AKW17029
Other Sizes Available:
  • Free Delivery*Approx 11 Working Days

  • Product Guarantee Lifetime Years GuaranteeOn this product

  • Write Review

    Write a Review

The AKW Sulby Rectangular Shower Tray 1200mm x 820mm was designed for easy installation into unbreachable floors, and has a built-in above-floor gravity waste. The unique selectable weir on the AKW Sulby Rectangular Shower Tray 1200mm x 820mm provides a watertrap of 31mm or 38mm. With many options including ramps and steps, AKW Sulby shower trays have 8 possible outlet points.

Sulby Shower Tray Summary:


  • Optional corner, side and end ramps available
  • Pipework can be hidden underneath tray
  • Patented above floor gravity waste with 8 possible outlet points
  • This shower tray supplied with Gravity waste
  • Excellent water handling (35mm fall inside tray)
  • Non handed - fits left or right
  • Tiling flange supplied for alcove installations
  • Optional Pipe Duct Kit available
  • No under tray foaming required
  • Trim-to-length kit supplied with 1800mm trays
  • 1800mm trays can be trimmed down to 1500mm

Sulby Shower Tray Specs:



Overall Dimensions (mm)1200 x 820
Depth (mm)90
Gradient (mm)35
HandingReversible

Sulby Shower Tray Features:



YesWOODEN FLOORS
This shower tray is suitable for installation on wooden floors
YesCONCRETE FLOORS
This shower tray is suitable for installation on concrete floors
YesSCREEDED FLOOR
This shower tray is suitable for installation on screeded floors
YesSURFACE MOUNTED
This shower tray must be surface mounted
YesSLIP RESISTANT
This shower tray is slip resistant - perfect for elderly or disabled users
YesCENTRAL WASTE
This shower tray has a central waste position - making it reversible
YesCORNER FITTING
This shower tray is suitable for installations in a corner
YesALCOVE FITTING
This shower tray is suitable for installations in an alcove

Sulby Shower Tray Suitability:



YesSuitable for Wood Floor Installations?YesSuitable for Screed Floor Installations?
YesSuitable for Solid Floor Installations?YesSuitable for Standard Gravity Waste?
NoSuitable for Upward Pumped Waste?NoSuitable for Upward Discharge Waste?
YesSuitable for Corner Installations?YesSuitable for Alcove Installations?

Sulby Shower Tray Waste Options:



AKW Tray Waste OptionBUILT-IN GRAVITY WASTE WITH SELECTABLE WEIR
AKW Sulby Shower Trays come with a built-in gravity waste with selectable weir. This enables 8 different waste directions, making installation simple! The exit height on Sulby trays is 60mm at the end of the waste on 90mm high shower trays.

Sulby Shower Tray Installation Examples:




Sulby Shower Tray In Detail:



Available Ramp KitsRAMP KITS AVAILABLE
Straight and corner ramps are available for Sulby Shower Trays, as well as a 45mm step.

- Straight Ramp 90mm High x 770mm Wide x 480mm Deep available
- Corner Ramp 90mm High x 720mm Wide x 630mm Deep available
- Straight Step 45mm High x 700mm Wide x 480mm Deep available

You can add ramp kits to your order under the Product Options tab.

Available Pipe Duct KitsPIPE DUCT KITS AVAILABLE
Pipe Duct Kits are available to fit on the edge of the tray to avoid re-routing any existing pipework. Please note - requires extra wide compensator.

- Fully waterproof mouldings
- Substantial savings on time and labour costs
- Extra wide compensator required

You can add pipe duct kits to your order under the Product Options tab.

Available Extra Wide CompensatorsEXTRA WIDE COMPENSATORS AVAILABLE
Extra Wide Compensators have been designed to give approximately 50mm additional width to a standard shower screen enclosure area. They are also suitable for use with pipe duct kits where pipes have been boxed in.

- Width: 141mm
- Height: 750, 900, or 1880mm
- Giving 50mm additional width

You can add compensators to your order under the Product Options tab.

Suitable Shower Screen
  • AKW Option B 750 Shower Screen, 1200mm x 820mm, Left Handed

    AKW Option B 750 Shower Screen, 1200mm x 820mm, Left Handed(AKW91008L)

    £559.73 (£466.44 exc. VAT)
    Out of Stock
  • AKW Option B 750 Shower Screen, 1200mm x 820mm, Right Handed

    AKW Option B 750 Shower Screen, 1200mm x 820mm, Right Handed(AKW91008R)

    £559.73 (£466.44 exc. VAT)
  • AKW Option B 900 Shower Screen, 1200mm x 820mm, Left Handed

    AKW Option B 900 Shower Screen, 1200mm x 820mm, Left Handed(AKW91010L)

    £559.73 (£466.44 exc. VAT)
  • AKW Option B 900 Shower Screen, 1200mm x 820mm, Right Handed

    AKW Option B 900 Shower Screen, 1200mm x 820mm, Right Handed(AKW91010R)

    £559.73 (£466.44 exc. VAT)

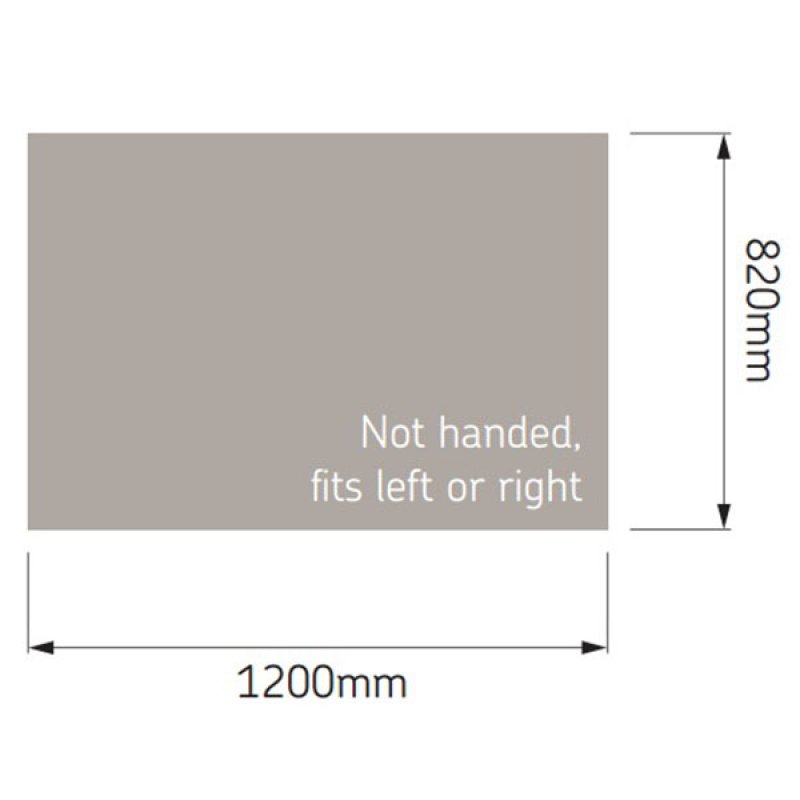

Dimensional Diagram - AKW Sulby Rectangular Shower Tray, 1200mm x 820mm, Non-Handed
