Bayswater Nelson 3-Column Vertical Radiator 1500mm High x 381mm Wide White Bayswater Nelson 3-Column Vertical Radiator 1500mm High x 381mm Wide White Bayswater Nelson 3-Column Vertical Radiator 1500mm High x 381mm Wide White
Bayswater Nelson 3-Column Vertical Radiator 1500mm High x 381mm Wide White Bayswater Nelson 3-Column Vertical Radiator 1500mm High x 381mm Wide White Bayswater Nelson 3-Column Vertical Radiator 1500mm High x 381mm Wide White

Bayswater Nelson 3-Column Vertical Radiator 1500mm High x 381mm Wide White

Quick Code: 2810138
Ref: BAYR017
Bayswater
£314.95 Inc. VAT

New lower prices throughout December 2025

Was: £393.95

PayPal Credit
Spread the cost with 12 monthly payments of £26.25 at 0% APR using PayPal.
Find out more
PayPal Credit

Size (Height x Width):

Select Radiator Feet:

Select Radiator Valves:

Out of Stock

Stock is expected around 25/02/2026.

Free Delivery Available

Delivery postcode restrictions apply

Check

Bayswater Nelson Vertical 3-Column Radiator - 1500mm x 381mm

Add the finishing touch to your new Bayswater traditional bathroom with the addition of a Nelson vertical column radiator. Consisting of vertical 3-column tubes in a sectional layout, the Nelson radiator is available in 2 different heights, with 6-section and 8-section widths available in each. The optional floor-mounting kit - available separately - can be used to create a completely different aesthetic by adding feet to the otherwise wall-mounted design.

Product Features

  • Traditional multi-column radiator consisting of vertical sections
  • 3-column depth (100mm), with each column tube measuring 25mm diameter
  • Size: 1500mm x 381mm
  • Strong and dependable mild steel construction
  • Finished in RAL 9016 white
  • Supplied complete with wall brackets, plug, air vent and wall fixings
  • Wall mounted as standard - floor mounted kits are available separately
  • Suitable for use with standard central heating systems
  • Supplied with a 5 year guarantee from the manufacturer

Important Information

  • Radiator valves are sold separately
  • Optional floor mounting feet kit available separately
  • The image showing the radiator in a room depicts a 1500mm x 381mm (8 sections) model
Show More

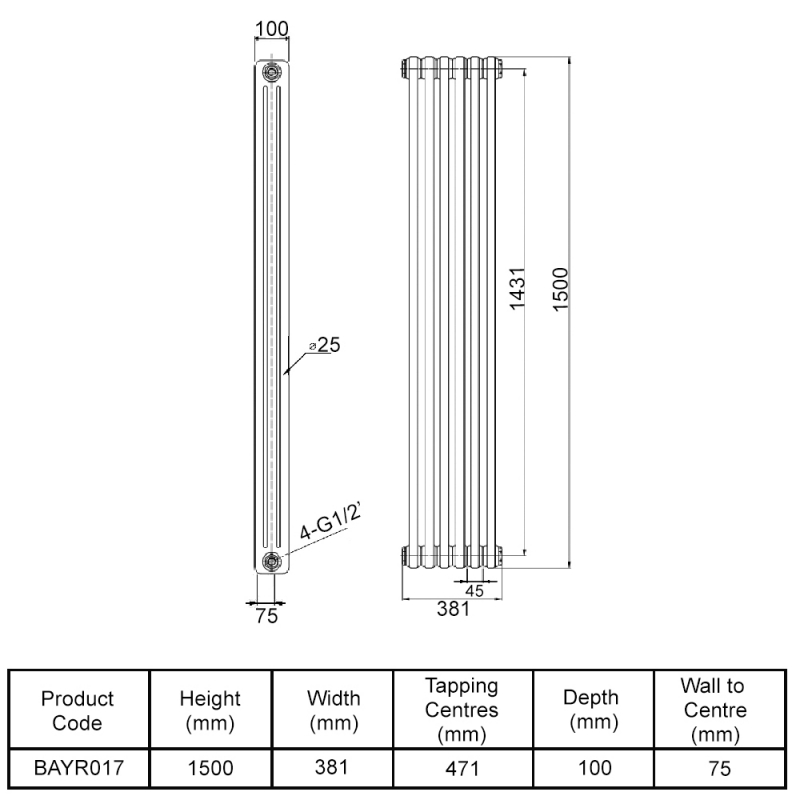

Radiator TypeDesigner
Radiator Configuration3 Column
Radiator DesignColumn Tubes - Vertical
Radiator Height1500mm
Radiator Width381mm
Radiator Depth100mm
Pipe Centres471mm
Wall to Front140mm
Wall to Pipe Centres75mm
Water Content97 l/min
Output (Watts)1132
Output (BTU)3863
OrientationVertical
FuelCentral Heating
MaterialSteel
ColourWhite
BrandBayswater
CollectionNelson
StyleTraditional
MarketDomestic
Suitable for ConversionNo
Inlet Connection Size1/2 BSP
Outlet Connection Size1/2 BSP
Weight26.7 Kg
EAN Barcode5055275890066
Manufacturer Part Number(s)BAYR017
Show More

Brochure
Type : PDF Size : 5.13 MB
Product Datasheet
Type : PDF Size : 670.38 KB
Fitting Instruction
Type : PDF Size : 290.52 KB

Required Manual Radiator Valve

Bayswater Crosshead Angled Radiator Valves Pair Chrome
(BAYV101)
£33.95 £37.95

Save £4.00 when purchased with the main item

Out of Stock : 29/01/2026
Bayswater Victrion Crosshead Angled Radiator Valves Pair Chrome
(BAYV102)
£34.95
Stock Due : 12/01/2026

Required Thermostatic Radiator Valve

Bayswater Fluted Angled Thermostatic Radiator Valve + Lockshield Chrome
(BAYV105)
£61.95 £65.95

Save £4.00 when purchased with the main item

Stock Due : 15/01/2026
Bayswater Rounded Angled Thermostatic Radiator Valve + Lockshield Chrome
(BAYV108)
£69.95 £73.95

Save £4.00 when purchased with the main item

Stock Due : 15/01/2026

Recommended Floor Mounting Kit

Bayswater Nelson Radiator Floor Mounting Support Kit White
(BAYR999)
£35.95
Stock Due : 29/12/2025
