Delphi Axiom Crosshead Matt Black Dual Concealed Shower Set with Handset and Bracket

Delphi Axiom Crosshead Matt Black Dual Concealed Shower Set with Handset and Bracket

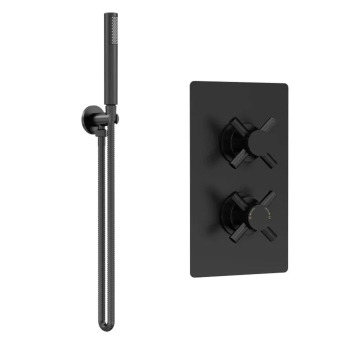

For a compact enclosure or an over bath shower, we paired the matt black Axiom Crosshead valve with a slim pencil handset on a fixed wall bracket, so the tiling stays clear of rails. The rounded corner rectangular plate and its four spoke crosshead handles are the only parts standing proud of the wall. Two controls set the temperature and open the flow to the single outlet, and both pieces are supplied together for one price.

Bundle Contents

• 1 x Delphi Axiom Crosshead Matt Black 1-Outlet Dual Concealed Shower Valve
• 1 x Delphi Round Pencil Matt Black Shower Handset (inc Bracket, Hose and Wall Outlet Elbow)

Shower Valve Features

• Two-handle shower valve, including the concealing plate and valve body in one package
• One outlet, feeding the handset on its bracket supplied in this bundle
• Two controls: one sets the temperature, the other opens and closes the flow
• Thermostatic cartridge holds your set temperature to within 2 to 3 degrees C
• TMV2 approved, so the flow shuts off if the cold supply fails
• WRAS approved for connection to the mains water supply
• Quarter turn ceramic disc cartridge, highly resistant to limescale

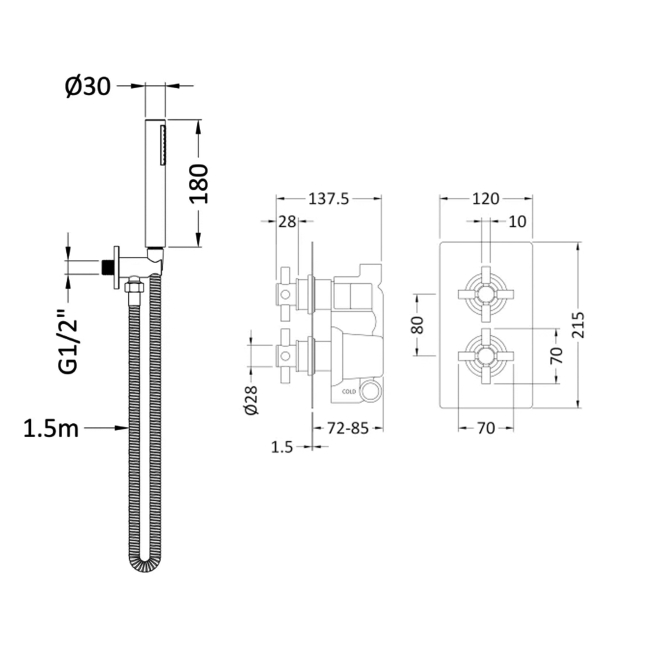

• 215mm x 120mm plate, fitted portrait or landscape, needing a recess 72mm to 85mm deep
• 15mm inlets, working from a minimum of 0.1 bar
• Matt Black finish, matched across every piece in the bundle

Handset and Bracket Features

• Single function round pencil handset with a slim cylindrical body
• Round wall bracket fixed at one height, with the water outlet built into it
• Handset lifts out for rinsing and parks back in place, with no height adjustment
• 1500mm flexible shower hose with 1/2 inch BSP connections
• Wall outlet elbow included, connecting the handset straight to the concealed valve
• 3 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts

Important Information

• This is a one-outlet shower valve designed for one accessory only (included).
