Delphi Axiom Crosshead Chrome Dual Concealed Shower Set with Handset and Bracket

Quick Code: 2858033
Ref: DEXC21HCP
Delphi | Brand Logo
£226.95 Inc. VAT

Special offer - available at a new lower price for a limited time

Was: £

PayPal Credit
Spread the cost with 12 monthly payments of £18.91 at 0% APR using PayPal.
Find out more

Configuration:

Dual Valve | Handset + Bracket
▾

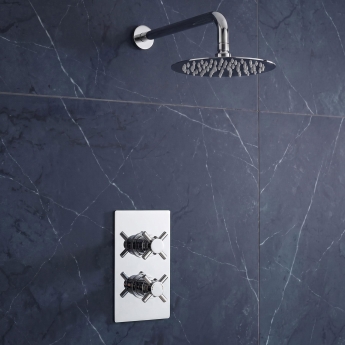

Dual Valve | Fixed Head
Dual Valve | Handset + Bracket

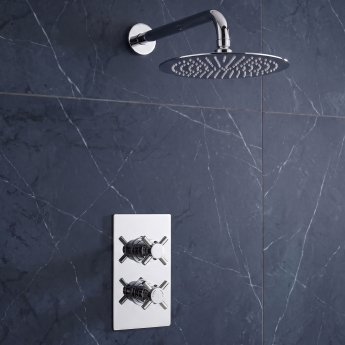

Dual Valve | Large Drencher Head

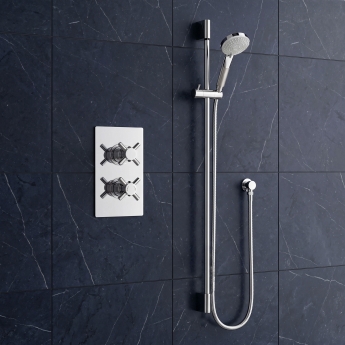

Dual Valve | Slide Rail Kit

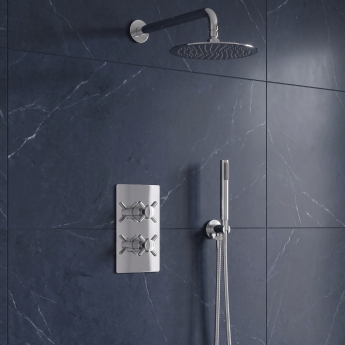

Dual Valve | Fixed Head + Handset

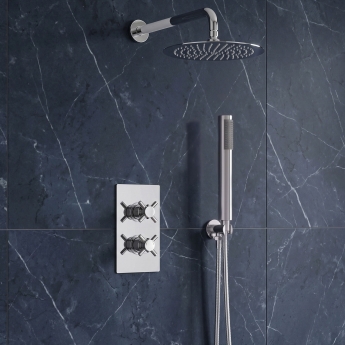

Dual Valve | Large Drencher Head + Handset
Dual Valve | Large Drencher Head + Slide Rail Kit

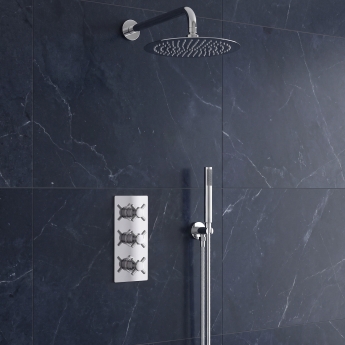

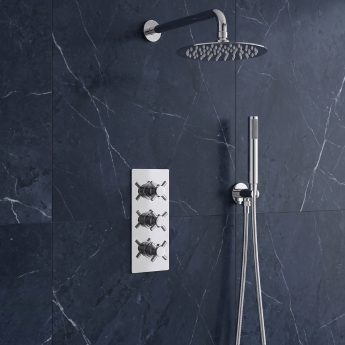

Triple Valve | Fixed Head + Handset
Triple Valve | Large Drencher Head + Handset

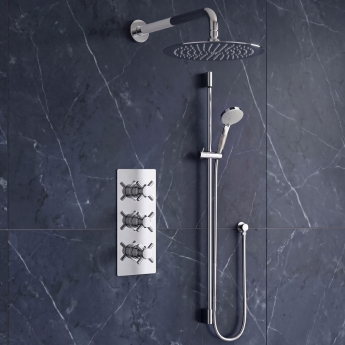

Triple Valve | Large Drencher Head + Slide Rail Ki

Colour/Finish:

In Stock

Usually delivered within 3 working days

Free Delivery Available

Delivery postcode restrictions apply

Check

Delphi Axiom Crosshead Chrome Dual Concealed Shower Set with Handset and Bracket

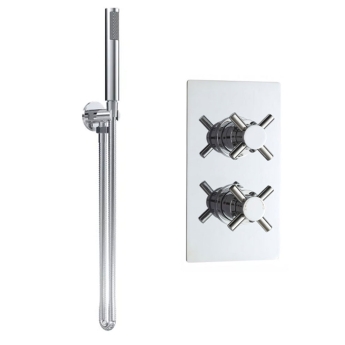

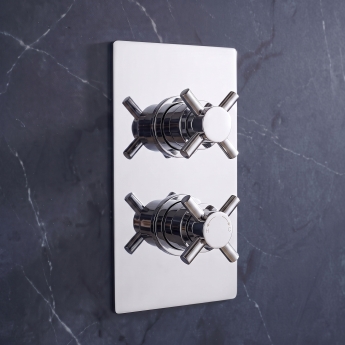

We assembled this chrome Axiom Crosshead set for cloakrooms and second bathrooms where a handset on a bracket is all the showering that is needed. The valve shows a rounded corner rectangular plate with four spoke crosshead handles, and the pencil handset keeps the same bright plating. Two controls cover temperature and on off, feeding a single outlet, and the valve, handset, hose and bracket are supplied together for one price.

Bundle Contents

  • 1 x Delphi Axiom Crosshead Chrome 1-Outlet Dual Concealed Shower Valve
  • 1 x Delphi Round Pencil Chrome Shower Handset (inc Bracket, Hose and Wall Outlet Elbow)

Shower Valve Features

  • Two-handle shower valve, including the concealing plate and valve body in one package
  • One outlet, feeding the handset on its bracket supplied in this bundle

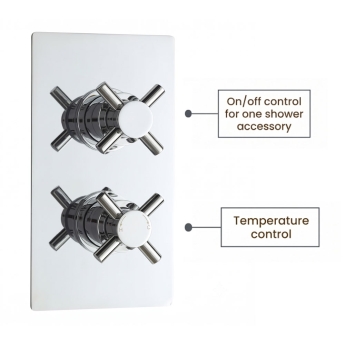

  • Two controls: one sets the temperature, the other opens and closes the flow
  • Thermostatic cartridge holds your set temperature to within 2 to 3 degrees C
  • TMV2 approved, so the flow shuts off if the cold supply fails
  • WRAS approved for connection to the mains water supply
  • Quarter turn ceramic disc cartridge, highly resistant to limescale

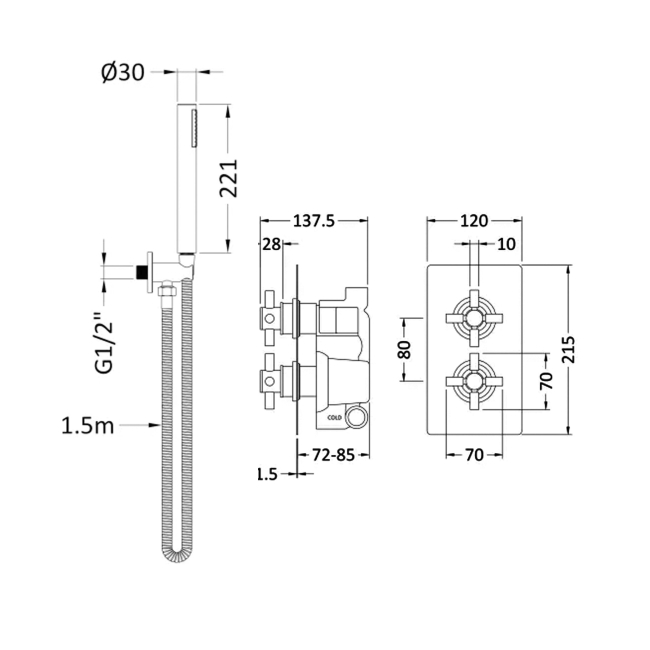

  • 215mm x 120mm plate, fitted portrait or landscape, needing a recess 72mm to 85mm deep
  • 1/2 inch BSP inlets, working from a minimum of 0.1 bar
  • Chrome finish, matched across every piece in the bundle

Handset and Bracket Features

  • Single function round pencil handset with a slim cylindrical body
  • Round wall bracket fixed at one height, with the water outlet built into it
  • Handset lifts out for rinsing and parks back in place, with no height adjustment
  • 1500mm flexible shower hose with 1/2 inch BSP connections
  • Wall outlet elbow included, connecting the handset straight to the concealed valve
  • 5 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts

Important Information

  • This is a one-outlet shower valve designed for one accessory only (included).

Shower TypeMixer
Temperature ControlThermostatic
Valve PositionConcealed
Valve Controls2
Valve Outlets1
Backplate ShapeRectangular
Control TypeCrosshead
Handset ShapeRound (Pencil)
Handset MountingWall Parking Bracket
Handset ModesSingle Function
Shower Hose Length1500mm
Minimum Pressure0.1 Bar
Manufacturer Part NumberXC-21-H-CP
MaterialBrass, ABS
Colour/FinishChrome
BrandDelphi
CollectionAxiom Crosshead
StyleModern
Weight5.30 kg
Flow Rate @ 0.1 Bar5.50 Litres/Min
Flow Rate @ 0.5 Bar14.00 Litres/Min
Flow Rate @ 1.0 Bar20.00 Litres/Min
Flow Rate @ 2.0 Bar29.00 Litres/Min
Flow Rate @ 3.0 Bar44.00 Litres/Min

Shower Handset Fitting Instructions
Type : PDF Size : 193.88 KB
Shower Valve Fitting Instructions
Type : PDF Size : 6.71 MB
