Delphi Belgravia Chrome Triple Concealed Shower Set with Large Drencher Head and Slide Rail Kit

Delphi Belgravia Chrome Triple Concealed Shower Set with Large Drencher Head and Slide Rail Kit

This Belgravia bundle is a two-outlet triple concealed shower in polished chrome: a three-handle thermostatic valve, a 300mm solid brass apron rose on a 315mm curved arm, and a 750mm slide rail with a white ceramic handled handset. The middle control sets the temperature and the outer two each open one outlet, so the overhead and the rail can run on their own or both at once.

The wide corner-cut valve plate is the only part standing proud of the tiling once the body is buried. Where a period bathroom has the room for it, this is the set that gives you the drencher and the handset rather than asking you to choose. Valve, head, arm and rail kit are supplied together for one price, outlet elbow included.

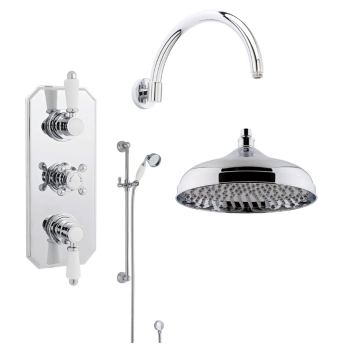

Bundle Contents

• 1 x Delphi Belgravia Chrome 2-Outlet Triple Concealed Shower Valve
• 1 x Delphi Traditional Chrome Fixed Shower Head 300mm x 300mm
• 1 x Delphi Curved Chrome Shower Arm 315mm
• 1 x Delphi Traditional Chrome/White Slider Rail Shower Kit (inc Wall Outlet Elbow)

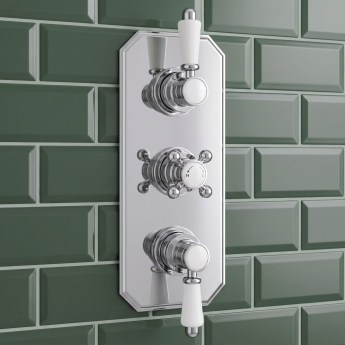

Shower Valve Features

• Three-handle shower valve, including the concealing plate and valve body in one package
• Two outlets, each with its own control, so both accessories run alone or together

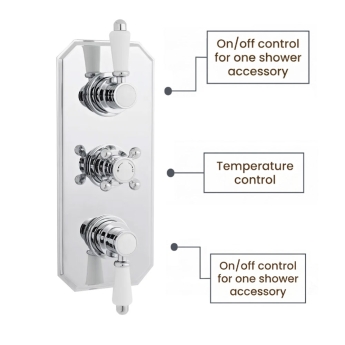

• Three controls: the centre sets the temperature, the outer two open one outlet each
• Thermostatic cartridge holds your set temperature to within 2 to 3 degrees C
• TMV2 approved, so the flow shuts off if the cold supply fails
• WRAS approved for connection to the mains water supply
• Quarter turn ceramic disc cartridge, highly resistant to limescale

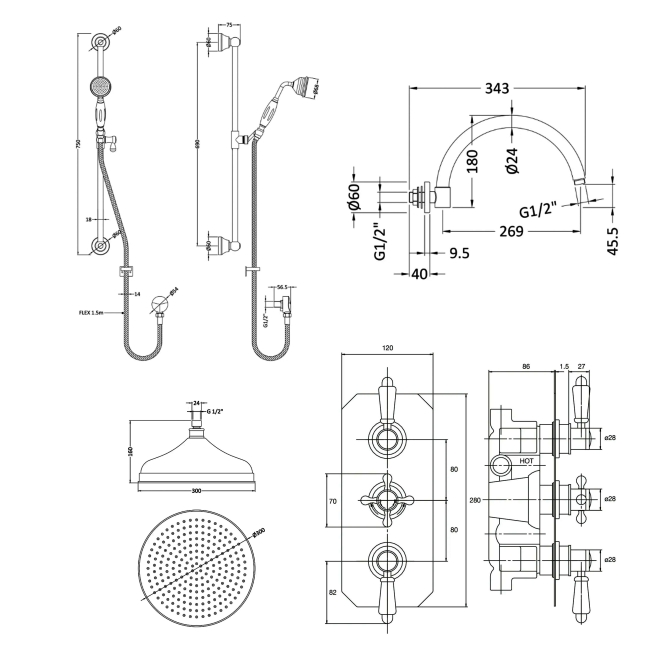

• 280mm x 120mm plate, cut away at the corners, needing a recess 86mm deep
• 15mm inlets, working from a minimum of 0.5 bar
• Chrome finish, matched across every piece in the bundle

Fixed Shower Head and Arm Features

• Extra large 300mm diameter apron rose, a 12 inch traditional head
• Domed body with a stepped banded rim and a recessed spray plate
• 160mm deep overall, reading as a piece of brassware in its own right
• Machined from solid brass, chrome plated, and single function
• One wide, comparatively soft rainfall spray across the full face
• Matching curved arm projecting 315mm from the finished wall on a 60mm round flange
• Solid brass tube with 1/2 inch BSP connections

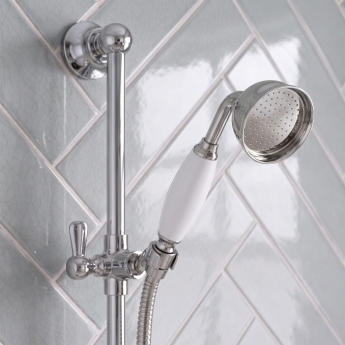

Slide Rail Kit Features

• 750mm rail, 70mm wide, projecting 150mm from the wall
• Lever operated bracket, so the handset locks at any height along the bar
• Single function tapered rose handset with classic white ceramic detailing
• 1500mm flexible shower hose
• Wall outlet elbow included, connecting the kit straight to the concealed valve
• Brass and ABS construction
• 5 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts

Important Information

• This is a two-outlet shower valve designed for two accessories only (both are included).
