Delphi Windsor Chrome Triple Concealed Shower Set with Large Drencher Head and Slide Rail Kit

Delphi Windsor Chrome Triple Concealed Shower Set with Large Drencher Head and Slide Rail Kit

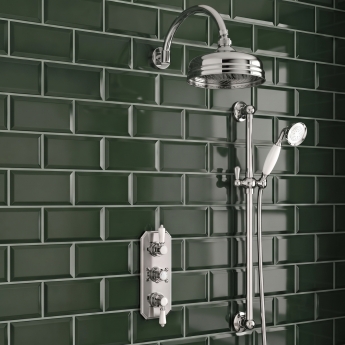

A three handle Windsor shower set in chrome: the concealed valve on its wide stepped plate, a 12 inch apron rose on a 315mm curved arm, and a traditional 750mm slide rail kit. The centre handle holds the temperature and the outer two open each outlet independently, so the drencher and the handset can run at the same time.

That makes it a sound specification for shared and family bathrooms, where two people rarely want the same shower. Valve, drencher head, curved arm and slide rail kit are supplied together for one price.

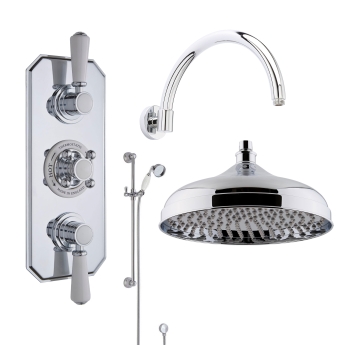

Bundle Contents

• 1 x Delphi Windsor Chrome 2-Outlet Triple Concealed Shower Valve
• 1 x Delphi Traditional Chrome Fixed Shower Head 300mm x 300mm
• 1 x Delphi Curved Chrome Shower Arm 315mm
• 1 x Delphi Traditional Chrome/White Slider Rail Shower Kit (inc Outlet Elbow)

Shower Valve Features

• Three-handle shower valve, including the concealing plate and valve body in one package
• Two outlets, each with its own control, so both accessories run alone or together
• Three controls: the centre one sets the temperature, the outer two open each outlet
• Thermostatic cartridge holds your set temperature to within 1 degree C
• TMV2 approved, so the flow shuts off if the cold supply fails
• WRAS approved for connection to the mains water supply
• Quarter turn ceramic disc cartridge, highly resistant to limescale
• 280mm x 120mm stepped plate, mitred at the corners, needing a recess 86mm deep
• Works from a minimum of 0.5 bar
• Chrome finish, matched across every piece in the bundle

Fixed Shower Head and Arm Features

• 300mm diameter apron rose, a 12 inch traditional head with a domed body and stepped banded rim
• Machined from solid brass, giving it the weight the period styling implies
• Recessed spray plate, keeping the nozzles out of sight from below
• Single function, giving one wide and comparatively soft rainfall spray
• Matching curved arm projecting 315mm from the finished wall on a 60mm round flange
• 1/2 inch BSP connections between arm and head

Slide Rail Kit Features

• 750mm rail, 70mm wide, projecting 150mm from the wall
• Lever operated bracket, so the handset locks at any height along the bar
• Single function tapered rose handset with classic white ceramic detailing
• 1500mm flexible shower hose
• Wall outlet elbow included, connecting the kit straight to the concealed valve
• Brass and ABS construction
• 5 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts

Important Information

• This is a two-outlet shower valve designed for two accessories only (both are included).
