Delphi Belgravia Chrome Triple Concealed Shower Set with Fixed Head and Slide Rail Kit

Delphi Belgravia Chrome Triple Concealed Shower Set with Fixed Head and Slide Rail Kit

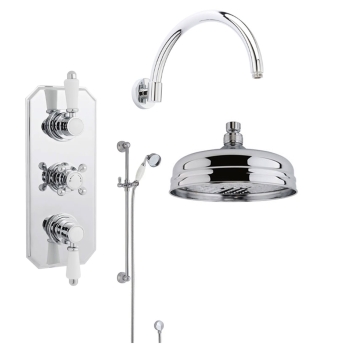

A three-control Belgravia shower bundle in polished chrome, running a 200mm traditional apron rose on a 315mm curved arm alongside a 750mm slide rail and its white ceramic handled handset. Temperature comes from the centre handle and each outlet has its own on-off control, so the head and the handset can be used separately or together.

The domed, banded overhead is sized for a normal ceiling and sits far less heavily above a bath than a twelve inch rose would. The wide cut-away valve plate is the only thing standing proud of the tiling, and valve, head, arm and rail kit are supplied as one purchase.

Bundle Contents

• 1 x Delphi Belgravia Chrome 2-Outlet Triple Concealed Shower Valve
• 1 x Delphi Traditional Chrome Fixed Shower Head 200mm x 200mm
• 1 x Delphi Curved Chrome Shower Arm 315mm
• 1 x Delphi Traditional Chrome/White Slider Rail Shower Kit (inc Wall Outlet Elbow)

Shower Valve Features

• Three-handle shower valve, including the concealing plate and valve body in one package
• Two outlets, each with its own control, so both accessories run alone or together
• Three controls: the centre sets the temperature, the outer two open one outlet each
• Thermostatic cartridge holds your set temperature to within 2 to 3 degrees C
• TMV2 approved, so the flow shuts off if the cold supply fails
• WRAS approved for connection to the mains water supply
• Quarter turn ceramic disc cartridge, highly resistant to limescale

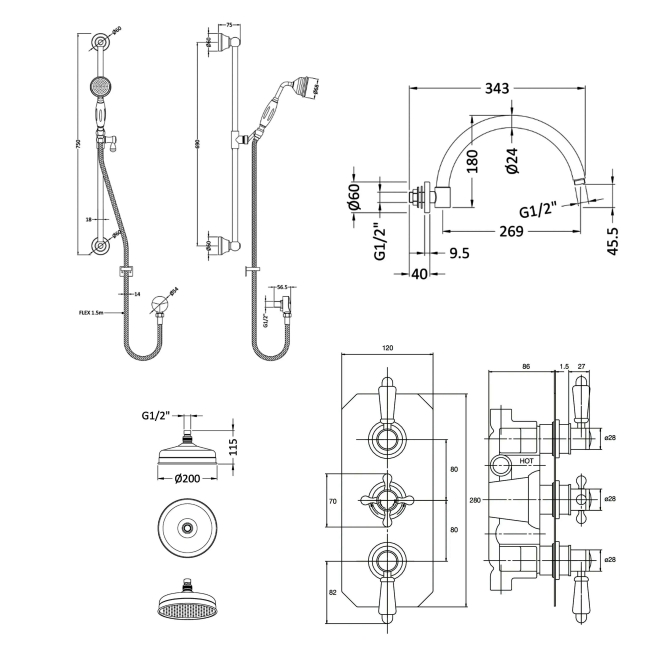

• 280mm x 120mm plate, cut away at the corners, needing a recess 86mm deep
• 15mm inlets, working from a minimum of 0.5 bar
• Chrome finish, matched across every piece in the bundle

Fixed Shower Head and Arm Features

• 200mm diameter apron rose, an 8 inch traditional head, 115mm deep
• Domed body with a stepped banded rim and the nozzles hidden beneath it
• Machined from solid brass, chrome plated, and single function
• One soft, wide rainfall spray, with a knurled swivel joint to set the angle
• Matching curved arm projecting 315mm from the finished wall on a 60mm round flange
• Solid brass tube with 1/2 inch BSP connections

Slide Rail Kit Features

• 750mm rail, 70mm wide, projecting 150mm from the wall
• Lever operated bracket, so the handset locks at any height along the bar
• Single function tapered rose handset with classic white ceramic detailing
• 1500mm flexible shower hose
• Wall outlet elbow included, connecting the kit straight to the concealed valve
• Brass and ABS construction
• 5 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts

Important Information

• This is a two-outlet shower valve designed for two accessories only (both are included).
