Delphi Edge Matt Black Dual Concealed Shower Set with Fixed Head and Slide Rail Kit
This Edge bundle is a two-outlet concealed shower in matt black: a dual thermostatic valve, a 200mm square rain head on a 360mm arm, and a 685mm square pencil slide rail kit. Every shape in it is squared off, from the narrow rectangular valve plate and its flat paddle lever to the knife thin chamfered edge of the head and the flat bladed rail sitting only 65mm proud of the wall.
Two controls do everything: one holds the temperature, the other opens the shower and switches the flow between the overhead and the handset. We assembled it for the monochrome shower room, where matt black is meant to stand out hard against pale tiling rather than blend into it. The wall outlet elbow is in the box and the whole set is one price.

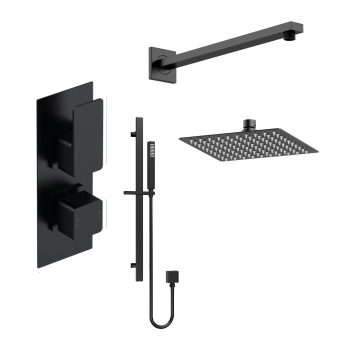

Bundle Contents
- 1 x Delphi Edge Matt Black 2-Outlet Dual Concealed Shower Valve
- 1 x Delphi Square Matt Black Fixed Shower Head 200mm x 200mm
- 1 x Delphi Square Matt Black Shower Arm 360mm
- 1 x Delphi Square Pencil Matt Black Slider Rail Shower Kit (inc Wall Outlet Elbow)
Shower Valve Features
- Two-handle shower valve, including the concealing plate and valve body in one package
- Two outlets with an integrated diverter, feeding the fixed head or the handset kit
- Two controls: one sets the temperature, the other turns the shower on and switches between outlets
- Thermostatic cartridge holds your set temperature to within 2 degrees C
- TMV2 approved, so the flow shuts off if the cold supply fails
- WRAS approved for connection to the mains water supply
- Quarter turn ceramic disc cartridge, highly resistant to limescale
- 215mm x 80mm plate, fitted portrait or landscape, needing a recess 72mm to 85mm deep
- 3/4 inch BSP inlets, working from a minimum of 0.5 bar
- Matt black finish, matched across every piece in the bundle
Fixed Shower Head and Arm Features
- 200mm x 200mm square spray face with a chamfered, knife thin edge
- Stainless steel, which will not rust or tarnish in a shower enclosure
- Rub clean silicone nozzles set in a regular grid
- Single function rainfall spray
- Matching square arm projecting 360mm from the finished wall on a 62mm square flange
- 1/2 inch BSP swivel connector, so the spray angle can be adjusted

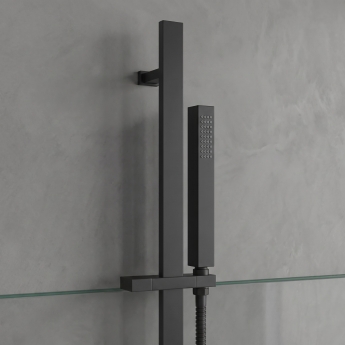

Slide Rail Kit Features
- 685mm rail, projecting just 65mm from the wall
- Handset slides and locks at any height along the bar
- Single function square pencil handset with a flat, easy clean face
- 1500mm flexible shower hose
- Wall outlet elbow included, connecting the kit straight to the concealed valve
- Brass and ABS construction
- 3 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts
Important Information
- This is a two-outlet shower valve designed for two accessories only (both are included).
