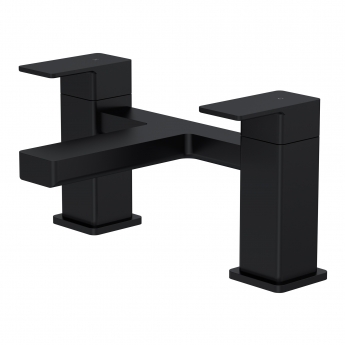

Delphi Fathom Matt Black Bath Filler Tap

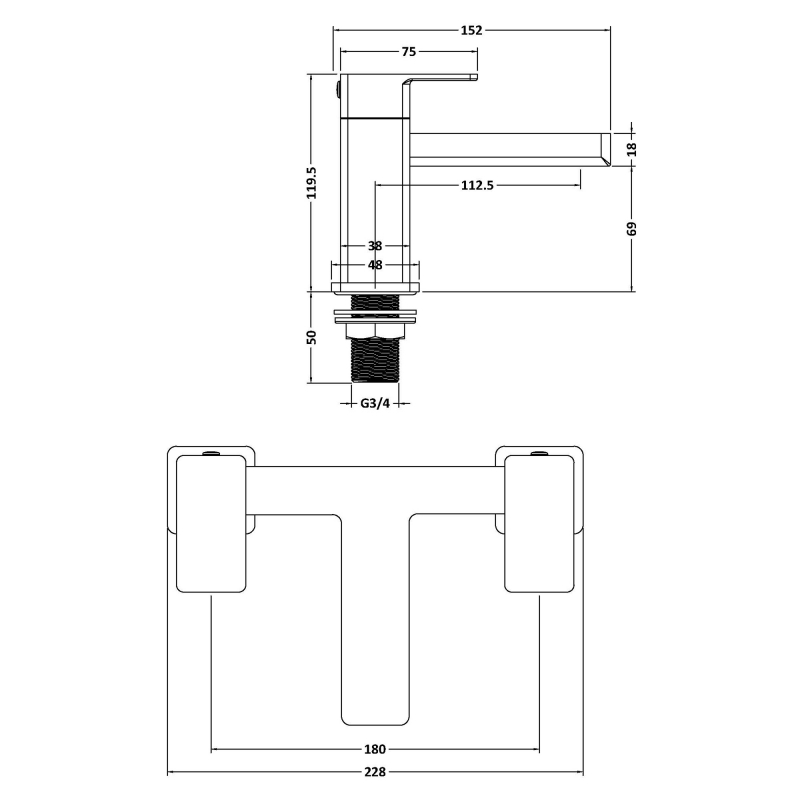

The Fathom bath filler stands two square pillars on the bath deck and links them with a spout that steps out at an angle before running flat across the rim, so the outlet clears the bath edge without a tall body having to do the work. The whole tap is only 120mm high with a 113mm reach and 69mm from base plate to outlet, which keeps a low, level line along the side of the bath. Each handle is a flat paddle turning through a quarter turn on ceramic discs, one hot and one cold, and the pillars sit at 180mm centres on 3/4 inch BSP inlets - the larger bath sizing that lets it fill at a proper rate rather than a trickle. Matt black sets the tap hard against a white bath, which is rather the point - the outline does all the work.
Product Features
- Deck mounted bath filler for a two tap hole bath, with separate hot and cold handles
- Angled, cranked spout steps out over the bath rim and finishes as a flat blade outlet
- Low 120mm profile with a 113mm reach and 69mm from the base plate to the outlet
- 180mm tap hole centres - check this against the drillings in your bath before ordering
- Flat paddle handles on quarter turn ceramic disc valves - fully open in a quarter turn, no winding
- Brass body weighing 1.70kg, finished in matt black
- 3/4 inch BSP inlet connections, the larger bath size, for a faster fill
- Needs 1.0 Bar minimum, so it suits combination boilers, unvented cylinders and pumped systems
- Delivers 21.4 litres per minute at 1.0 Bar and 30.3 litres per minute at 2.0 Bar
- Matching basin mixer, high rise tall basin mixer and bath shower mixer available in the range
- Backed by a 5 year manufacturer guarantee (subject to terms)
Important Information
- Bath waste not supplied - several options are available separately, and the waste shown fitted in the photograph is not part of this product
