Delphi Solo Chrome Manual Concealed Shower Set with Fixed Head

Delphi Solo Chrome Manual Concealed Shower Set with Fixed Head

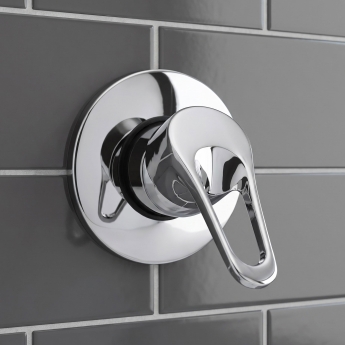

The Solo set is the simplest shower we build, put together for a second bathroom or a rental where one lever and one spray is all that is wanted. A compact 117mm round plate carries a single sculpted loop lever, and a flat 200mm round disc sits overhead on a curving arm.

The concealed manual valve is lifted to start the shower and turned to set the temperature, and it feeds the single overhead outlet. Valve, 200mm head and 335mm round arm are supplied together in chrome for one price.

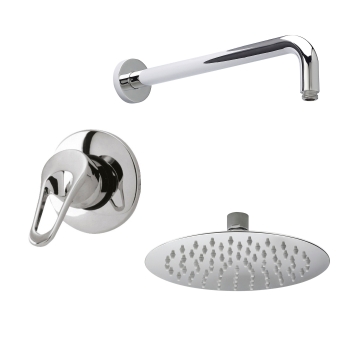

Bundle Contents

• 1 x Delphi Solo Chrome 1-Outlet Manual Concealed Shower Valve
• 1 x Delphi Round Chrome Fixed Shower Head 200mm x 200mm
• 1 x Delphi Round Chrome Shower Arm 335mm

Shower Valve Features

• Single-handle shower valve, including the concealing plate and the solid brass valve body in one package
• One outlet, feeding the fixed head on its arm supplied in this bundle
• A single lever sets flow and temperature together: lift it on, then rotate to adjust
• A manual mixer, so the temperature is set by hand each time
• Single lever cartridge for smooth, progressive control of flow and temperature
• Compact 117mm round plate, taking up very little tiled area
• 15mm inlets, working from a minimum of 0.5 bar
• Chrome finish, matched across every piece in the bundle

Fixed Shower Head and Arm Features

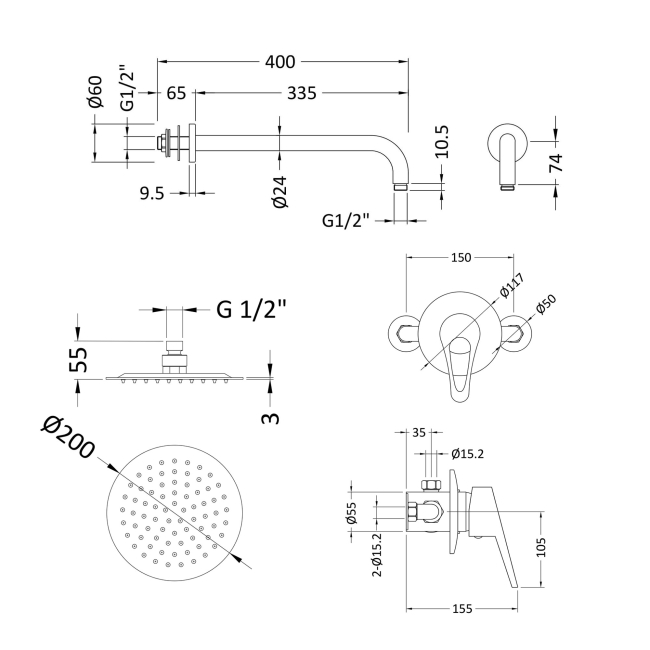

• 200mm diameter round spray face, flat and slim at just 55mm deep
• Stainless steel, which will not rust or tarnish in a shower enclosure
• Flexible silicone nozzles in concentric rows, rubbed clean of limescale by hand
• Single function rainfall spray on a 1/2 inch BSP swivel connector
• Matching round arm projecting 335mm from the finished wall on a 60mm circular flange
• Solid brass arm sweeping through 90 degrees to a downward facing outlet
• 5 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts

Important Information

• This is a one-outlet shower valve designed for one accessory only (included).
