Delphi Turbine Chrome Triple Concealed Shower Set with Fixed Head and Handset
This Turbine bundle is a two-outlet triple concealed shower in chrome, pairing a three-handle thermostatic valve with a flat 200mm rainfall disc on a 335mm arm and a slim pencil handset in a fixed round bracket. The overhead and the handset each get their own on-off wheel, so they can run alone or both at once.
The valve plate stretches to 280mm to take the extra wheel but stays only 80mm deep, with the same knurled spoked handles across it. We put it together for a larger enclosure where running both is actually worth doing. Valve, head, arm and handset set are supplied together for one price.

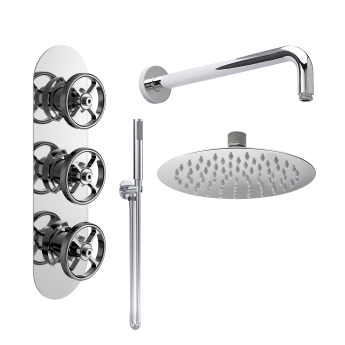

Bundle Contents
- 1 x Delphi Turbine Chrome 2-Outlet Triple Concealed Shower Valve
- 1 x Delphi Round Chrome Fixed Shower Head 200mm x 200mm
- 1 x Delphi Round Chrome Shower Arm 335mm
- 1 x Delphi Round Pencil Chrome Shower Handset (inc Bracket, Hose and Wall Outlet Elbow)

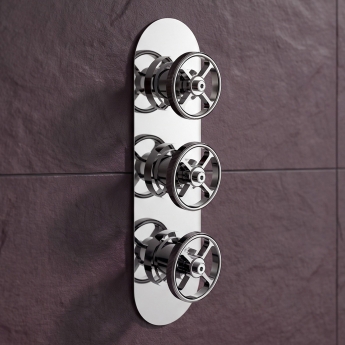

Shower Valve Features
- Three-handle shower valve, including the concealing plate and valve body in one package
- Two outlets, each with its own control, so both accessories run alone or together

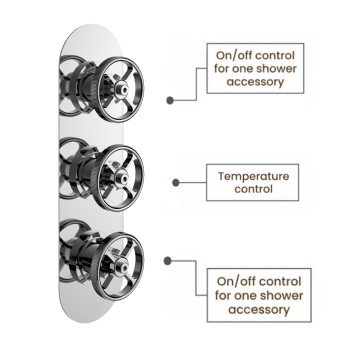

- Three controls: the centre sets the temperature, the outer two open one outlet each
- Thermostatic cartridge holds your set temperature steadily as household pressure shifts
- TMV2 approved, so the flow shuts off if the cold supply fails
- WRAS approved for connection to the mains water supply
- Quarter turn ceramic disc cartridge for smooth, precise control
- 280mm x 80mm oval plate, needing a recess 72mm to 85mm deep
- 15mm inlets, working from a minimum of 0.5 bar
- Chrome finish, matched across every piece in the bundle
Fixed Shower Head and Arm Features
- 200mm diameter round spray face, flat and only 55mm deep
- Stainless steel, which will not rust or tarnish in a shower enclosure
- Rub clean silicone nozzles laid out in concentric rows
- Single function rainfall spray
- Matching round arm projecting 335mm from the finished wall on a 60mm round flange
- Solid brass tube with a 1/2 inch BSP swivel connector, so the spray angle can be set
Handset and Bracket Features
- Single function round pencil handset with a slim cylindrical body
- Wall bracket fixed at one height, incorporating the water outlet
- Handset lifts out for rinsing and parks straight back, with no height adjustment
- 1500mm flexible shower hose
- Brass and ABS construction with 1/2 inch BSP connections
- 5 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts
Important Information
- This is a two-outlet shower valve designed for two accessories only (both are included).
