Delphi Windsor Chrome 1-Outlet Concentric Concealed Shower Valve

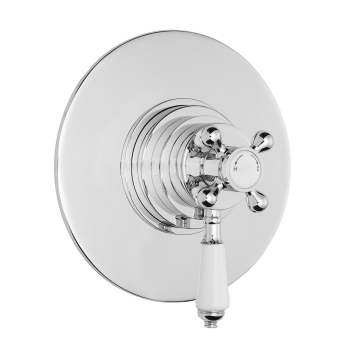

This Delphi Windsor concealed shower valve in chrome stacks its two controls on one spindle, a crosshead for the temperature above a white ceramic lever that opens and closes the flow. The round plate measures 196mm by 185mm and feeds a single outlet, whether that is a fixed head on an arm or a slider rail kit. The body and all the pipework sit behind the wall, so only the plate and handles break the tiling.
Product Features
- Two-handle shower valve, including the chrome concealing plate and the solid brass valve body
- One outlet, feeding one accessory: a fixed head on an arm or a slider rail kit
- Concentric spindle: crosshead sets the temperature, lever beneath opens and closes the flow
- Thermostatic cartridge holds your set temperature to within 1 degree C
- Shuts off if the hot or cold supply fails, so it cannot run scalding hot
- Quarter turn ceramic disc cartridge, precise and limescale resistant in hard water
- Reversible: turn the cartridge 180 degrees instead of re-piping crossed supplies
- 196mm x 185mm plate, needing a recess 70mm deep, 1/2 inch BSP inlets
- Works from a minimum of 0.1 bar
- Delivers 5.5 litres per minute at 0.1 bar, 14.5 at 0.5 bar, 22 at 1.0 bar
- 5 year guarantee against faulty workmanship and materials, with 12 months on serviceable and moving parts
Important Information
- Supplied as the valve only; the shower head, arm, handset or shower kit it feeds are bought separately
