Designed to last, Geberit Delta frames incorporate tried and tested materials which will serve you for years to come. Installed 60 million times over the past 60 years, Geberit concealed cisterns and flush plates represent the ultimate tried and tested solution.
60 years of Geberit research and development in concealed cisterns have been applied into this Delta frame & cistern from Geberit. The result is an elegant yet simple product with market leading functionality, giving you confidence in every flush, and peace of mind regarding its durability and ease of installation.
Dual flush with volume adjustment options to help save water
Leakproof due to one piece blow moulded cistern
Compatible with all Geberit flush buttons
Every blow moulded cistern is factory-made leak tested, therefore there are no unnecessary sealings or leakage of the cistern for maximum operational reliability
25 Year spare parts Guarantee
Reasons to Choose a Geberit Frame:
Product Features
- Very Strong: No wobbling or vibrations - strength-tested to bear a weight of up to 63 stone (400kg) when paired with a Geberit toilet pan
- Durable: Installed 60 million times over the past 60 years, Geberit concealed cisterns represent the ultimate tried-and-tested solution
- Hygiene: No pedestal and no cistern in front of the wall means no exposed pipework for dirt and bacteria to hide
- Simple Maintenance: Simply remove the flush plate for access to all important parts. Geberit stock spare parts for 25 years
- Tested Impermeability: Every Geberit cistern is individually tested to guarantee water tightness
- Acoustic solutions with the Duofix frame mean it's all quiet behind the scenes
- For drywall construction
- For installation in part-height prewall installations

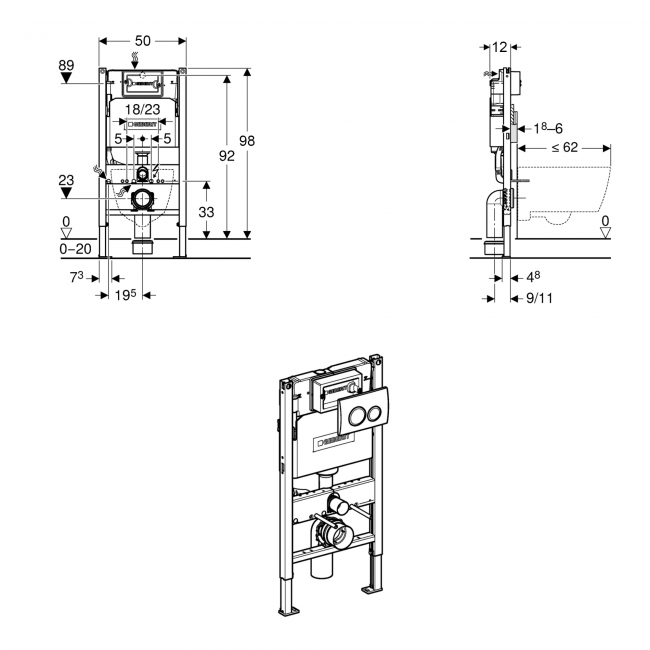

- For wall-hung WCs with connection dimensions in accordance with EN 33:2011
- For wall-hung WCs with projection up to 62cm
- For floor constructions 0-20cm
- WRAS approved
- Self-supporting frame, powder-coated
- Frame with diameter 9mm drilling holes for fastening in wood frame construction
- Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
- Feet adjustable 0-20cm
- Connection bend can be mounted without tools
- Concealed cistern with front actuation, fully insulated against condensation
- Cistern fulfils standard requirements in accordance with EN 14055, Class II
- Immediate post flush possible with factory setting
- Water supply connection on the rear or top centre
- With conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
- Fastening option for electrical connection
- Maximum operating temperature, water 25 degree C
- Flush volume, factory setting 5.8 and 3l
- Flush volume large, adjustment range 4.5 / 6 / 7.5l
- Flush volume small, adjustment range 3-4l
- Delta20 Chrome Flush Plate
- Angle stop valve R 1/2", compatible with MF, with adapter ring
- Protection box for service opening
- 2 distance bolts, 2 wall anchors
- Connection set for WC, diameter 90mm
- Connection bend 90 degree made of PE-HD, diameter 90mm
- Adaptor socket made of PE-HD, diameter 90 / 110mm
- 2 protection plugs, 2 threaded rods M12
- Fastening material
- Guarantee: 10 Year on Duofix and Concealed cisterns, 5 year on Flush plate (25 Year on spare parts)
