Intamix Thermostatic Mixing Valve 22mm with Service Valves and Test Point Intamix Thermostatic Mixing Valve 22mm with Service Valves and Test Point
Intamix Thermostatic Mixing Valve 22mm with Service Valves and Test Point Intamix Thermostatic Mixing Valve 22mm with Service Valves and Test Point

Intamix Thermostatic Mixing Valve 22mm with Service Valves and Test Point

Quick Code: 2746664
Ref: NT400MZ22CP
Inta
£145.95 Inc. VAT

Special offer - available at a new lower price for a limited time

Was: £

PayPal Credit
Spread the cost with 12 monthly payments of £12.16 at 0% APR using PayPal.

In Stock

Usually delivered within 3 working days

Free Delivery Available

Delivery postcode restrictions apply

Check

The Intatec range of 15mm and 22mm thermostatic mixing valves is designed primarily for single outlet use. It delivers safe, blended hot water to taps, showers, bidets and other water outlets, making it ideal for use in hospitals, schools and leisure centres. The element that controls the temperature of the mixed water discharging from the valve works proportionally on both hot and cold water supplies in order to maintain the temperature of the mixed water discharged.

Product Features

  • One Valve To Suit All Applications
  • One Piece Cartridge Construction For Ease Of Maintenance And Replacement
  • High Flow Rates With Low Pressure Drops
  • 15mm & 22mm Versions Available
  • TMV3 Approved - Complies With Nhs Estate D08 & Bs7942: 2000
  • TMV2 Approved - Complies With BSEN1111 & BSEN1287: 1999
  • Building Regulations Part G Compliant
  • Robust And Reliable
  • Easy Installation
  • Integral Check Valves And Strainers
  • Available With Isolation Ball Valves And Test Ports
  • Integral Check Valves And Strainers
  • Highly Resistant To Scaling
  • Anti tamper proof head
  • Comes with a 1 year guarantee from the manufacturer
Show More

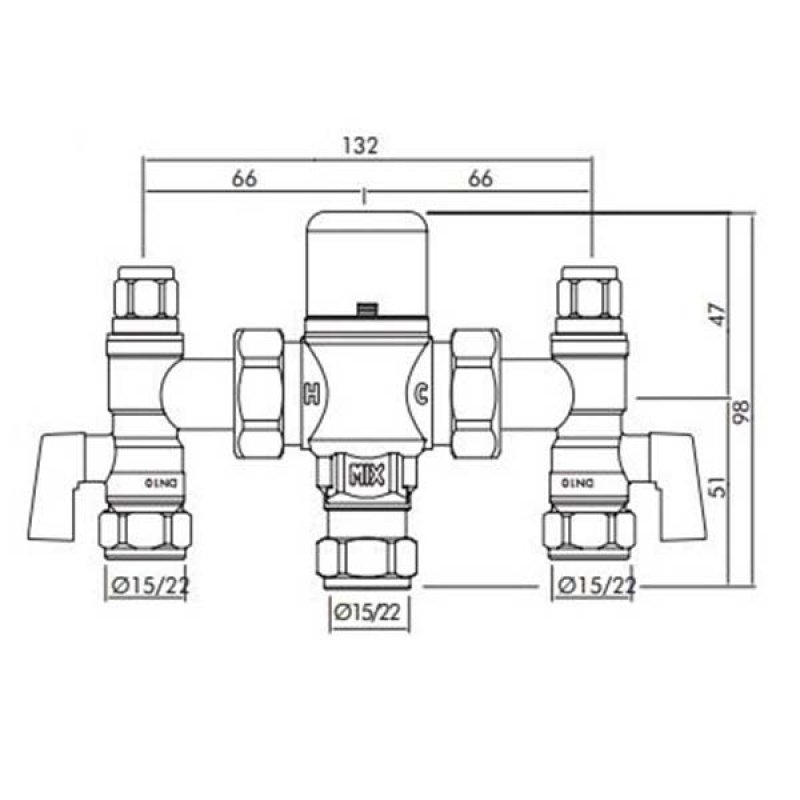

TypeMixing Valve
Height98mm
Width132mm
Depth15mm
Max Inlet Temperature85ºC
Max Pressure Inlet Differential5:1
Max Working Pressure Static10 Bar
Min Inlet Pressure Dynamic0.2 Bar
Min Temp To Achieve Failsafe10ºC
Temperature Adjustment Range30ºC - 50ºC
Temperature Stability±2ºC
Manufacturer Part Number400MZ22CP
Show More

Fitting Instructions
Type : PDF Size : 423.59 KB
Technical Datasheet
Type : PDF Size : 1,014.88 KB
Brochure
Type : PDF Size : 36.29 MB
