Joule Cyclone Standard High Gain Indirect Unvented Cylinder 500 Litre - Stainless Steel | Product Image

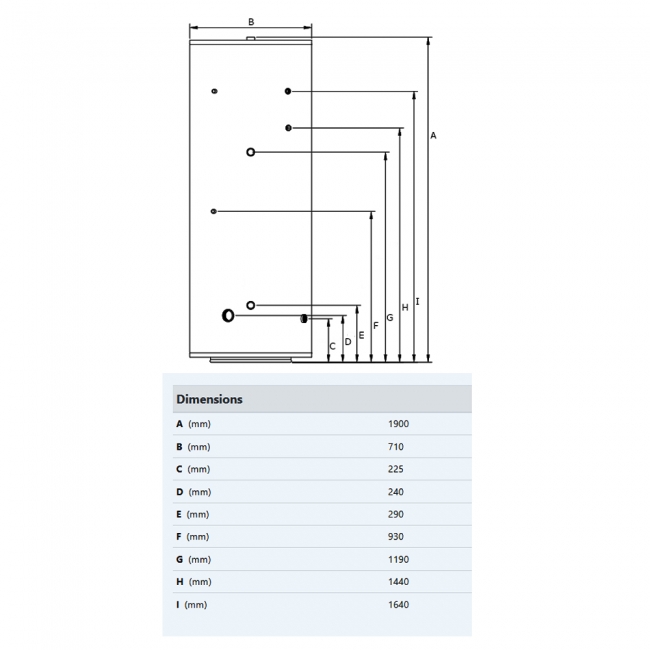

Joule Cyclone Standard High Gain Indirect Unvented Cylinder 500 Litre - Stainless Steel | Dimension Image

Joule Cyclone Standard High Gain Indirect Unvented Cylinder 500 Litre - Stainless Steel

Name: Joule Cyclone Standard High Gain Indirect Unvented Cylinder 500 Litre - Stainless Steel
Brand: Joule
SKU: JHTCIMVH0500LFC
Price: 2712.95 GBP
Availability: OutOfStock

Quick Code: 2845492

Ref: JHTCIMVH0500LFC

(No Reviews)

£2,712.95 Inc. VAT

Spread the cost with 36 monthly payments of £86.88 at 9.9% APR using PayPal.

Find out more

Unavailable

Temporarily Unavailable

This product is not currently available

Free Delivery Available

Delivery postcode restrictions apply

Check

Product Features

The Joule unvented cylinder is designed to work with any air to water heat pump
Joule cylinder efficiently heats water using air-sourced energy
The Joule UK Cyclone cylinder with work with any heatpump in the UK
Manufactured from high grade Duplex stainless steel
Fitted with a plastic T & P outer casing and colour coded tapping collars
Factory pre built gas or oil boiler ready
Guarantee: 25 Year (1 Year guarantee on expansion vessel and cold water controls and all other components that are fitted to or supplied with the unit)

Returns Notice

We are unable to accept returns of this item once the packaging has been opened, unless the product is damaged or faulty.

Cylinder Type	Standard
System	Unvented
Heating Type	Indirect
Cylinder Height	1900mm
Cylinder Diameter	710mm
Capacity	500 Litre
Actual Capacity	495 Litre
Coil 1 Rating	60 kW
Coil 1 Max Prim Pressure	3.5 Bar
Orientation	Vertical
Immersion Spec	3kW@230V
Max Mains Water Pressure	10 Bar
Operating pressure	7 Bar
Tested to Standard	BS EN 12897:2016
Number of Heat Exchangers	1
Number of immersions	1
ErP Class	C
Coil Material	316L Stainless Steel
Cylinder Material	LDX 2101
Outer Casing	Coated Mild Steel
Unit Weight Empty	131 Kg
Unit Weight Full	631 Kg
Thermal Insulation	Dense PU Foam
Foam Thickness	50mm
Operating Temp	60 Celcius
Safety Valve Temp	90 Celcius
Heat Loss	2.76
Coil 1 Surface Area	4 Meter Square
Coil 1 Resistance	0.1 Bar
Brand	Joule
Collection	Cyclone
Style	Modern
Market	Domestic
Manufacturer Part Number(s)	TCIMVH-0500LFC

Brochure

Type : PDF Size : 8.80 MB
