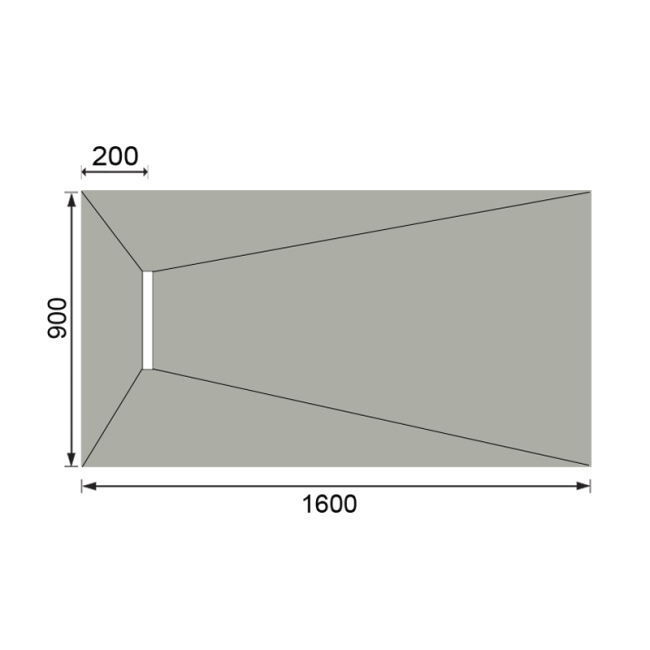

ProTray Linear End Drain Wet Room Former Tray - 1600mm x 900mm
With a 300mm slimline drain outlet location positioned at one end of the tray, the ProTray Linear is the pinnacle of contemporary wet room design. This level access floor former is a lightweight option that can even be trimmed to size with a hand saw. The 30mm thick floor former is manufactured from an expanded polystyrene core with a waterproof surface. Suitable for level access or surface mounted installation. Manufactured in the UK.
The ProTray must be installed with an official installation kit and linear tiled floor waste - both parts available separately.
Product Features
- Level access wet room shower tray floor former measuring 1600mm x 900mm
- End linear drain position - a premium design for minimalist, contemporary spaces
- Lightweight solution - manufactured from an expanded polystyrene (XPS) core
- Waterproof coating - ready to be tiled directly on top of
- Suitable for all sizes and thicknesses of tiles
- 30mm thickness - suitable for level access or surface mounting on existing floors
- Versatile tray - can be trimmed up to 100mm with a fine tooth handsaw
- Suitable for timber floors but requires underboarding - not self-supporting
- Compatible with specialised 300mm wide linear gravity waste (sold separately)
- Linear waste drain area measures 300mm x 50mm
- Manufactured in the UK by a market leader in wet rooms
- Includes 15 year guarantee when installed with the required installation kit (sold separately)
Installation Kit Features
- 5kg KST flexible tile adhesive
- 5m waterproofing tape
- 2 x Internal Corners
- Pro-Seal Tape sealing compound
- 0.25l Wood floor Primer
- Paint Brush
- Nylon Gloves
- Plastic bucket (can be used for mixing)
Wet Room Drain Features
- 2 stylish linear waste options: stainless steel or integrated tile insert
- Slimline rectangular design with 300mm x 50mm footprint
- Reversible for multi-directional waste flow
- 50mm deep seal trap
- Up to 42 litres per minute flow rate
Important Information
- Requires installation kit (Code: PWPTWPKIT) to activate 15-year guarantee - kit sold separately
- Must be installed with a 300mm linear tiled waste drain - available separately
- Additional waterproofing accessories are available separately
- Recommended compatible backer board size: 10mm (available separately)
