Sagittarius Ergo Concealed Shower Valve Concentric Dual Handle - Chrome Sagittarius Ergo Concealed Shower Valve Concentric Dual Handle - Chrome
Sagittarius Ergo Concealed Shower Valve Concentric Dual Handle - Chrome Sagittarius Ergo Concealed Shower Valve Concentric Dual Handle - Chrome

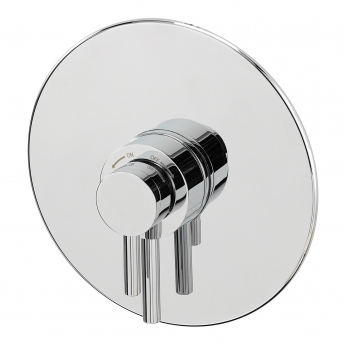

Sagittarius Ergo Concealed Shower Valve Concentric Dual Handle - Chrome

Quick Code: 2676943
Ref: SAGEL574C
Sagittarius
£317.95 Inc. VAT

Special offer - available at a new lower price for a limited time

Was: £

PayPal Credit
Spread the cost with 12 monthly payments of £26.50 at 0% APR using PayPal.

In Stock

Usually delivered within 2 working days

Free Delivery Available

Delivery postcode restrictions apply

Check

The Sagittarius Ergo Concealed Shower Valve Concentric, Dual Handle, Chrome is part of the stylish Sagittarius Ergo Shower Valve Range, made to meet TMV2 standards and finished in mirror polished chrome, this shower would help bring your shower to life. This concealed shower valve superior quality material is thermostatically controlled to offer you safe, peaceful and suitable for use with combi-boilers. Products from sagittarius are manufactured to the highest standards, which include BS5412, BS1010, TMV2 & TMV3.

Product Features

  • Shower valve supplies water to 1 outlet
  • Manufactured from solid brass material for longevity
  • Thermostatic control for safety and peace of mind
  • Temperature Pre-set maximum at 62.7 degree celsius
  • Automatic shut off in the event of hot or cold water supply
  • 15mm Compression connection
  • Includes round backplate
  • Single outlet only
  • Twin handle valve only
  • Portrait wall mounted installation and contemporary design
  • Suitable for high and low pressure systems
  • Suitable for combi boiler
  • Manufactured to comply with WRAS,TMV2 and BSEN 1111
  • Chrome plated to BS EN248
  • Guarantee :10 Year (3 year on serviceable parts) for Warranty Information See Product Documents
Show More

Shower TypeThermostatic
Shower Valve Controls2
Shower Valve PositionConcealed
Valve ShapeRound
Handle TypeLever
Shower Valve Outlets1
Minimum Pressure0.5 Bar
Maximum Pressure6.0 Bar
Shower Valve Height196.1mm
Shower Valve Width196.1mm
Shower Valve Depth60-82mm
Inlet connection Size15mm
Connection Centres130-160mm
MaterialBrass
ColourChrome
BrandSagittarius
CollectionErgo
StyleModern
MarketDomestic
Flow Rate - 0.5 Bar5.7 l/min
Flow Rate - 1.0 Bar12.4 l/min
Flow Rate - 2.0 Bar19.6 l/min
Flow Rate - 3.0 Bar25.0 l/min
Flow Rate - 4.0 Bar29.6 l/min
Flow Rate - 5.0 Bar33.0 l/min
Manufacturer Part NumberEL/574/C
Show More

Guarantee Overview
Type : PDF Size : 379.16 KB
Product Datasheet
Type : PDF Size : 4.70 MB
Sagittarius Plumbing System
Type : PDF Size : 2.62 MB
Terms and Warranty
Type : PDF Size : 211.32 KB

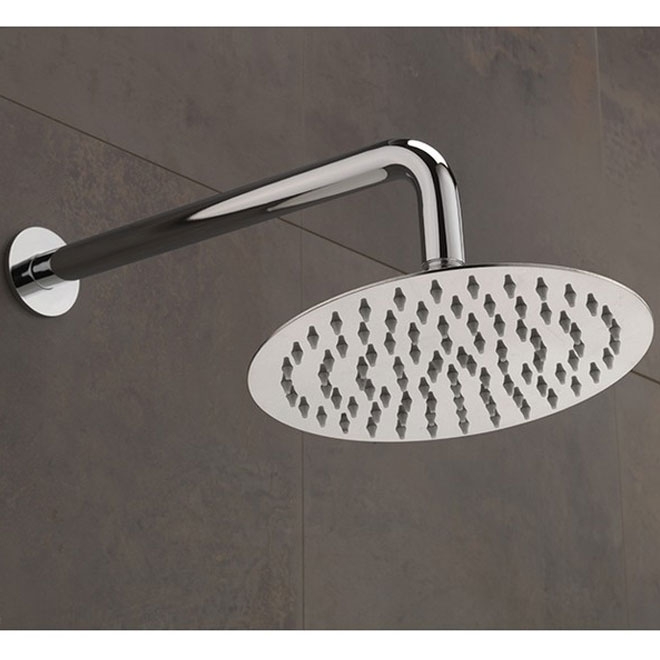

Recommended Shower Head with Arm
