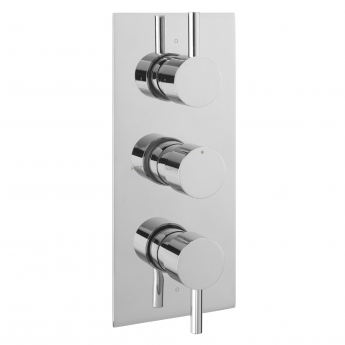

Sagittarius Ergo Concealed Shower Valve with 3-Way Diverter Triple Handle - Chrome | Product Image

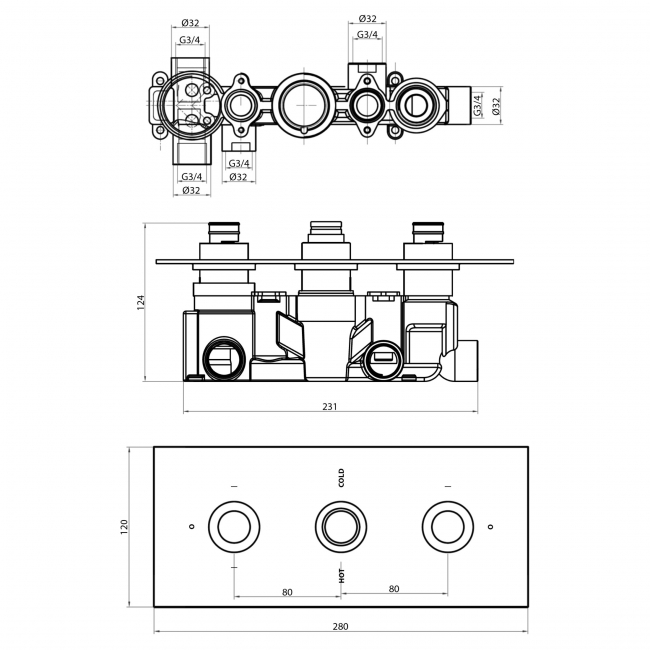

Sagittarius Ergo Concealed Shower Valve with 3-Way Diverter Triple Handle - Chrome | Dimension Image

Sagittarius Ergo Concealed Shower Valve with 3-Way Diverter Triple Handle - Chrome

Name: Sagittarius Ergo Concealed Shower Valve with 3-Way Diverter Triple Handle - Chrome
Brand: Sagittarius
SKU: SAGEL578C
Price: 401.95 GBP
Availability: InStock

Quick Code: 2769807

Ref: SAGEL578C

(No Reviews)

£401.95 Inc. VAT

You May Need

Add to Basket

In Stock

Usually delivered within 2 working days

Free Delivery Available

Delivery postcode restrictions apply

Check

Product Features

Shower valve supplies water to 3 outlets
Manufactured from solid brass material for longevity
Includes rectangular backplate
Thermostatic control for safety and peace of mind
Thermostatic Polymer - Vernet Cartridge
Temperature Pre-set at 38 degree C with push bush button override to 48 degree C
Automatic shut off in the event of hot or cold water supply
Portrait wall mounted installation and contemporary design
Triple handle valve with diverter
Suitable for combi boilers
Suitable for high pressure system
Manufactured to comply with WRAS,TMV2 and BSEN 1111
Chrome plated to BS EN248
Top control operates two shower outlets, centre adjusts temperature, bottom control operates the other shower outlet
Guarantee :10 Year (3 year on serviceable parts) for Warranty Information See Product Documents

Shower Type	Thermostatic
Shower Valve Controls	3
Shower Valve Position	Concealed
Valve Shape	Rectangular
Handle Type	Knob/Lever
Shower Valve Outlets	3
Minimum Pressure	1.0 Bar
Maximum Pressure	7.0 Bar
Shower Valve Height	280mm
Shower Valve Width	120mm
Inlet Connection Size	G3/4
Outlet Connection Size	G3/4
Connection Centres	231mm
Valve Orientation	Portrait
Material	Brass
Colour	Chrome
Brand	Sagittarius
Collection	Ergo
Style	Modern
Market	Domestic
EAN Barcode	503481578070
Manufacturer Part Number	EL/578/C

Product Datasheet

Type : PDF Size : 4.32 MB

Guarantee Overview

Type : PDF Size : 379.16 KB

Sagittarius Plumbing System

Type : PDF Size : 2.62 MB

Terms and Warranty

Type : PDF Size : 211.32 KB
