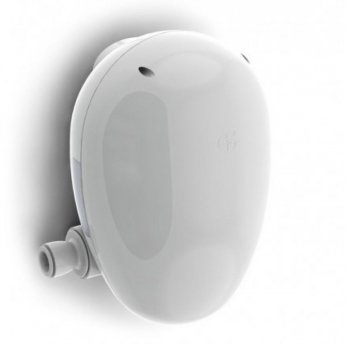

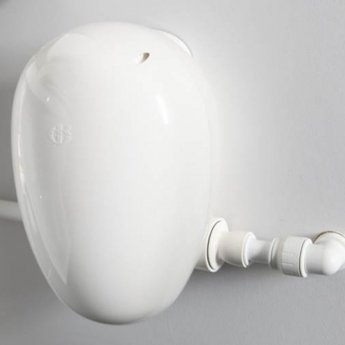

The AKW M17 Digital Waste Pump provides reliability, high performance in operation, is easy to install, quiet and is compatible with AKW's wide range of pumped wastes and trays. The innovative designs of these digital from AKW ensure that your new wet room or disabled shower enclosure can be installed in a whole host of different environments, regardless of drainage constraints.
AKW DigiPump 25451 Waste Water Pump Features:
- Quiet in operation
- Compact, with pump and controller enclosed in one unit
- Easy to install
- Efficient debris clearing
- Pump head uses 4 valves for better debris cleaning
- Pump head can be rotated to allow flow in either direction
- Internal T5A fuse
- Duty cycle 30 mins max on 50% duty
- Compatible with Tuff Form, Braddan, Mullen, Keppel and Multi Spec trays
- Installs directly into the Luda shower
- Suitable for install in zone 1 or zone 2 of a shower room
- Comes with an excellent 5 year guarantee for total peace of mind
AKW DigiPump 25451 Waste Water Pump Specifications:
| Product Type | Waste Pump |
|---|

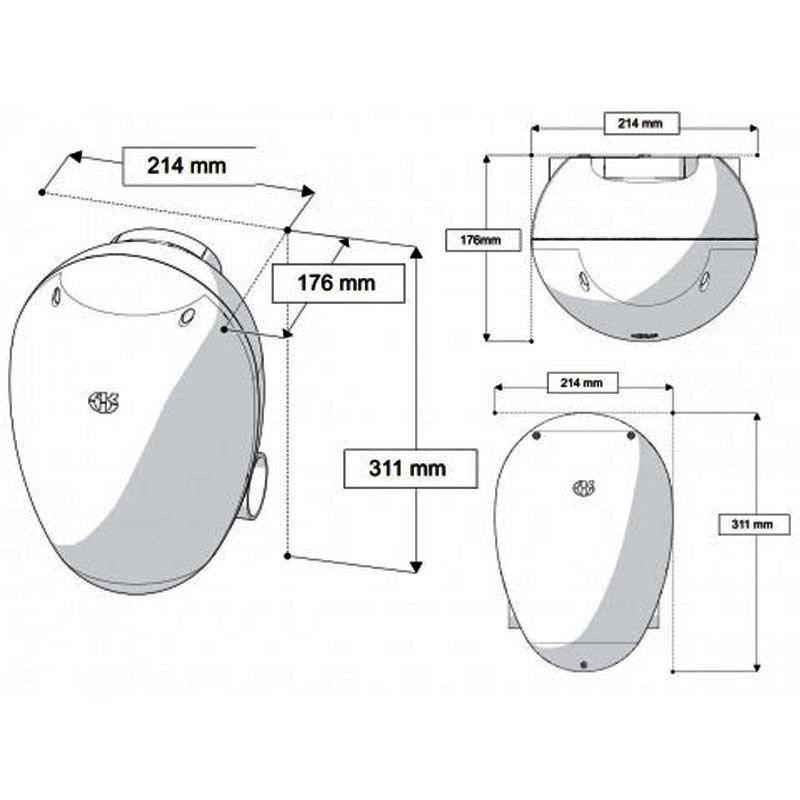

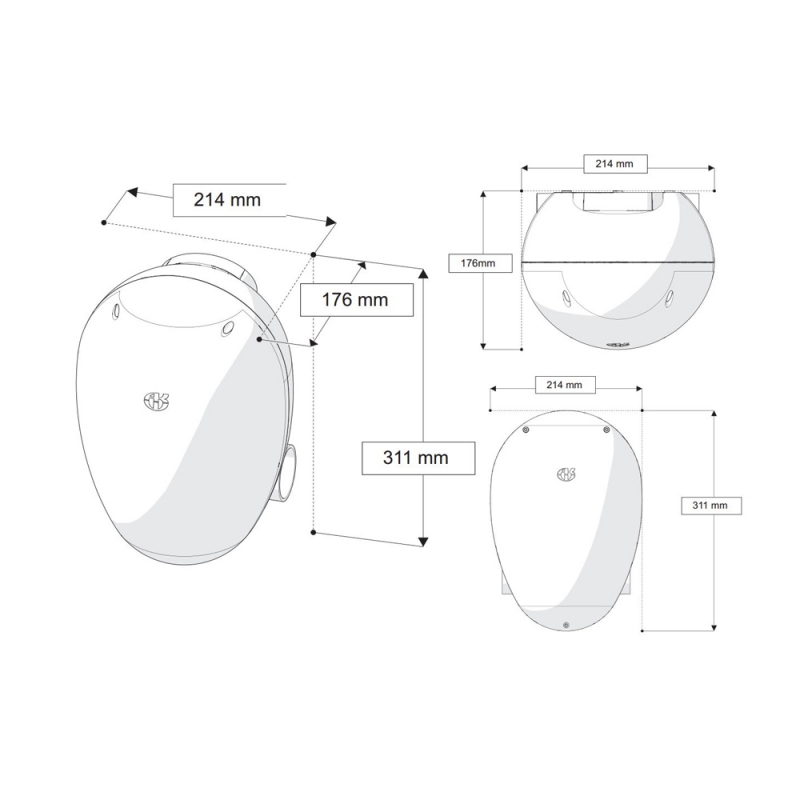

| Height | 311mm |
|---|
| Lenght | 214mm |
|---|
| Depth | 176mm |
|---|
| Inlet Connector | 22mm |
|---|
| Outlet Connector | 22mm |
|---|
| Pump Capacity | 17lpm |
|---|
| Outlet Head | 109m |
|---|
| Inlet Lift | 0.5m |
|---|
| Maximum Combined Head + Lift | 1.5m (59in) |
|---|
| Supply | 230v AC 50Hz 0.80A |
|---|
| Duty Cycle | 30 minutes max on 50% duty |
|---|
| Flow Meter Input | Gems FT110 1000 pulses/litre/min |
|---|
| Material | Plastic |
|---|
| Finish | Chrome |
|---|
| Style | Modern |
|---|
| Manufacturer Part Number | 25451 |
|---|
5 Years Guarantee
