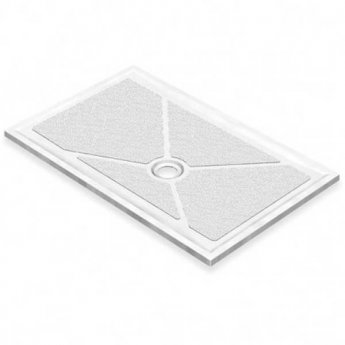

AKW Low Profile Rectangular Shower Tray, 1300mm x 820mm, Non-Handed
AKW Low Profile Rectangular Shower Tray, 1300mm x 820mm, Non-Handed

AKW Low Profile Rectangular Shower Tray, 1300mm x 820mm, Non-Handed

£357.95

Inc. VAT
£498.96 SAVE £141.01 In Stock
Other Sizes Available:
Finance Banner

The AKW Low Profile Rectangular Shower Tray, 1300mm x 820mm, is just 32mm in height, and can be installed in wooden floors for level access, or above the floor for low level access. At just 32mm high, the Low Profile tray is ideal for where level or low access is needed. Suited to wooden floors and one of the easiest trays to install, Low Profile can be fitted for either level or low level access. This product from a well known brand like AKW comes with lifetime guaranteed for complete peace of mind.

Low Profile Shower Tray Summary:


  • All trays have a tolerance of +10mm then +/- 3mm at the bottom and at the top its +6mm then +/- 3mm
  • Waste sold separately (See the You May Need)
  • Easy installation, thanks to offset waste position to avoid joists
  • Non handed - it fits left or right
  • 1800mm trays supplied with a trim to length kit
  • No under tray foaming required
  • Tiling flange supplied
  • Pipe duct kits available
  • Excellent water drainage with a 25mm fall inside the tray
  • Reinforced with steel sections for extra strength
  • A large selection of screens, curtains and rails give real choice
  • Slip resistant surface for added safety
  • Robust and easy to clean
  • Comes with lifetime guarantee for your peace of mind from AKW

Low Profile Shower Tray Specifications:


Shower Tray Type Standard

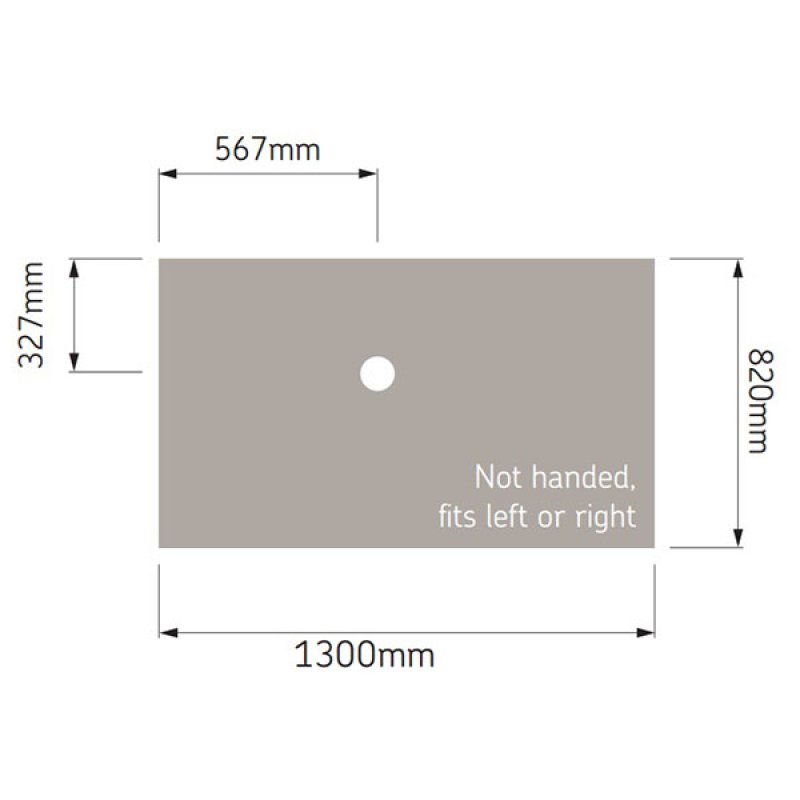

Popular Sizes 1300mm x 820mm
Shower Tray Width 1300mm
Shower Tray Depth 820mm
Shower Tray Height 32mm
Handed Reversible
Waste Position Centre
Outlet Connection Size 25mm
Shape Rectangular
Material GRP
Colour White
Brand AKW
Collection Low Profile
Style Modern
Market Care
Weight 19.9 Kg
EAN Barcode 5055295105713
Manufacturer Part Number 18034

Low Profile Shower Tray Features:


Yes WOODEN FLOORS
This shower tray is suitable for installation on wooden floors
Yes LEVEL ACCESS
This shower tray can be recessed into the floor for level access
Yes SURFACE MOUNTED
This shower tray must be surface mounted
Yes SLIP RESISTANT
This shower tray is slip resistant - perfect for elderly or disabled users
Yes OFFSET WASTE
This shower tray has an offset waste, but is non-handed
Yes CORNER FITTING
This shower tray is suitable for installations in a corner
Yes ALCOVE FITTING
This shower tray is suitable for installations in an alcove

Low Profile Shower Tray Suitability:


Yes Suitable for Wood Floor Installations? No Suitable for Screed Floor Installations?
Yes Suitable for Solid Floor Installations? Yes Suitable for Standard Gravity Waste?
No Suitable for Upward Pumped Waste? No Suitable for Upward Discharge Waste?
Yes Suitable for Corner Installations? Yes Suitable for Alcove Installations?

Low Profile Shower Tray Waste Options:


AKW Tray Waste Option GW90 90MM DIAMETER GRAVITY WASTE
Choose option with Gravity Waste in Product Options Tab
The GW90 gravity waste includes a 50mm water trap and is ideal for use with AKW Low Profile, Mullen, Dalby and Keppel Shower Trays.
  • Built-in filter
  • 90mm deep below mounting surface
  • Opens for easy cleaning and rodding
  • 50mm water trap depth (seal)
  • 90mm threaded waste fitting

Low Profile Shower Tray Installation Examples:



Low Profile Shower Tray In Detail:


Available Pipe Duct Kits PIPE DUCT KITS AVAILABLE
Pipe Duct Kits are available to fit on the edge of the tray to avoid re-routing any existing pipework. Please note - requires extra wide compensator.

- Fully waterproof mouldings
- Substantial savings on time and labour costs
- Extra wide compensator required

You can add pipe duct kits to your order under the Product Options tab.
Available Extra Wide Compensators EXTRA WIDE COMPENSATORS AVAILABLE
Extra Wide Compensators have been designed to give approximately 50mm additional width to a standard shower screen enclosure area. They are also suitable for use with pipe duct kits where pipes have been boxed in.

- Width: 141mm
- Height: 750, 900, or 1880mm
- Giving 50mm additional width

You can add compensators to your order under the Product Options tab.
AKW Low Profile Rectangular Shower Tray, 1300mm x 820mm, Non-Handed
AKW Low Profile Rectangular Shower Tray, 1300mm x 820mm, Non-Handed
(AKW18034)
£357.95
Suitable Shower Tray Waste
Suitable Shower Screen
Suitable Pipe Duct Kit
AKW Pipe Duct Kit 1 (Straight) for Low Profile/Braddan/Sulby
AKW Pipe Duct Kit 1 (Straight) for Low Profile/Braddan/Sulby
(AKW25038)
£38.95
AKW Pipe Duct Kit 2 (Corner) for Low Profile/Braddan/Sulby
AKW Pipe Duct Kit 2 (Corner) for Low Profile/Braddan/Sulby
