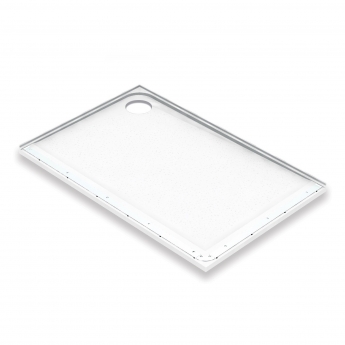

The AKW Mullen Rectangular Shower Tray 1300mm x 700mm uses the patented integrated edging strip Intergrip to clamp and seal the flooring into the tray edge.
Designed for quick and easy installation, the AKW Mullen Rectangular Shower Tray 1300mm x 700mm comes with pre-formed fixing holes and built-in tiling upstands.
Manufactured from compressed GRP, the Mullen has unrivalled strength and stability.
Mullen Shower Tray Summary:
- Level access showering
- Corner waste position to avoid joists
- Corner and alcove trays supplied with cut-to-length kits
- Excellent water handling (25mm fall inside tray)
- Optional Gravity & pumped waste sold separately - (See the You May Need)
- Only 27mm recess into floor
- Built in Tiling upstands on 2 or 3 sides complete the all-round integrity of the water seals
- Floor Tiling Adaptor Kit available
- Pipe Duct Kit available
- Alcove Adaptor Kit available
- Integral patented floor clamping system
- No under tray foaming required
- Full selection of screens, curtains and rails available
- Surface mounted with ramp available
|
Mullen Shower Tray Specs:

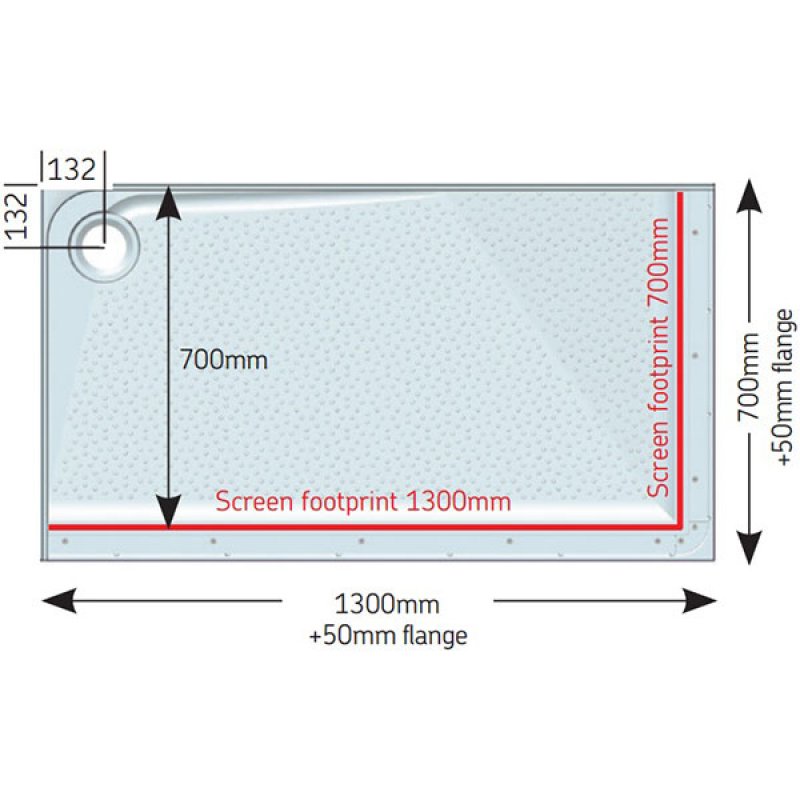

| Overall Dimensions (mm) | 1300 x 700 |
|---|
| Depth (mm) | 27 |
|---|
| Gradient (mm) | 25 |
|---|
| Handing | Left Hand |
|---|
Mullen Shower Tray Features:
 | WOODEN FLOORS
This shower tray is suitable for installation on wooden floors |  | LEVEL ACCESS
This shower tray can be recessed into the floor for level access |
 | SLIP RESISTANT
This shower tray is slip resistant - perfect for elderly or disabled users |  | CORNER WASTE
This shower tray has a corner waste position - left and right handed available |
 | SCREED FLOORS
This shower tray is suitable for installation on screeded floors |  | CORNER FITTING
This shower tray is suitable for installations in a corner |
Mullen Shower Tray Suitability:
 | Suitable for Wood Floor Installations? | | Suitable for Screed Floor Installations? |
 | Suitable for Solid Floor Installations? | | Suitable for Standard Gravity Waste? |
| Suitable for Upward Pumped Waste? | | Suitable for Upward Discharge Waste? |
| Suitable for Corner Installations? | | Suitable for Alcove Installations? |
Mullen Shower Tray Waste Options:
 | GW90 90MM DIAMETER GRAVITY WASTE
Choose option with Gravity Waste in Product Options Tab
The GW90 gravity waste includes a 50mm water trap and is ideal for use with AKW Low Profile, Mullen, Dalby and Keppel Shower Trays.
- Built-in filter
- 90mm deep below mounting surface
- Opens for easy cleaning and rodding
- 50mm water trap depth (seal)
- 90mm threaded waste fitting
|
Mullen Shower Tray Installation Examples:
Mullen Shower Tray In Detail:
CLAMPING STRIPS AVAILABLEOne of the key benefits of the Mullen shower tray is the unique clamping strip (Intergrip) that grips and seals the vinyl flooring into the tray for a watertight seal.
Flooring can be fitted after the tray and screen have been installed - avoiding unnecessary extra site visits.
You can add clamping strips to your order under the Product Options tab.
FLOOR TILING KITS AVAILABLEFloor tiling kits are available to maintain level access showering when using floor tiles. These floor tiling strips fit under the clamping strip tray and tile.
- Fully waterproof mouldings
- Quick installation
- Substantial savings on time and labour costs on site
- Provides a watertight seal
You can add floor tiling kits to your order under the Product Options tab.
WALLBOARD ADAPTOR KITS AVAILABLEWallboard adaptor kits are available for Mullen shower tray to allow easy fittring of 11mm thick wall board.
This wallboard adaptor kit attaches directly to the Mullen tray's built in tiling flange.
- Mitre cut ends
- Quick installation
- Substantial savings no time and labour costs on site
You can add ramp kits to your order under the Product Options tab.
RAMP KITS AVAILABLEMullen trays can be surface-mounted on a screeded floor with the addition of a trimmable ramp for easy access.
These ramps can be installed above or below altro flooring.
- 1500mm surface mounted alcove kit available
- 1800 x 1000mm surface mounted universal kit available
- 1800 x 1000mm underfloor covering universal kit available
You can add ramp kits to your order under the Product Options tab.
PIPE DUCT KITS AVAILABLEMullen Pipe Duct Kits are available to fit on the edge of the tray to avoid re-routing any existing pipework.
Please note - requires extra wide compensator.
- Fully waterproof mouldings
- Substantial savings on time and labour costs
- Extra wide compensator required
You can add pipe duct kits to your order under the Product Options tab.
EXTRA WIDE COMPENSATORS AVAILABLEExtra Wide Compensators have been designed to give approximately 50mm additional width to a standard shower screen enclosure area.
They are also suitable for use with pipe duct kits where pipes have been boxed in.
- Width: 141mm
- Height: 750, 900, or 1880mm
- Giving 50mm additional width
You can add compensators to your order under the Product Options tab.
