AKW TriForm Linear Drain Level Access Wet Room Former Tray 900mm x 900mm

Quick Code: 2791182
Ref: AKW21205
AKW
£373.95 Inc. VAT

Special offer - available at a new lower price for a limited time

Was: £

PayPal Credit
Spread the cost with 12 monthly payments of £31.16 at 0% APR using PayPal.

In Stock

Usually delivered within 2 working days

Free Delivery Available

Delivery postcode restrictions apply

Check

AKW TriForm Level Access Wet Room Tray Floor Former - 900mm x 900mm

The TriForm wet room former is characterised by a long, linear drain positioned at one end of the tray, helping to give your shower a unique and luxurious appearance. The TriForm measures in at 22mm thick and can hold weight of up to 40 stone with no underboarding. Suitable for use with tiled floors only. Up to 3 wastes can be connected to the tray to achieve a flow rate of up to 78 litres per minute - many options are available separately.

Product Features

  • Level access wet room floor former tray measuring 900mm x 900mm
  • Stylish linear drain layout gives the tray a premium look and feel
  • Suitable for 1, 2 or 3 shower wastes - 26 litres per minute flow rate per waste
  • Standard linear drain cover option is reversible - either a stainless steel or tiled finish
  • Suitable for installation on wooden floors and concrete floors
  • Suitable for use with tiled floor coverings only - not suitable for vinyl flooring
  • 22mm thick - designed to match height of standard 18mm UK timber + 4mm ply
  • 1:40 gradient built in to the tray for excellent drainage
  • Manufactured from Glass Reinforced Plastic (GRP) using hand lay-up process
  • Includes pre-formed fixing holes to simplify and speed up installation
  • Dependable strength - supports a bearing weight of up to 254 kg / 40 stone
  • Self-supporting - no need for underboarding
  • Supplied with a lifetime guarantee from the manufacturer

Important Information

  • Wet room floor former only - waste(s) and linear drain cover not included
  • Suitable for use with 1, 2, or 3 wastes depending on flow rate requirements
  • Infill pieces are supplied to cap off any unused waste holes
Show More

Tray Size900mm x 900mm
ShapeSquare
Thickness22mm
Gradient1:40
Core MaterialGlass Reinforced Plastic (GRP)
Drain PositionEnd (Linear)
Installation TypeLevel Access
Waste SuitabilityGravity, Pumped, Dry
Floor Covering SuitabilityTiled Floors
Floor SuitabilityWooden Floors, Concrete Floors
Maximum Weight Load254 kg (40 stone)
BrandAKW
CollectionTriForm
Manufacturer Part Number21205
Show More

Fitting Instruction
Type : PDF Size : 5.15 MB
Product Datasheet
Type : PDF Size : 310.30 KB
Care Guide
Type : PDF Size : 2.05 MB
Brochure
Type : PDF Size : 32.53 MB

Optional Waste Cover (Not including the waste)

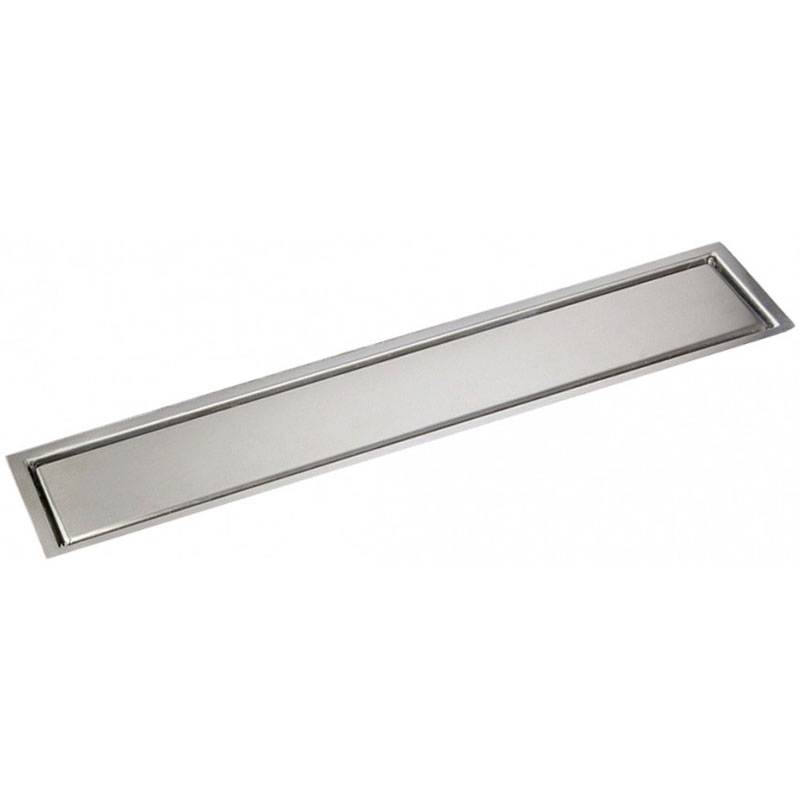

AKW TriForm Reversible Steel Waste Cover - 6-16mm Tiles
(AKW21213)
£245.95
In Stock
AKW TriForm Reversible Steel Waste Cover - 16-25mm Tiles
(AKW21214)
£245.95
In Stock

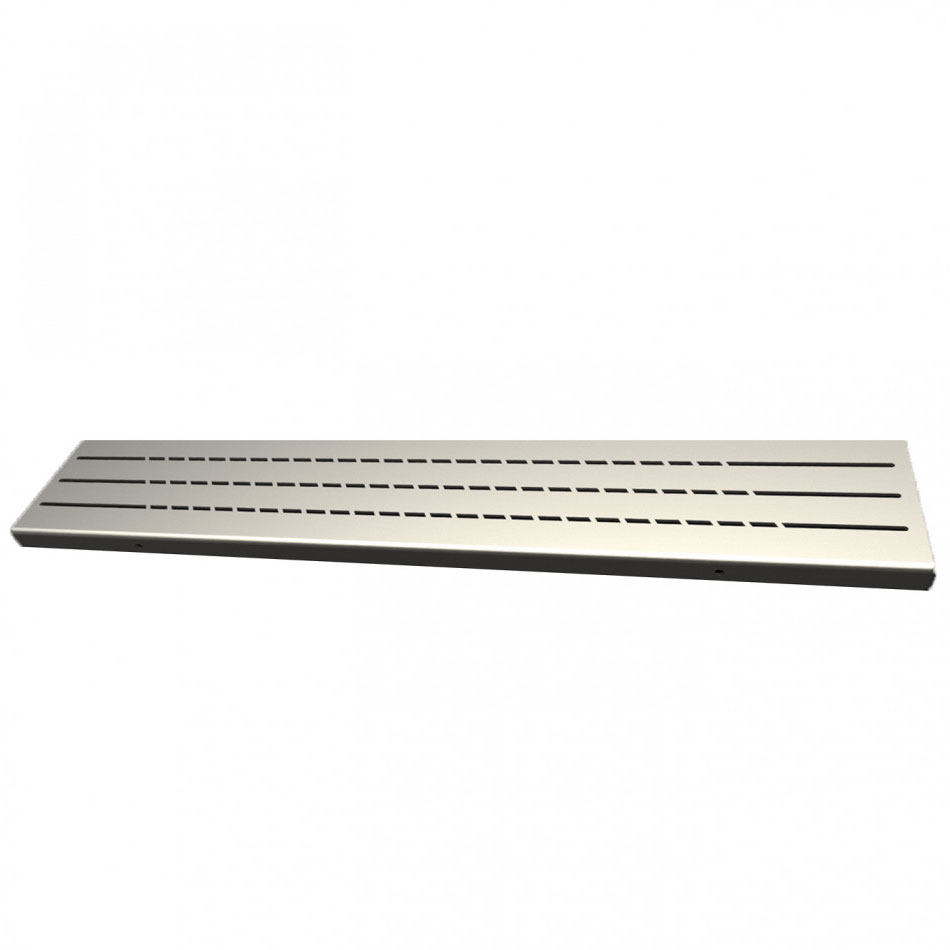

AKW TriForm Decorative Steel Waste Cover - 16-25mm Tiles
(AKW21216)
£245.95
Out of Stock

Suitable Shower Tray Waste

(AKW25125)
£8.95

Save £6.00 when purchased with the main item

In Stock
(AKW25404)
£21.95

Save £6.00 when purchased with the main item

In Stock
(AKW25126)
£9.95

Save £6.00 when purchased with the main item

In Stock
AKW GW90 Waste for Onyx and Linea Trays
(AKW25694)
£58.95
In Stock
(AKW25696UK)
£58.95

Save £6.00 when purchased with the main item

In Stock

Suitable Tanking Kits

(AKW23610)
£239.95
In Stock
(AKW23611)
£495.95
In Stock

Suitable Wet Room Waterproofing

(AKW21320)
£60.95

Save £6.00 when purchased with the main item

In Stock
(AKW21323)
£109.95

Save £6.00 when purchased with the main item

Out of Stock

Suitable Formsafe Wetroom Tanking Membrane & Accessories

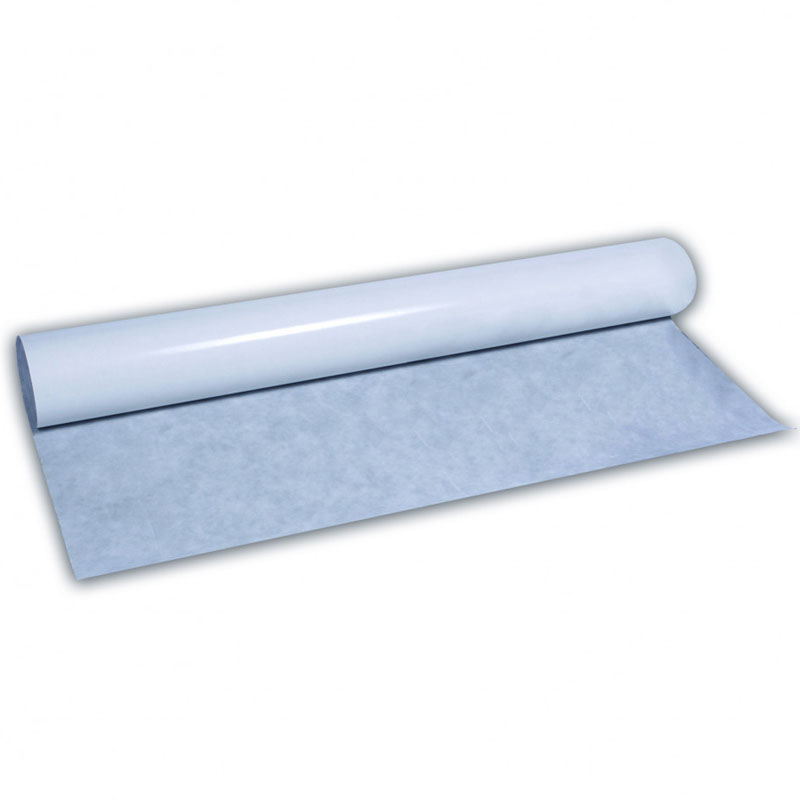

AKW Formsafe Wetroom Tanking - Membrane 5m sq
(AKW13-006-001)
£229.95
In Stock

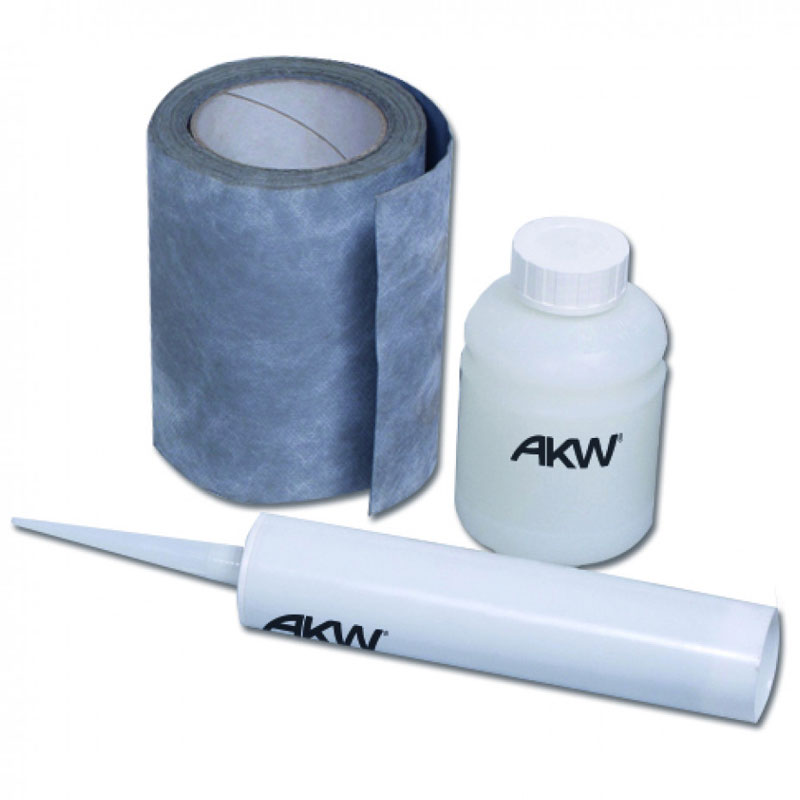

AKW Formsafe Wetroom Tanking - Accessories 5m sq
