The Bristan Commercial MT503 Thermostatic Mixing Valve with Isolation Elbows, 15mm, Chrome comes from the great Commercial range of mixing valves. This item is manufactured to the highest standards and is sure to add style and substance to your bathroom, As you would expect from a leading brand such as Bristan. This mixing valve from a well known brand like bristan comes with 1 year of guarantee.
Bristan Commercial MT503CP-ISOELB Mixing Valve Features:
- Elbows allow the valve to be concealed behind a pedestal
- Isolation at mixing point facilitates easy servicing
- Automatic shutoff in the event of hot or cold water supply failure
- Check valves and serviceable filters as standard
- Operates at a maximum pressure differential of 10:1
- High pressure bath fill part G compliant
- TMV2, TMV3 and WRAS Approved
- Supplied with a 1 year guarantee from the manufacturer
Bristan Commercial MT503CP-ISOELB Mixing Valve Specifications:

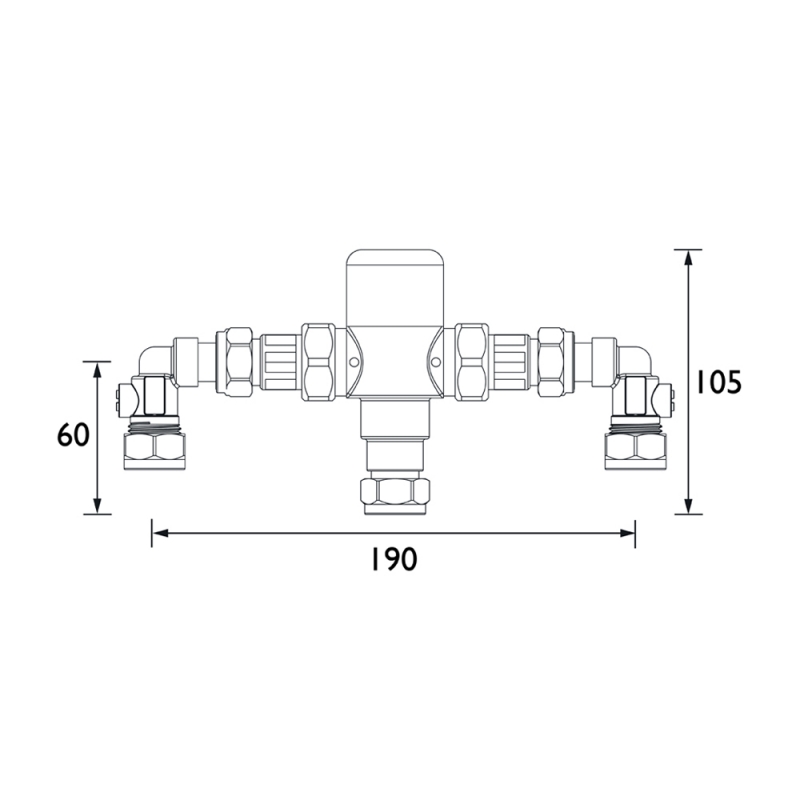

Mixing Valve Height |
103.5mm |
Mixing Valve Width |
190mm |
Inlet Connection Size |
15mm |
Outlet Connection Size |
15mm |
Max Inlet Temperature |
80 Degree C |
Minimum Working Pressure |
0.1 Bar |
Maximum Working Pressure |
2.0 Bar |
WRAS Approval Number |
1710079 |
TMV2 Approval Number |
BC1860/1117 |
TMV3 Approval Number |
BC1861/1217 |
Material |
Brass |
Colour |
Chrome |
Brand |
Bristan |
Collection |
Commercial |
Style |
Modern |
Market |
Domestic |
EAN Barcode |
5014868000640 |
Manufacturer Part Number(s) |
MT503CP-ISOELB |
Flow Rate 0.2 Bar |
8.5 l/min |
Flow Rate 0.5 Bar |
15 l/min |
Flow Rate 1.0 Bar |
21.5 l/min |
Flow Rate 2.0 Bar |
31 l/min |
