The Bristan Commercial MT753 Thermostatic Mixing Valve with Isolation, 22mm, Chrome comes from the great Commercial range of mixing valves. This item is manufactured to the highest standards and is sure to add style and substance to your bathroom, As you would expect from a leading brand such as Bristan. This mixing valve from a well known brand like bristan comes with 1 year of guarantee.
Bristan Commercial MT753CP-ISO Mixing Valve Features:
- Isolation at mixing point facilitates easy servicing
- TMV2,TMV3 and WRAS Approved
- Automatic shutoff in the event of hot or cold water supply failure
- Check valves and serviceable filters as standard
- High and low pressure bath fill applications
- Operates at a maximum pressure differential of 10:1
- Supplied with a 1 year guarantee from the manufacturer
Bristan Commercial MT753CP-ISO Mixing Valve Specifications:

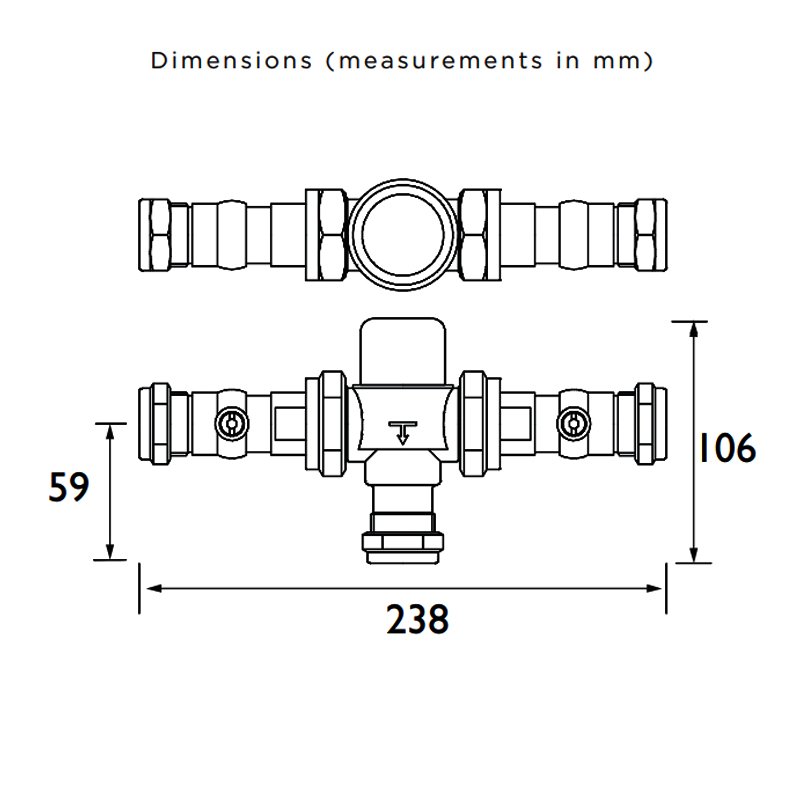

Mixing Valve Height |
106mm |
Mixing Valve Width |
238mm |
Inlet Connection Size |
22mm |
Outlet Connection Size |
22mm |
Minimum Working Pressure |
0.1 Bar |
Maximum Working Pressure |
5.0 Bar |
WRAS Approval Number |
1710079 |
Material |
Brass |
Colour |
Chrome |
Brand |
Bristan |
Collection |
Commercial |
Style |
Modern |
Market |
Domestic |
EAN Barcode |
5038150028532 |
Manufacturer Part Number(s) |
MT753CP-ISO |
Flow Rate 0.2 Bar |
17 l/min |
Flow Rate 0.5 Bar |
28 l/min |
Flow Rate 1.0 Bar |
42 l/min |
Flow Rate 2.0 Bar |
59 l/min |
Flow Rate 3.0 Bar |
73 l/min |
Flow Rate 5.0 Bar |
95 l/min |
