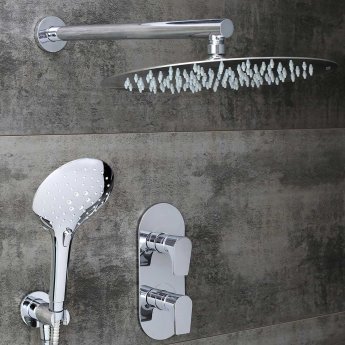

Bristan Hourglass Dual Concealed Mixer Shower with Shower Kit and Fixed Head

Product Features

• Supplied complete with Dual Concealed Valve, Fixed Shower Head with Shower Arm and Shower Handset with Hose
• Integral two outlet diverter
• 15mm inlet connections
• 250mm round slimline fixed head with shower arm
• Multi function rub clean handset and drench head
• Limescale and debris build-up is quickly and easily removed by rubbing a finger or a cloth over the nozzles
• Automatic shut-off in the event of hot or cold water supply failure
• Dual control - flow and temperature are controlled separately
• Thermostatic cartridge with preset temperature safety stop at 42 degree C for family-safe showering
• higher temperature can be selected, if required, by selecting the override function
• Metal back plate and handles for added durability
• Slim design recessed shower valve will fit into a cavity space as small as 35mm for hassle-free installation
• Cartridge can be accessed from the front, Requires rear access to service filters
• Large round three function push button handset and hose with integral handset holder and wall outlet
• Suitable for all plumbing systems
• A hard-wearing, flawless, scratch resistant chrome finish that lasts for years
• Salt spray tested to ensure added durability
• Chrome plated to BS EN 248
• 3/4 inch Ceramic Disc Valve 1/4 turn
• Wall outlet designed with Bristan's Wall Mount Technology for easier installation
• Guarantee: 5 years including parts (1 year on labour and 3 year on Gold, Painted and other Special Finishes)
• Through Fixed Head (mixed): 0.2 Bar- 5 l/min, 0.5 Bar - 8.9 l/min, 1.0 Bar - 13.8 l/min, 2.0 Bar - 18.9 l/min, 3.0 Bar - 23.2 l/min, 5.0 Bar - 29.9 l/min
• Through Handset (mixed): 0.2 Bar- 2.2 l/min, 0.5 Bar - 4 l/min, 1.0 Bar - 5.7 l/min, 2.0 Bar - 8.2 l/min, 3.0 Bar - 10.2 l/min, 5.0 Bar - 13.2 l/min
• Through Handset (valve flow limiters fitted): 0.2 Bar- 2 l/min, 0.5 Bar - 3.6 l/min, 1.0 Bar - 5.2 l/min, 2.0 Bar - 7.3 l/min, 3.0 Bar - 8.1 l/min, 5.0 Bar - 9.9 l/min
• Through Fixed Head (valve flow limiters fitted): 0.2 Bar- 3.6 l/min, 0.5 Bar - 6 l/min, 1.0 Bar - 7.1 l/min, 2.0 Bar - 8.5 l/min, 3.0 Bar - 9.6 l/min, 5.0 Bar - 10.1 l/min
• Through Handset (valve and handset flow limiters fitted): 0.2 Bar- 1.7 l/min, 0.5 Bar - 3.2 l/min, 1.0 Bar - 4.7 l/min, 2.0 Bar - 6.5 l/min, 3.0 Bar - 7.5 l/min, 5.0 Bar - 8.8 l/min
