Bristan Commercial MT503 Thermostatic Mixing Valve 15mm - Chrome Bristan Commercial MT503 Thermostatic Mixing Valve 15mm - Chrome
Bristan Commercial MT503 Thermostatic Mixing Valve 15mm - Chrome Bristan Commercial MT503 Thermostatic Mixing Valve 15mm - Chrome

Bristan Commercial MT503 Thermostatic Mixing Valve 15mm - Chrome

Quick Code: 2775150
Ref: BNMT503CP
4/5.0(1 Reviews)
Bristan
£60.95 Inc. VAT

Special offer - available at a new lower price for a limited time

Was: £

PayPal Credit

In Stock

Usually delivered within 2 working days

Free Delivery Available

Delivery postcode restrictions apply

Check

Made by one of the bathroom and kitchen manufacturers in the UK, this commercial grade mixing valve is built to last. It is manufactured to the highest standards and comes complete with a 1 year guarantee to reflect this quality.

Finished in chrome, it is a WRAS approved product that comes with an automatic shut-off feature that will kick in if there is a water failure.

Product Features

  • Automatic shutoff in the event of hot or cold water supply failure
  • Check valves and serviceable filters as standard
  • Operates at a maximum pressure differential of 10:1
  • High pressure bath fill Part G compliant
  • TMV2, TMV3 and WRAS Approved
  • Supplied with a 1 year guarantee from the manufacturer
Show More

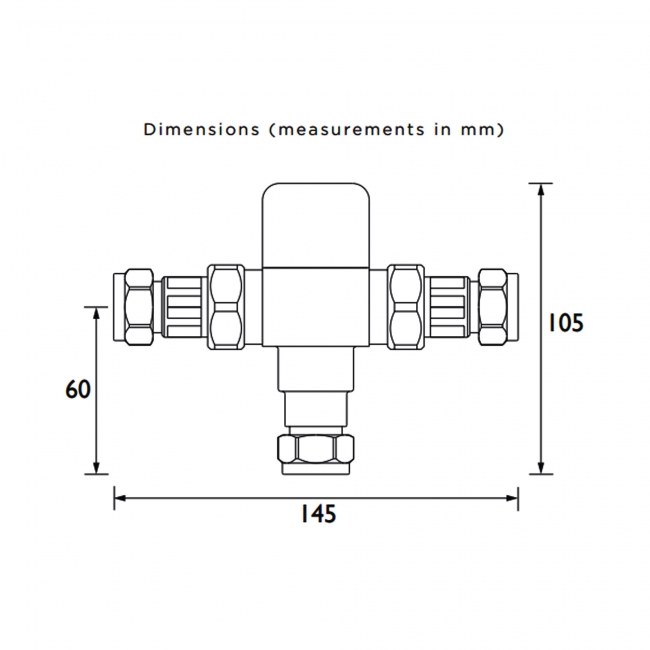

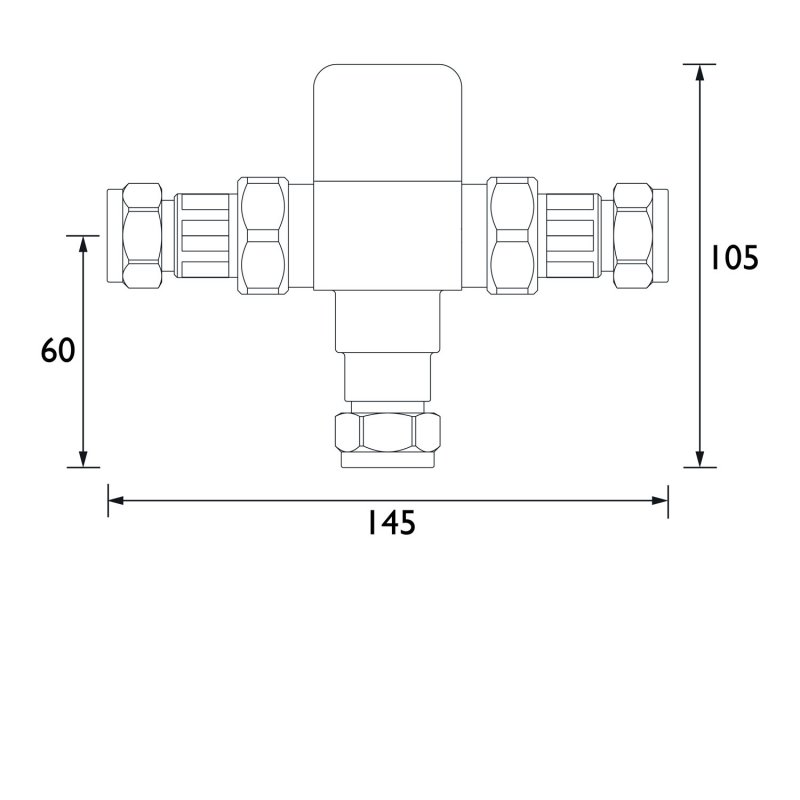

Mixing Valve Height105mm
Mixing Valve Width145mm
Inlet Connection Size15mm
Outlet Connection Size15mm
Max Inlet Temperature80 Degree C
Minimum Working Pressure0.1 Bar
Maximum Working Pressure5.0 Bar
WRAS Approval Number1710079
TMV2 Approval NumberBC1860/1117
TMV3 Approval NumberBC1861/1217
MaterialBrass
ColourChrome
BrandBristan
CollectionCommercial
StyleModern
MarketDomestic
EAN Barcode5038150018724
Manufacturer Part Number(s)MT503CP
Flow Rate @ 0.1 Bar6 l/min
Flow Rate @ 0.2 Bar8.5 l/min
Flow Rate @ 1.0 Bar21.5 l/min
Flow Rate @ 2.0 Bar31 l/min
Flow Rate @ 3.0 Bar32.9 l/min
Flow Rate @ 5.0 Bar42.5 l/min
Show More

Fitting Instructions
Type : PDF Size : 729.29 KB
Guarantee Policy
Type : PDF Size : 111.46 KB
Product Datasheet
Type : PDF Size : 512.85 KB

Suitable Cleaning Kit

Bristan Engineer Cleaning Kit
Bristan Engineer Cleaning Kit
(BNCLEANKIT01)
£21.95
Out of Stock
