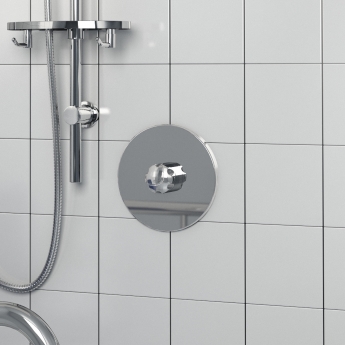

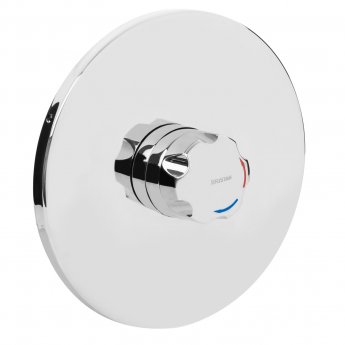

Bristan OPAC Thermostatic Concealed Mini Shower Valve with Handwheel - Chrome
Bristan OPAC Thermostatic Concealed Mini Shower Valve with Handwheel - Chrome

Bristan OPAC Thermostatic Concealed Mini Shower Valve with Handwheel - Chrome

£236.95

Inc. VAT
£363.00 SAVE £126.05 In Stock
Other Options Available:

Bristan OPAC MINI2 TS1203 CH C Shower Valve Features:


  • Single sequential control for both temperature & flow
  • Concealed shower with easy-access cover plate for servicing
  • Inlet centres of 99mm +/- 1mm
  • Integral isolator and easy clean filters
  • High performance even at low pressures
  • Approved and tested under WRAS
  • Certified to NSF TMV2 and TMV3
  • Complete with an exceptional 1 year guarantee from Bristan

Bristan OPAC MINI2 TS1203 CH C Shower Valve Specifications:


Shower Type Thermostatic
Shower Valve Controls 1
Shower Valve Outlet 1
Shower Valve Position Concealed
Valve Shape Round
Handle Type Round
Minimum Pressure 0.1 Bar
Maximum Pressure 5.0 Bar

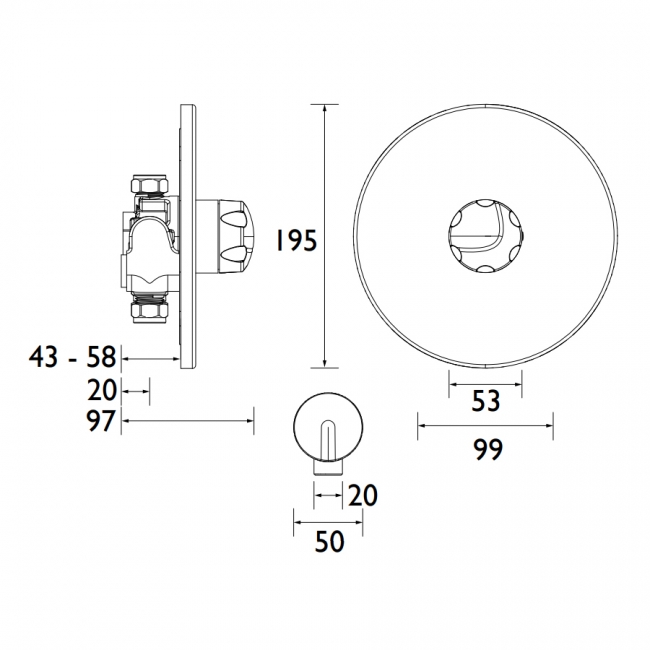

Shower Valve Height 195mm
Shower Valve Width 195mm
Shower Valve Depth 43-58mm
Inlet Connection Size 15mm
Outlet Connection Size 1/2 BSP
Connection Centres 99mm
System Suitability All Plumbing System
WRAS Approval Number 1904904
TMV2 Approval Number NSF2126/0619
Material Brass
Colour Chrome
Brand Bristan
Collection OPAC
Style Modern
Market Domestic
EAN Barcode 5014868027081
Manufacturer Part Number(s) MINI2 TS1203 CH C
Flow Rate - 0.2 Bar 11.0 l/min
Flow Rate - 5.0 Bar 9.3 l/min


Bristan OPAC Thermostatic Concealed Mini Shower Valve with Handwheel - Chrome
Bristan OPAC Thermostatic Concealed Mini Shower Valve with Handwheel - Chrome
(BNMINI2TS1203CHC)
£236.95
In Stock
Suitable Shower Kit
Bristan Shower Kit 100 Chrome Plated
(BNKIT100C)
£29.95
In Stock
Bristan Evo Adjustable Shower Rail Kit, Single Function Handset, Chrome
Bristan Evo Adjustable Shower Rail Kit, Single Function Handset, Chrome
(BNEVCKIT01C)
£32.95
In Stock
Suitable Outlet Elbow
Bristan Round Shower Hose Outlet, Wall Mounted, Chrome

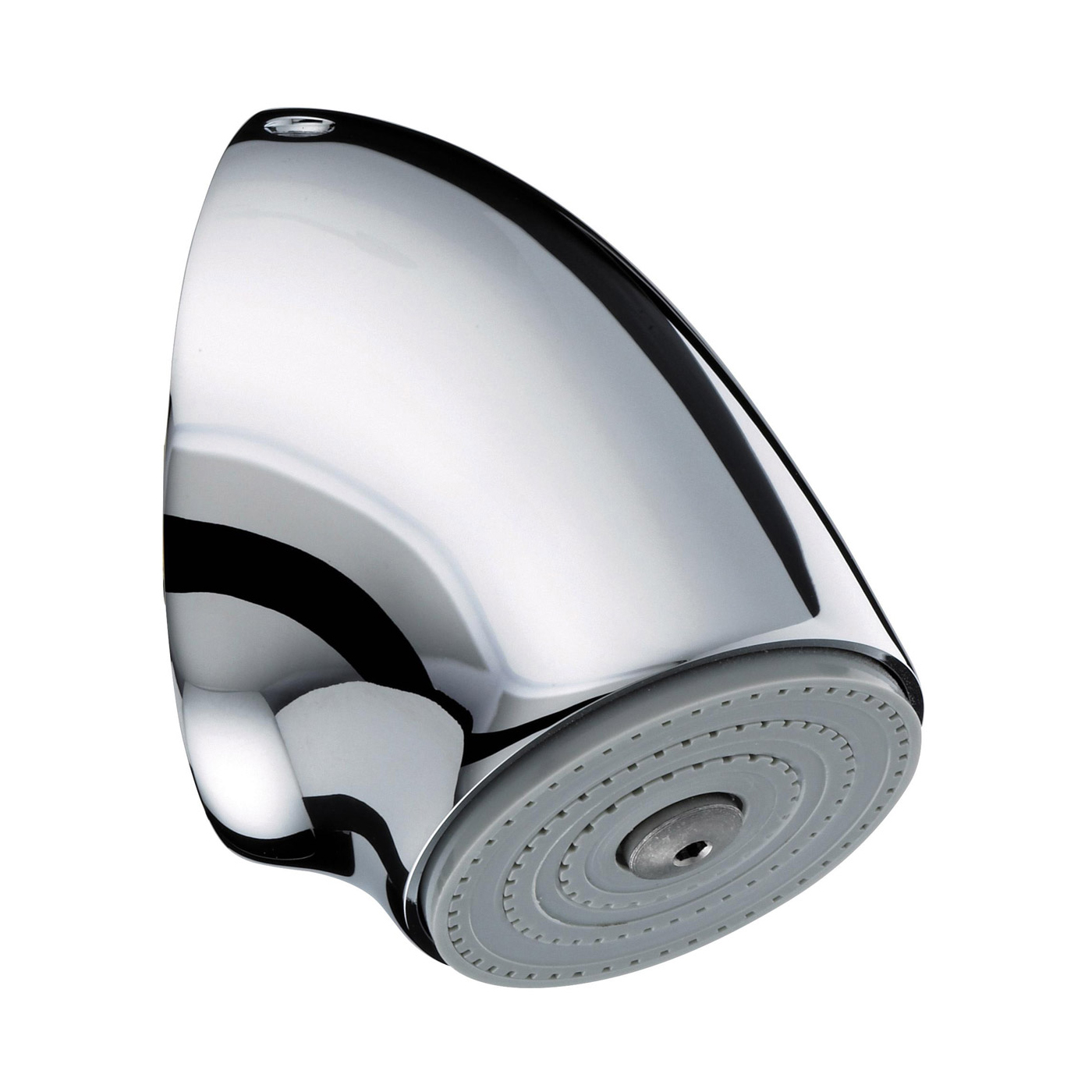

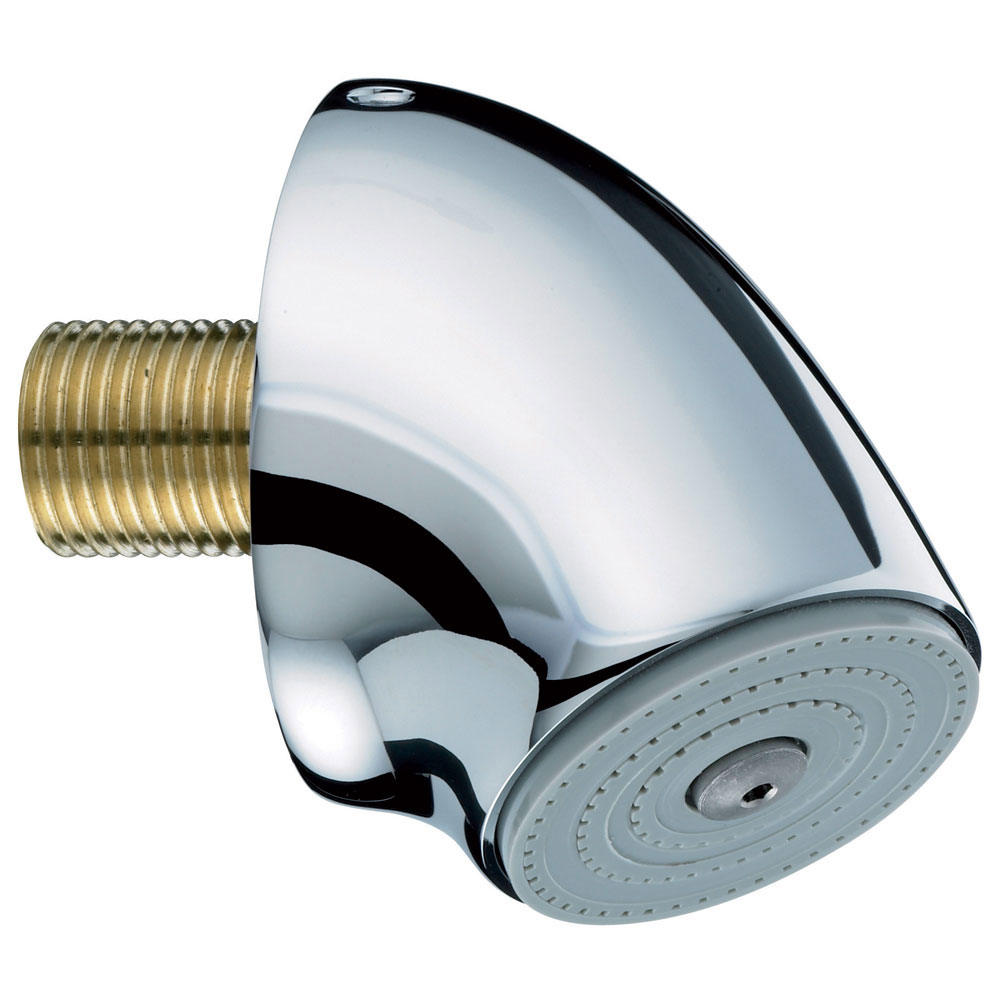

Suitable Shower Head
Suitable Shower Basket
Bristan Closed Front Cover Fixed Wire Basket, Chrome
(BNCOMPBASK04C)
£24.95
In Stock
Bristan Small Wall Fixed Wire Basket, Chrome
(BNCOMPBASK03C)
£36.95
In Stock
Bristan Medium Wall Fixed Wire Basket, Chrome
(BNCOMPBASK02C)
£36.95
In Stock
Bristan Two Tier Corner Fixed Wire Basket, Chrome
(BNCOMPBASK06C)
£58.95
In Stock
Suitable Cleaning Kit
Bristan Engineer Cleaning Kit
Bristan Engineer Cleaning Kit
(BNCLEANKIT01)
£15.95
In Stock
How do I finance my purchase?
  1. Add the items you want to add your basket and proceed to checkout.
  2. In payment options select "Pay by Paypal Credit", you can then select the finance option which you require.
  3. You will be asked to complete a simple online application, it's quick, easy and you'll get the decision within a matter of seconds. There is NO paperwork to be posted and NO physical signature required!

Interest Free Credit Calculator

Enter the total amount you want to spend.

*Finance available on all orders over £99. Prices given representative as part of larger order.

For further information on our finance partnership, please visit our finance page.

Product Documents
Product Datasheet
Type : PDF Size : 435.15 KB
Fitting Instructions
Type : PDF Size : 700.99 KB
