Bristan Prism Concealed Sequential Shower Valve Only - Chrome Bristan Prism Concealed Sequential Shower Valve Only - Chrome
Bristan Prism Concealed Sequential Shower Valve Only - Chrome Bristan Prism Concealed Sequential Shower Valve Only - Chrome

Bristan Prism Concealed Sequential Shower Valve Only - Chrome

Quick Code: 2797722
Ref: BNPM2SQSHCVOC
Bristan
£424.95 Inc. VAT

Special offer - available at a new lower price for a limited time

Was: £

PayPal Credit
Spread the cost with 12 monthly payments of £35.41 at 0% APR using PayPal.
Find out more
PayPal Credit

In Stock

Usually delivered within 2 working days

Free Delivery Available

Delivery postcode restrictions apply

Check

The Bristan Prism Concealed Sequential Shower Valve Only - Chrome comes from the Prism range of shower valves manufactured by Bristan. Bristan provide a wide variety of products suitable for both domestic and commercial applications, beyond from showers, bathroom taps and kitchen taps. This product from a well known brand like Bristan Supplied with a 5 year guarantee from the manufacturer.

Product Features

  • Shower valve supplies water to 1 outlet
  • Chrome plated to BS EN 248
  • Factory fitted regulators means this is a water saving shower
  • Supplied with 8 l/m flow limiters
  • Supplied with Easyfit wall outlet
  • Made from high quality materials
  • 15mm compression connections
  • Valve will fit in 35mm cavity
  • Matching taps available
  • Suitable for all plumbing conditions
  • Connection Outlet: G 1/2"
  • WRAS approved product
  • Body is of brass construction
  • Requires minimum 0.2 bar or maximum 5.0 bar water pressure
  • Comes in chrome finish
  • Supplied with 2 x 8L/min flow regulators
  • Thermostatic cartridge with preset temperature stop at 42 degree C
  • This shower valve has been designed to fit in any UK wall cavity and therefore only needs a 35mm deep cavity space
  • Guarantee: 5 years including parts (1 year on labour and 3 year on Gold, Painted and other Special Finishes)
Show More

Shower TypeThermostatic
Shower Valve Controls1
Shower Valve Outlet1
Shower Valve PositionConcealed
Valve ShapeRectangular
Handle TypeLever
Minimum Pressure0.2 Bar
Maximum Pressure5.0 Bar

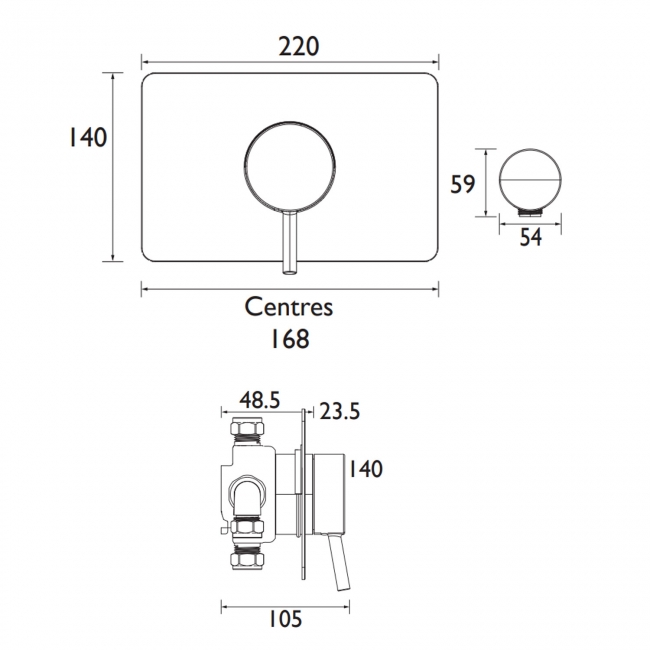

Shower Valve Height140mm
Shower Valve Width220mm
Shower Valve Depth105.4mm
Inlet Connection Size15mm
Outlet Connection Size1/2 BSP
Connection Centres168mm
System SuitabilityAll Plumbing System
WRAS Approval Number1702038
MaterialBrass
ColourChrome
BrandBristan
CollectionPrism
StyleModern
MarketDomestic
EAN Barcode5014868043067
Manufacturer Part Number(s)PM2 SQSHCVO C
Flow Rate @ 0.1 BarWith Flow Limiters: 2.2 l/min, Without Flow Limiters: 6.3 l/min
Flow Rate @ 0.5 BarWith Flow Limiters: 3.2 l/min, Without Flow Limiters: 19.5 l/min
Flow Rate @ 1.0 BarWith Flow Limiters: 7.0 l/min, Without Flow Limiters: 27.6 l/min
Flow Rate @ 2.0 BarWith Flow Limiters: 10.1 l/min, Without Flow Limiters: 39.0 l/min
Flow Rate @ 3.0 BarWith Flow Limiters: 12.3 l/min, Without Flow Limiters: 47.8 l/min
Flow Rate @ 5.0 BarWith Flow Limiters: 12.1 l/min, Without Flow Limiters: 61.7 l/min
Show More

Guarantee Policy
Type : PDF Size : 111.46 KB
Fitting Instructions
Type : PDF Size : 1.28 MB
Product Datasheet
Type : PDF Size : 833.53 KB

Recommended Shower Kit

Bristan Casino Shower Kit with Single Function Small Handset - Chrome
(BNCASKIT01C)
£39.95 £46.95

Save £7.00 when purchased with the main item

Out of Stock
Bristan Shower Kit 100 Chrome Plated
(BNKIT100C)
£46.95 £53.95

Save £7.00 when purchased with the main item

In Stock
Bristan Evo Adjustable Shower Rail Kit Single Function Handset - Chrome
(BNEVCKIT01C)
£50.95 £57.95

Save £7.00 when purchased with the main item

In Stock

Recommended Outlet Elbow

Bristan EasyFit Wall Outlet Plastic - Chrome
(BNWO6C)
£51.95
In Stock

Recommended Shower Head

Bristan Slimline Square Fixed Shower Head 200mm x 200mm - Chrome
(BNFHSLSQ01C)
£107.95 £114.95

Save £7.00 when purchased with the main item

In Stock
Bristan Slimline Square Fixed Shower Head 250mm x 250mm - Chrome
(BNFHSLSQ02C)
£164.95
In Stock

Recommended Shower Arm

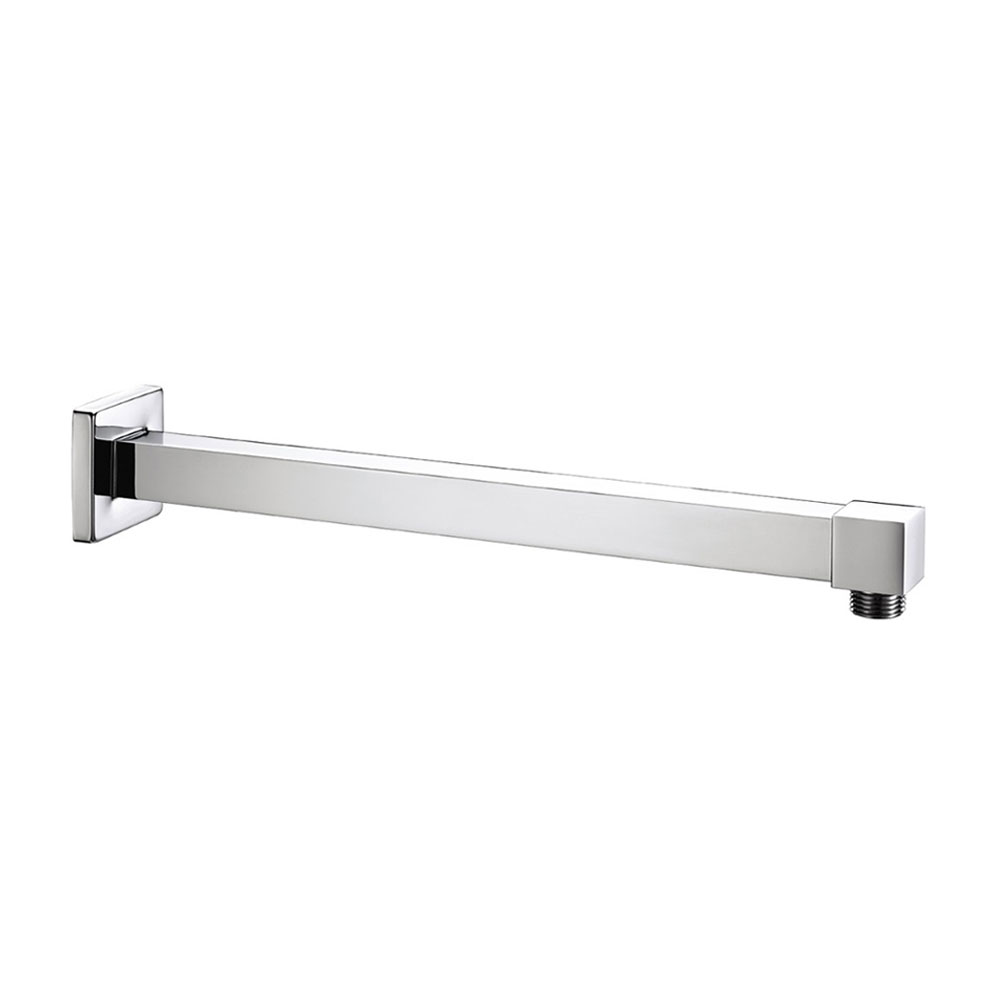

Bristan Square Wall Mounted Shower Arm 330mm Length - Chrome
(BNARMWASQ01C)
£42.95 £49.95

Save £7.00 when purchased with the main item

In Stock

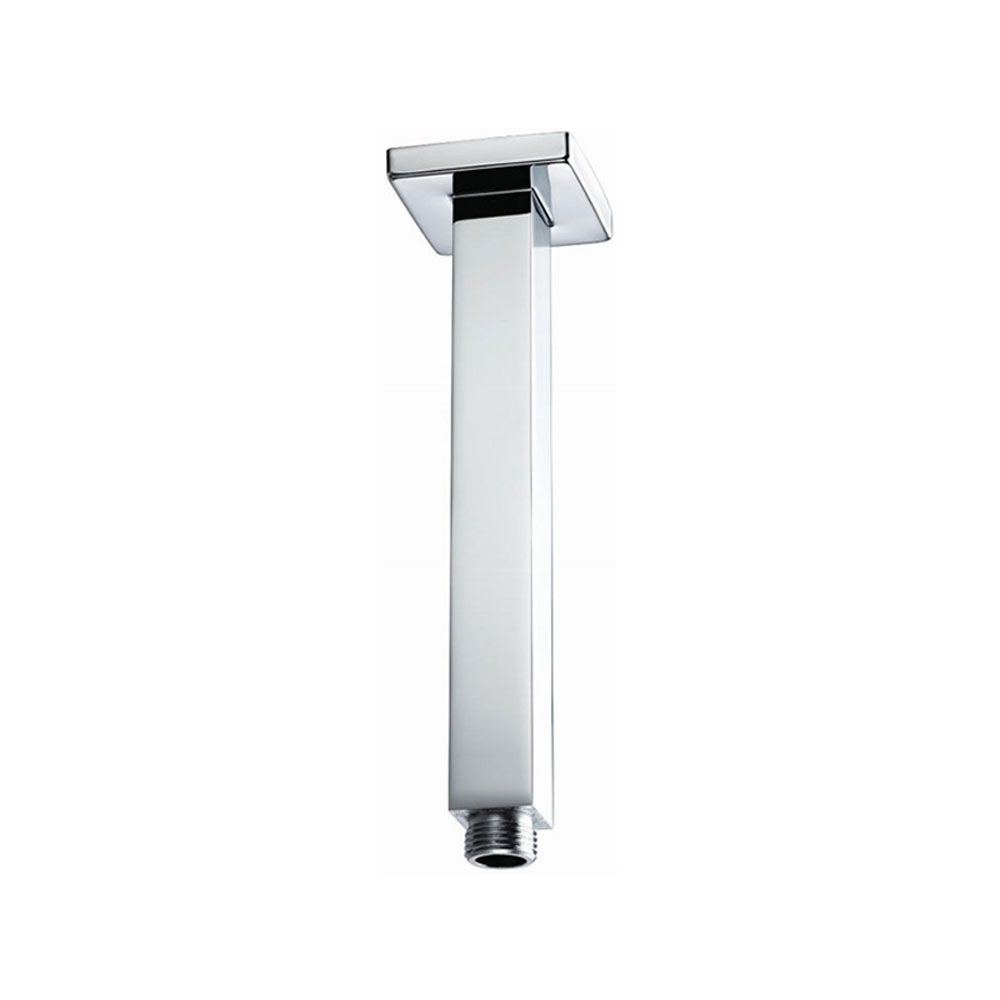

Bristan Square Ceiling Mounted Shower Arm 200mm Length - Chrome
