Bristan Prism Exposed Concentric Top Outlet Shower Valve Only - Chrome Bristan Prism Exposed Concentric Top Outlet Shower Valve Only - Chrome
Bristan Prism Exposed Concentric Top Outlet Shower Valve Only - Chrome Bristan Prism Exposed Concentric Top Outlet Shower Valve Only - Chrome

Bristan Prism Exposed Concentric Top Outlet Shower Valve Only - Chrome

Quick Code: 2797726
Ref: BNPM2CSHXTVOC
Bristan
£439.95 Inc. VAT

Special offer - available at a new lower price for a limited time

Was: £

PayPal Credit
Spread the cost with 12 monthly payments of £36.66 at 0% APR using PayPal.

In Stock

Usually delivered within 2 working days

Free Delivery Available

Delivery postcode restrictions apply

Check

Product Features

  • Shower valve supplies water to 1 outlet
  • Comes with top outlet
  • Chrome plated to BS EN 248
  • Supplied with 2 x 8L/min flow regulators

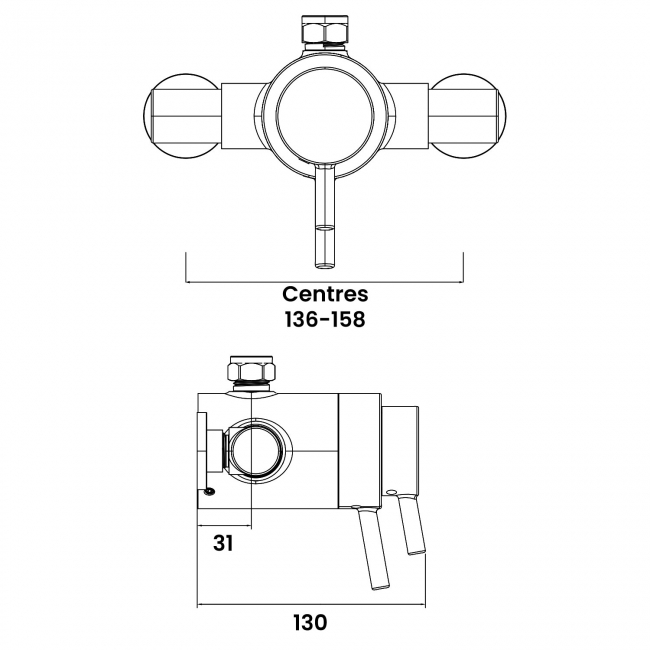

  • Adjustable inlet centres mean you can use existing pipework with centres between 136mm and 158mm
  • Thermostatic cartridge with preset temperature stop at 42 degree celsius
  • Twin handle valve only
  • Approved and tested under WRAS
  • Guarantee: 5 years including parts (1 year on labour and 3 year on Gold, Painted and other Special Finishes)
Show More

Shower TypeThermostatic
Shower Valve Controls2
Shower Valve Outlet1
Shower Valve PositionExposed
Handle TypeLever
Valve ShapeRound
Minimum Pressure0.1 Bar
Maximum Pressure5.0 Bar
Shower Valve Depth130mm
Inlet Connection Size15mm
Outlet Connection Size15mm
Connection Centres136-158mm
System SuitabilityAll Plumbing System
WRAS Approval Number1702038
MaterialBrass
ColourChrome
BrandBristan
CollectionPrism
StyleModern
MarketDomestic
EAN Barcode5014868044057
Manufacturer Part Number(s)PM2 CSHXTVO C
Flow Rate - 0.1 BarWithout Flow Regulators: 3.5 l/min
Flow Rate - 0.2 BarWithout Flow Regulators: 7.5 l/min
Flow Rate - 0.5 BarWith Flow Regulators: 11.9 l/min, Without Flow Regulators: 14.3 l/min
Flow Rate - 1.0 BarWith Flow Regulators: 13.4 l/min, Without Flow Regulators: 20.7 l/min
Flow Rate - 2.0 BarWith Flow Regulators: 13.2 l/min, Without Flow Regulators: 30.9 l/min
Flow Rate - 3.0 BarWith Flow Regulators: 13.1 l/min, Without Flow Regulators: 37.8 l/min
Flow Rate - 5.0 BarWith Flow Regulators: 11.4 l/min, Without Flow Regulators: 48.9 l/min
Show More

Fitting Instructions
Type : PDF Size : 885.83 KB
Guarantee Policy
Type : PDF Size : 111.46 KB
Product Datasheet
Type : PDF Size : 770.98 KB
