  • Bristan Prism Thermostatic Recessed Dual Control Shower Valve with Two Outlet Integral Diverter - Chrome
  • Bristan Prism Thermostatic Recessed Dual Control Shower Valve with Two Outlet Integral Diverter - Chrome
  • Bristan Prism Thermostatic Recessed Dual Control Shower Valve with Two Outlet Integral Diverter - Chrome
  • Bristan Prism Thermostatic Recessed Dual Control Shower Valve with Two Outlet Integral Diverter - Chrome

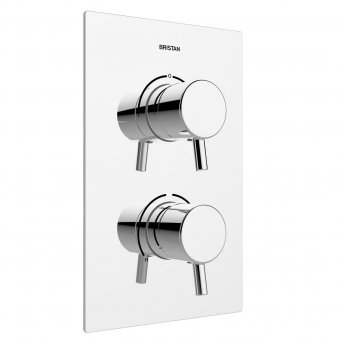

Bristan Prism Thermostatic Recessed Dual Control Shower Valve with Two Outlet Integral Diverter - Chrome

Reference: BNPM2SHCDIVC
  • Free Delivery*Approx 2 Working Days

  • Product Guarantee 5 Years GuaranteeOn this product

  • Write Review

    Write a Review

Bristan is one of the best known names in the world of shower manufacture, and this is one of their stylish and functional range of thermostatic shower valves. Designed with simplicity in mind, there are only two levers to control both the heat and the flow speed of the water, and once in place on the wall, there are no fittings and pipes visible, making it ideal for a modern and minimalist style in the bathroom. Made from brass and finished in chrome, this is a great choice of shower for any family bathroom, and as it works on water pressures as low as 0.2 bar, it is suitable for nearly all homes.

Bristan Prism PM2 SHCDIV C Shower valve Features:


  • Body is of brass construction
  • Suitable for all plumbing conditions
  • Chrome plated to BS EN 248
  • Suitable for cavities between 45-75mm
  • The inlet hot water temperature must be at least 10% above the required blend temperature
  • Minimum cold water supply temperature is 5°c
  • Maximum hot water supply temperature is 80°c
  • Flow rate at 0.2 Bar (open outlet without flow regulators) is 8 l/min
  • WRAS approved product
  • Complete with an exceptional 5 years guarantee from Bristan

Bristan Prism PM2 SHCDIV C Shower valve Specifications:


Valve Type Thermostatic
Valve Siting Concealed
Height 255mm
Width 165mm
Depth 111mm
Diverter Yes
Valve Controls 2
Handle Type Lever
Mounting Type Wall Mounted
Inlet Connections 15mm Compression
Material Brass
Finish Chrome
Backplate Yes
Backplate Shape Rectangular
Minimum Pressure 0.2 Bar
Maximum Pressure 5.0 Bar
Style Contemporary
Collection Prism
EAN Barcode 5014868029122
Manufacturer Part Number PM2 SHCDIV C


Suitable Rail Kit
Suitable Body Jet
Suitable Bathroom Accessories

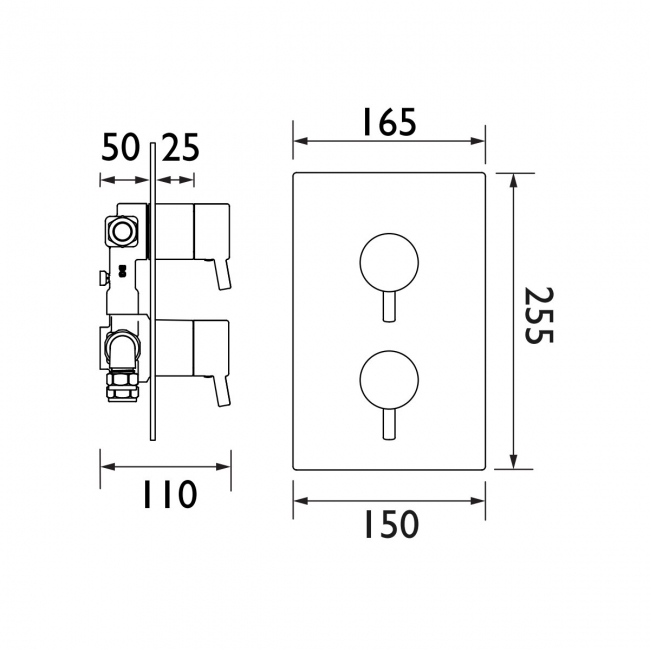

Dimensional Diagram - Bristan Prism Thermostatic Recessed Dual Control Shower Valve with Two Outlet Integral Diverter - Chrome
