Delphi Dive Chrome Bath Filler Tap

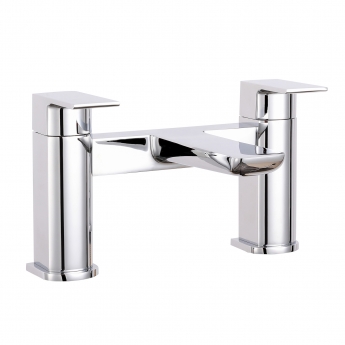

The Dive bath filler keeps everything low and wide: two slim pillars on their own rounded backplates, each capped with a flat blade lever, bridged by a spout that sits just 70mm above the bath deck. That spout is an open channel rather than an enclosed pipe, so the water runs along a visible trough and drops into the bath in a broad sheet instead of a jet. Polished chrome catches the light along the flat top surfaces and the squared shoulders, and reads cleanly against white ceramic and almost any tiling. Each handle turns on a quarter turn ceramic disc valve, going from off to fully open in a quarter of a rotation, which gives separate hot and cold control without the winding of an older compression tap. This is a high pressure fitting - 1.0 bar minimum, delivering 18.3 litres a minute at that pressure and 26.2 at 2 bar - so it fills quickly on a combi or unvented supply, while a gravity-fed tank would need a pump. Standard 180mm tap hole centres and 3/4 inch BSP connections suit the great majority of UK baths.
Product Features
- Deck mounted two hole bath filler with a pair of quarter turn lever handles

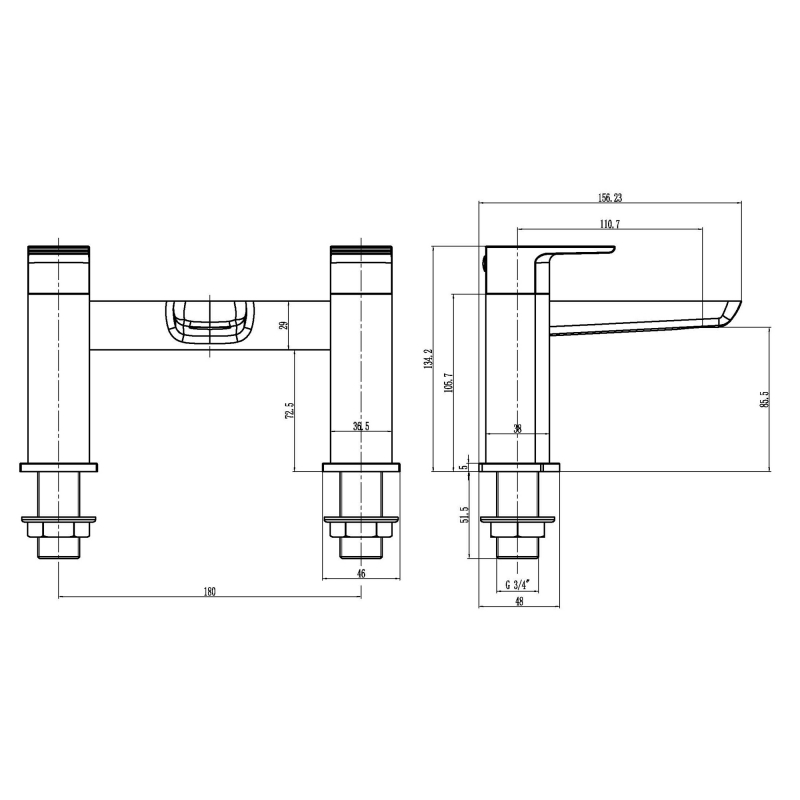

- Low bridged spout with an open channel outlet, 70mm from the deck to the spout with a 110mm reach
- Slim pillars on individual rounded backplates, topped with the flat blade levers used across the Dive range
- Polished chrome finish over a solid brass body
- Quarter turn ceramic disc valves - fully open in a quarter of a turn, with no rubber washers to wear and drip
- 180mm tap hole centres and 3/4 inch BSP inlets to match standard UK bath tap holes
- Needs 1.0 bar minimum, so it suits combi and pressurised systems; a gravity-fed tank will need a pump
- Delivers 18.3 litres per minute at 1 bar and 26.2 litres per minute at 2 bar for a fast fill
- Matching basin mixer, high rise tall basin mixer and bath shower mixer available across the Dive range, each in chrome, brushed brass and matt black
- Covered by a 5 year manufacturer guarantee (subject to terms)
Important Information
- No bath waste is supplied, so a bath waste and overflow kit needs to be ordered separately
