Delphi Edge Brushed Brass Dual Concealed Shower Set with Slide Rail Kit

Delphi Edge Brushed Brass Dual Concealed Shower Set with Slide Rail Kit

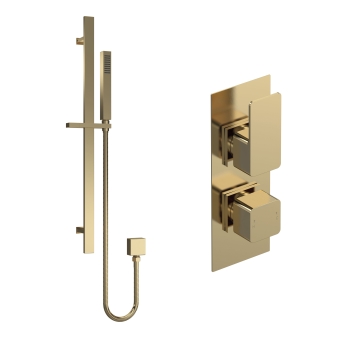

A one-outlet Edge concealed shower bundle in brushed brass, made up of a dual thermostatic valve and a square pencil slide rail kit with its wall outlet elbow. Everything is squared off: an 80mm wide rectangular valve plate, a flat paddle lever, a square temperature knob, and a flat bladed rail carrying a square pencil handset. Two controls and a single outlet mean the handset is all the valve has to run. We built it for bathrooms where warm metal has to read against dark tiling.

Bundle Contents

• 1 x Delphi Edge Brushed Brass 1-Outlet Dual Concealed Shower Valve
• 1 x Delphi Square Pencil Brushed Brass Slider Rail Shower Kit (inc Wall Outlet Elbow)

Shower Valve Features

• Two-handle shower valve, including the concealing plate and valve body in one package
• Single outlet, feeding the slide rail kit and its handset
• Two controls: one sets the temperature, the other opens and closes the flow
• Thermostatic cartridge holds your set temperature to within 2 degrees C
• TMV2 approved, so the flow shuts off if the cold supply fails
• WRAS approved for connection to the mains water supply
• Quarter turn ceramic disc cartridge, highly resistant to limescale
• 215mm x 80mm plate, fitted portrait or landscape, needing a recess 72mm to 85mm deep
• 1/2 inch BSP inlets, working from a minimum of 0.1 bar
• Brushed brass finish, matched across every piece in the bundle

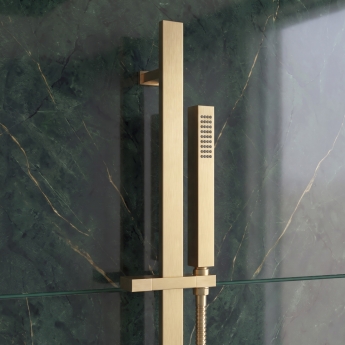

Slide Rail Kit Features

• 685mm rail, projecting just 65mm from the wall
• Handset slides and locks at any height along the bar
• Single function square pencil handset with a flat, easy clean face
• 1500mm flexible shower hose
• Wall outlet elbow included, connecting the kit straight to the concealed valve
• Brass and ABS construction
• 3 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts

Important Information

• This is a one-outlet shower valve designed for one accessory only (included).
