Delphi Edge Brushed Brass Dual Concealed Shower Set with Fixed Head and Slide Rail Kit
A two-outlet Edge concealed shower bundle in brushed brass, combining a dual thermostatic valve, a 200mm square fixed head on a 360mm arm and a 685mm square pencil slide rail kit. Everything is squared off, from the narrow rectangular valve plate and its flat paddle lever to the rain head and the blade thin rail, and every piece arrives in the same brushed brass so the tones match on the wall.
The valve runs both accessories from two controls, one for temperature and one that turns the shower on and diverts between the overhead and the handset. It suits a hard, geometric scheme where warm metal is meant to lift dark tiling rather than disappear into it. The wall outlet elbow is included, so there is nothing else to specify.

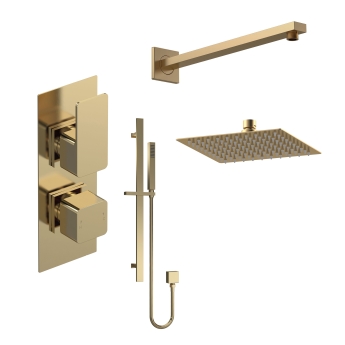

Bundle Contents
- 1 x Delphi Edge Brushed Brass 2-Outlet Dual Concealed Shower Valve
- 1 x Delphi Square Brushed Brass Fixed Shower Head 200mm x 200mm
- 1 x Delphi Square Brushed Brass Shower Arm 360mm
- 1 x Delphi Square Pencil Brushed Brass Slider Rail Shower Kit (inc Wall Outlet Elbow)
Shower Valve Features
- Two-handle shower valve, including the concealing plate and valve body in one package
- Two outlets with an integrated diverter, feeding the fixed head or the handset kit
- Two controls: one sets the temperature, the other turns the shower on and switches between outlets
- Thermostatic cartridge holds your set temperature to within 2 degrees C
- TMV2 approved, so the flow shuts off if the cold supply fails
- WRAS approved for connection to the mains water supply
- Quarter turn ceramic disc cartridge, highly resistant to limescale
- 215mm x 80mm plate, fitted portrait or landscape, needing a recess 72mm to 85mm deep
- 3/4 inch BSP inlets, working from a minimum of 0.5 bar
- Brushed brass finish, matched across every piece in the bundle
Fixed Shower Head and Arm Features
- 200mm x 200mm square spray face with a chamfered, knife thin edge
- Stainless steel, which will not rust or tarnish in a shower enclosure
- Rub clean silicone nozzles set in a regular grid
- Single function rainfall spray
- Matching square arm projecting 360mm from the finished wall on a 62mm square flange
- 1/2 inch BSP swivel connector, so the spray angle can be adjusted
Slide Rail Kit Features
- 685mm rail, projecting just 65mm from the wall
- Handset slides and locks at any height along the bar
- Single function square pencil handset with a flat, easy clean face
- 1500mm flexible shower hose
- Wall outlet elbow included, connecting the kit straight to the concealed valve
- Brass and ABS construction
- 3 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts
Important Information
- This is a two-outlet shower valve designed for two accessories only (both are included).
